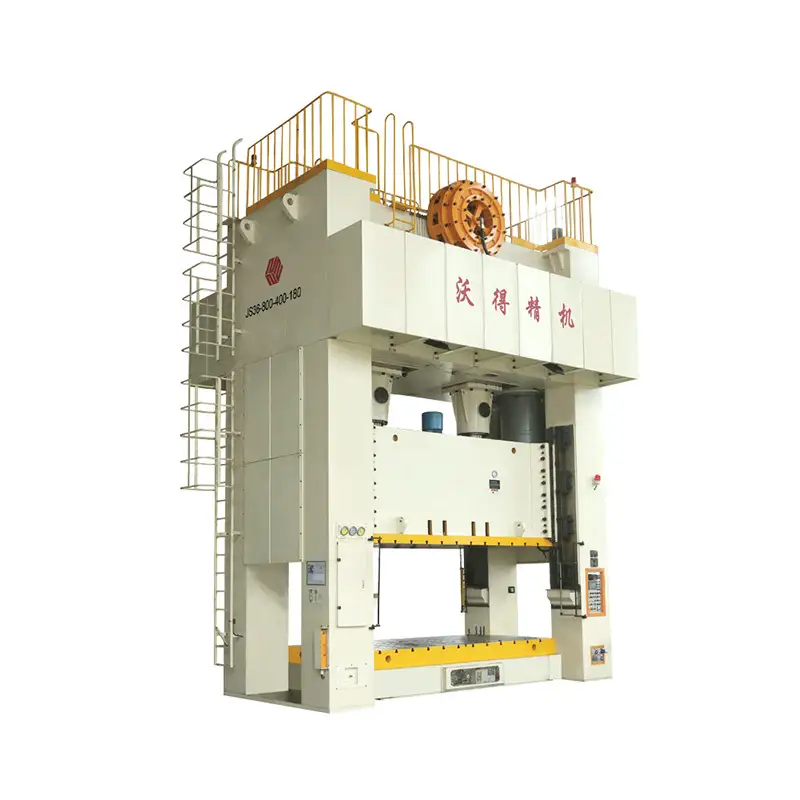

    JS36 Straight Side Power Press

    JS36 straight side power press(press machine,punching press,mechanical press),capacity ranges from 250 ton to 2000 ton. The press adopts eccentric gear transmission system with longer stroke length and more power energy, most suitable for car body parts stamping.

    The press can be disassembled as crown, slide, columns and bolster which are fixed with tie rods and nuts. Big table and customized table size, shut height, stroke length are widely conform to progressive die stamping and big sheet parts stamping process

    JS36 Straight Side h type Power Press 2

    SPECIFICATION

    ItemUnitJS36-250JS36-315JS36-400JS36-500JS36-630JS36-800JS36-1000
    Nominal capacityKN25003150400050006300800010000
    Stroke under nominal forcemm13131313131313
    Slide stroke lengthmm400400400500500500500
    Stroke speedtimes/min16-2516-2513-2013-2013-1810-1610-16
    Max. die shut heightmm60070080080090010001100
    Die shut height adjustmentmm250250300350400400400
    Slide bottom sizeL-Rmm2500280028003200350036004200
    F-Bmm1300140015001600160018001800
    Size of worktableL-Rmm2500280028003200350036004200
    F-Bmm1300140015001600160018001800
    Power of electric motorKW303745557590110
    Height above floormm6700710073007700820086009200

    CUSTOMER GROUPS

    factories, manufacturing plants, such as auto parts manufacturers, household appliances such as air conditioners, refrigerators, washing machines, dishes, kitchen sinks, motorcycle parts manufacturers, chain manufacturers, computer electronics manufacturers, etc.

    Contact Us

    CLOSE TYPE H FRAME BODY

    The steel welded structure is heat treatment and ball blasting to release the welding stress. The press body can be disassembled to four parts: crown, bolster, slide and columns which are fixed by tie rod bolts and nuts.

    It is better to produce press according to customers' special specifications cause of this structure design. Seller will send engineer to buyer's factory for installation service. Foundation drawings will be sent to buyer before shipment.All the body parts are machined by PAMA machine center. Just need to fix the part on the machine table and all the surfaces will be finished machining in one time.High accuracy lengthened slide guides are fixed on the columns. The guides can be fine adjust by bolts to get better parallelism and squareness.

    JS36 Straight Side h type Power Press 3

    ECCENTRIC GEAR TRANSMISSION

    Two big eccentric gears with link rods and guide pillars. Eccentric gear transmission system gives the press bigger stroke length than crank type press. Guide pillars and bushes ensure higher precession. All the gears are strenghtened and grinding, lower noise and longer service life.

    Power from the motor to the clutch. The two eccentric gears are connected with the clutch drive gear with a middle gear. Thress stages transmission make it more stable.

    JS36 Straight Side h type Power Press 4

    SEPARATE DRY TYPE CLUTCH AND BRAKE

    Self-produced dry type clutch and brake, adpots high quality clutch blocks. The clutch is under dynamic balance testing.Clutch working: dual-safety valve opens and the high pressure air goes inside the cylinder, moves the brake block away and press the cluch block to work. Then flywheel shaft will rotate with the flywheel.

    Brake working: dual-safety valve closes and the high pressure air goes out.The brake blocks will press on the brake body under the pressure of the springs. Thus the brake works and stops the flywheel.

    JS36 Straight Side h type Power Press 5

    OPTIONAL AIR CUSHION AND MOVABLE TABLE

    Full air type cushion is optional. Stroke adjustable and lock function are available too.

    Movable table is optional, front move, left to right move and T type move are available.

    Full air type cushion has the same capacity of pressing and ejection.Independ air tank for cushion ensures the variation of air pressure no less than 10%.
