WORLD simple hydraulic press factory longer service life

Company Advantages
1. With advanced and sophisticated production technique, WORLD is perfect in every detail. The clearance between connecting rod and slider has been eliminated to reduce force component impact and abrasion
2. This product can flexibly adapt to the changing working requirements. It can meet the specific needs and workload. Its simple design which has only a few moving parts helps cut maintenance costs
3. This product has high performance and stable quality. This product is designed for the really tough jobs that require high production, high tonnage, or variable controls
4. This product has long service life, good performance, good quality and other competitive advantages. Fabricated by heat treatment, its steel welded body has high rigidity

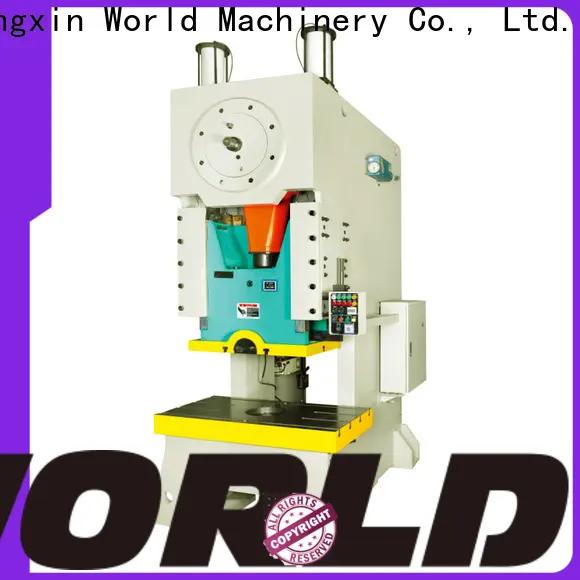

JH21-63L 63 Ton Stroke Adjustable Punching Machines

                                                              Specification List:

Model				JH21-63L
Capacity			kN	630
Nominal Stroke			mm	4
Slide Stroke			mm	10-150
SPM	Fixed		min-1	70
	Variable		min-1	60-80
Max. Die Height			mm	300
Die Height Adjustment			mm	80
Throat Depth			mm	300
Between Columns			mm	620
Bolster		LR	mm	900
		FB	mm	580
		Thickness	mm	110
Bolster Opening			mm	φ200×40
(Up Hole Dia.×Depth×Low Hole Dia.)				×φ180
Slide Area		LR	mm	680
		FB	mm	400
Shank Hole		Dia.	mm	φ50
		Depth	mm	80
Main Motor Power			kW	7.5
Dimensions		FB	mm	1680
		LR	mm	1260
		H	mm	3050
Net Weight			kg	6500

Company Features
1. Shanghai Yingxin World Machinery Co., Ltd. is one of the most dynamic simple hydraulic press industry groups in China.
2. Good shape of unique and cool of power press machine working pdf will bring you a visual feast.
3. Shanghai Yingxin World Machinery Co., Ltd. will concentrate on the needs of every customer. Ask online!
