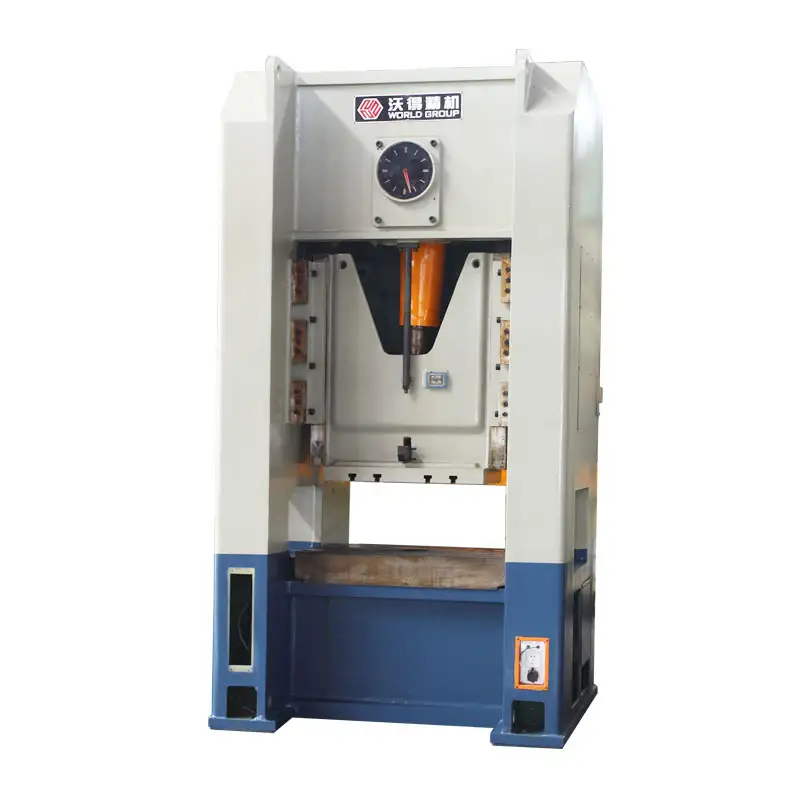

JW31-200 Ton Single Piont Pneumatic Die Punching Machine

JW31 H frame single crank power press is applicable to light, thin material, for single, and progressive die application in blanking, piercing, bending, forming, interlink with ROT line or transfer unit. High rigidity frame, applications suitable for various kinds of stamping works. The press capacity is from 160ton to 630ton. Slide guide 8 faces for higher precision.

PRODUCT SPECIFICATION

WORLD

JW31-200 Ton Single Piont Pneumatic Die Punching Machine 3

Steel welded body, tempering treatment, high rigidity, accuracy and stability.
Cross located crankshaft, compact structure.
The crankshaft undergoes grinding treatment after high frequency quenching.
The crankshaft undergoes grinding treatment after high frequency quenching.

PLC control and imported safety dual valve.
Pneumatic dual balance cylinder, which balances the slide block and ounch weight to reduce noise and impact.
Wet clutch and hydraulic overload protected pump.
Both auto grease lubrication system and manual thin oil lubrication system.

ITEM		CODE	UNIT	JW31-200
Nominal Capacity		Pe	KN	2000
Slide Stroke		s	mm	200
Slide Stroke Speed	Fixed	n	spm	35
Slide Stroke Speed	Variable	n	spm	25-45
Max. Die Shut Height		H2	mm	450
Die Shut Height Adjustment		t	mm	110
Side Window Size	F-B	E	mm	750
Side Window Size	Height	F	mm	420
Distance Between Uprights		G	mm	1200
Table Size	F-B	D	mm	750
	L-R	C	mm	1100
	Thickness	H3	mm	180
Table Hole Diameter			mm	200
Slide Bottom Size	F-B	b	mm	700
Slide Bottom Size	L-R	a	mm	850
Table Surface Height		H1	mm	1115
Overall Dimensions	F-B	A	mm	2300
	L-R	B	mm	2000
	Height	H	mm	4200
Motor Power			KW	18.5
Weight(approximate)			kg	22000

DETAILS INTRODUCTION

WORLD

JW31-200 Ton Single Piont Pneumatic Die Punching Machine 4

H Frame Body With Rigitdity

JW31 straight side press machine uses a strong H frame body.The press body is steel weldedwith high quality steel plates by carbon dioxide arc welding. After welding, all the weld seams must pass the examination of ultrasonic inspection. The top transmission gearbox is tested by oil bath to avoid any oil leak.

JW31-200 Ton Single Piont Pneumatic Die Punching Machine 5

Wet Type Pneumatic Clutch and Brake

Wet type pneumatic clutch with imported clutch disc.NOK seals, lower noise and maintenance cost, longer service life.Press with pneumatic wet clutch can work as continuous, inches or single stroke. more choices for operators.

JW31-200 Ton Single Piont Pneumatic Die Punching Machine 6

Hydraulic Overload Protected Pump

The press is standard equipped with Japanese SHOWA hydraulic overload pump. Normallythe system is set as 110% of the nominal capacity.The press will stop immediately once it is overload than 110% to protect both the press and the die.

JW31-200 Ton Single Piont Pneumatic Die Punching Machine 7

PLC Control with HMI

PLC central control system makes the press easily operation and inspection. HMI has functions of system setting, I/O monitor counter and preset counter. The operator can set the lubrication frequency by the HMI according to the working time or working stroke times.

JW31-200 Ton Single Piont Pneumatic Die Punching Machine 8

PLC control system

JW31-200 Ton Single Piont Pneumatic Die Punching Machine 9

Siemens Motor

JW31-200 Ton Single Piont Pneumatic Die Punching Machine 10

Schneider/Siemens Electric Parts
