WORLD second hand power press machine price Suppliers at discount

Company Advantages
1. The design of WORLD is created with care. It is defined as the use of imagination, scientific principles, and engineering techniques. The product has a self-lubricating function
2. The product, available at most economical price, is widely used in the market. Fabricated by heat treatment, its steel welded body has high rigidity
3. This product is safe to use. All its circuits are exquisitely designed. They include the main circuit, the control circuit, signal circuit, and other local circuits. The ball bearing has high wear resistance, avoiding generating big gear noise due to abrasion
4. This product is attracting attention due to its durability. It passes the durability test under extreme temperature (hot or cold), environmental pollution, excessive pressure, flow, speed, and load. Its double-hand control buttons give a safety guarantee for the operator
5. This product is not susceptible to the adverse effects of environmental factors. It has been tested in a variety of environments including wet, dry, hot, cold, vibration, acceleration, IP rating, UV light and more.

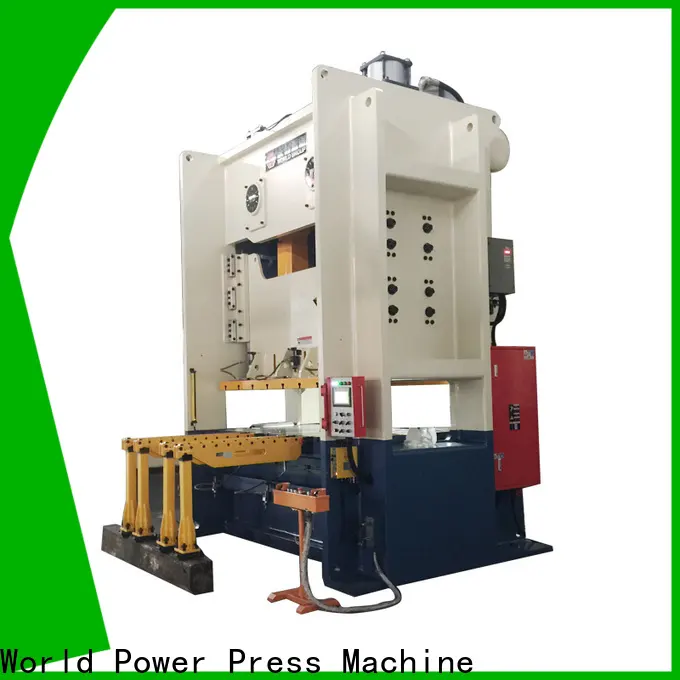

JW36 straight side power press uses H frame steel welded body which is under heat

treatment and ball ballasting treatment to release the welding stress. The body is just

 one time fixed on the CNC milling center table to machining all holes and surfaces.

In this way, the machining precision is much higher than normal process.The slide guides

 are four angles eight surfaces type and the gap can be adjusted on both front to rear

 side and left to right side. Precision is already ensured during machining and just need

to fine adjustment when installation or future maintenance.

Item		Code	Unit	JW36-110	JW36-160	JW36-200	JW36-250
Nominal Capacity			kn	1100	1600	2000	2500
Slide Stroke Length		S	mm	180	200	250	280
Slide Stroke Speed	Fixed		spm	50	45	35	30
	Variable (Optional)		spm	35-55	35-55	25-40	20-35
Max. Die Shut Height		H2	mm	400	450	500	550
Die Shut Height Adjustment		t	mm	90	100	110	120
Side Window Size	F-B	E	mm	650	800	900	950
	Height	F	mm	350	400	450	460
Distance Between Uprights		G	mm	1750	1900	2290	2570
Table Size	F-B	D	mm	700	760	900	1000
	L-R	C	mm	1650	1800	2200	2500
	Thickness	H3	mm	140	150	170	180
Slide Bottom Size	F-B	b	mm	600	700	800	900
	L-R	a	mm	1350	1500	1900	2200
Table Surface Height		H1	mm	1035	1035	1135	1235
Overall Dimensions	F-B	A	mm	2050	2400	2650	2900
	L-R	B	mm	2400	2650	3150	3450
	Height	H	mm	3450	3950	4280	4800
Motor Power			kw	11	18.5	22	30
Weight (Approximate)			kg	18000	22000	33000	42000

Company Features
1. There are a variety of second hand power press machine price in Shanghai Yingxin World Machinery Co., Ltd. to be chosen from.
2. Our QC team has made great contributions to the improving quality of 50 ton power press machine .
3. We want to bring high-quality products and services to our customers. We will address the challenges of a changing market quickly and never compromise on quality.
