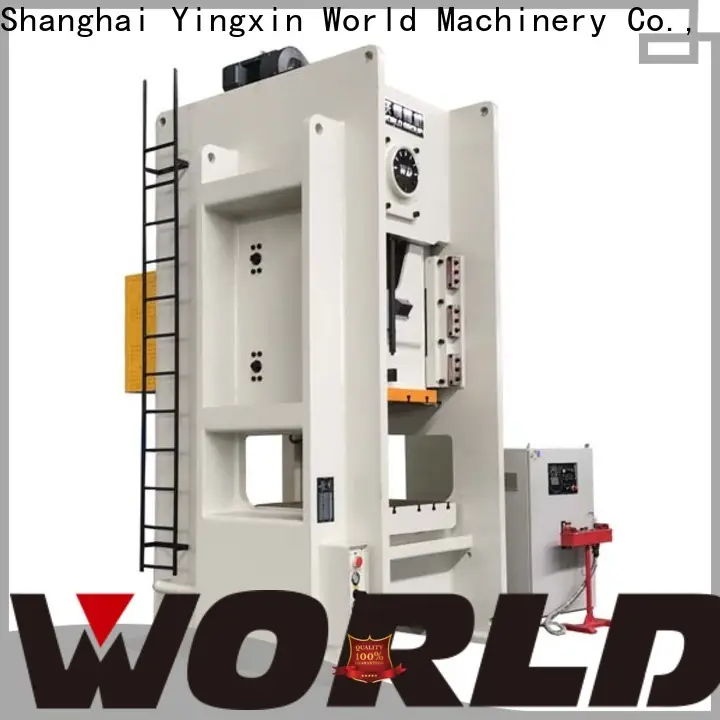

WORLD press machine details high-Supply for customization

Company Advantages
1. The production of WORLD follow the strict standards of lean production. The product is distinguished by low electricity consumption
2. The marketing and service network of Shanghai Yingxin World Machinery Co., Ltd. basically covers the national markets. Its simple design which has only a few moving parts helps cut maintenance costs
3. Our press machine details is durable and beautiful.
4. press machine details is widely used as it has the property of long service life and . Its pressure, speed, and operation mode can be adjusted based on needs
5. has good performance and can be manufactured conveniently, it is a press machine details which is applied most extensively. The product will stop immediately once it is overload than 110% to protect both the press and the die

Item		Code	Unit	JW31-160	JW31-200	JW31-250
Nominal Capacity		Pe	kn	1600	2000	2500
Slide Stroke		s	mm	180	200	220
Slide Stroke Speed	Fixed	n	spm	45	35	30
	Variable (Optional)	n	spm	35-55	35-55	20-35
Max. Die Shut Height		H2	mm	400	450	500
Die Shut Height Adjustment		t	mm	110	110	120
Side Window Size	F-B	E	mm	650	750	800
	Height	F	mm	350	420	430
Distance Between Uprights		G	mm	1100	1200	1300
Table Size	F-B	D	mm	650	750	800
	L-R	C	mm	1000	1100	1200
	Thickness	H3	mm	165	180	190
Table Hole Diameter			mm	180	200	200
Slide Bottom Size	F-B	b	mm	600	700	750
	L-R	a	mm	750	850	950
Table Surface Height		H1	mm	1005	1115	1205
Overall Dimensions	F-B	A	mm	2200	2300	2500
	L-R	B	mm	1780	2000	2050
	Height	H	mm	3800	4200	4500
Motor Power			kw	15	18.5	22
Weight (Approximate)			kg	16000	22000	27500

Company Features
1. With the superiority of quality, Shanghai Yingxin World Machinery Co., Ltd. wins a large market share for press machine details . Our company has professional designers. Through their experience, they can put together physics and materials science to make products with the best performance.
2. Our company has well-trained workers. They have a diverse skill set with a wide base of skills that they can apply to a particular task.
3. The company has an outstanding R&D team. The R&D technicians have a wealth of industry know-how and experience in the evaluation of new technologies, rapid prototyping, innovative solutions development, and so forth. Adhering to the concept of sustainable development, we uphold this style, which is our responsibility to start an environment-friendly, clean, acceptable company and achieve long-term success.
