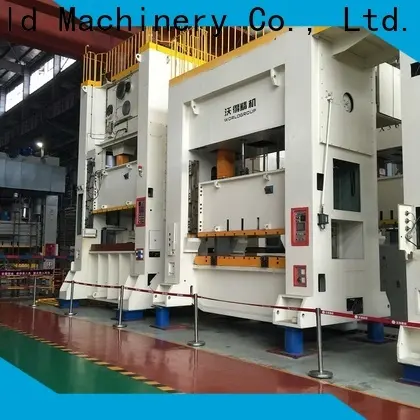

WORLD power press mechanism high-Supply for customization

Company Advantages
1. Excellent craftsmanship: WORLD is crafted with excellent craftsmanship which is a result of talents and skills. Its superior craftsmanship makes it high quality. Processed by sandblasting, it has enhanced fatigue resistance
2. The product is vital for many industries. It plays an important role in increasing productivity and cutting labor costs for manufacturers. Fabricated by heat treatment, its steel welded body has high rigidity
3. Whether incoming detection, production process supervision or finished product inspection, the production is done with the most serious and responsible attitude. Its top oil house has been tested by an oil bath to guarantee no leaking

Item		JX36-400	JX36-500	JX36-630	JX36-800	JX36-1000
Nominal Capacity	kn	400	5000	6300	8000	10000
Rated Tonnage Point	mm	9	12	12	12	12
Stoke Length	mm	300	300	350	350	400
Stroke Speed	spm	20-35	20-35	20-30	15-25	15-25
Max. Die Shut Height	mm	650	650	700	800	900
Die Shut Height Adjustment	mm	200	200	250	250	250
Table Size (FBxLR)	mm	1300×3000	1500×3000	1500×3600	2000×4000	2000×4000
Table Thickness	mm	220	220	250	250	250
Slide Bottom Size (FB-LR)	mm	1300×3000	1500×3000	1500×3600	2000×4000	2000×4000
Window Opening (FBxH)	mm	1000×650	1100×650	1200×700	1600×800	1600×900
Table Height	mm	710	710	710	710	710
Motor Power	kw	45	55	75	75	90
Overall Dimensions (LxWxH)	mm		3330x4650x 7250	3800x5400x 7700	4200x6150x 9200	4600x6150x 9900
Approximate Weight	t	80	90	120	150	190

Company Features
1. The factory creates a system of industrial and commercial standards for the production and provides specifications for products, services, and systems.
2. Shanghai Yingxin World Machinery Co., Ltd. will grasp customer needs and enhance brand value. Check it!
