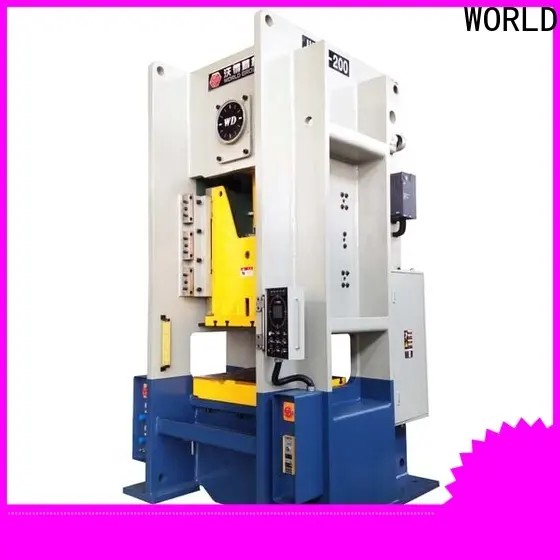

WORLD power press cutting machine easy-operated for customization

Company Advantages
1. The quality of WORLD complies with the standards in catering facilities industry. It has to go through the tests such as heavy metal content required by the Food Regulatory Authority. It comes with a wide range of electric motor powers
2. The product adapts to market need and is widely used at home and abroad. Adopting the hydraulic system, it needs little maintenance
3. The product meets the requirements of testing after many time trials. The product is quiet during the operation

Item		Code	Unit	JW31-160	JW31-200	JW31-250
Nominal Capacity		Pe	kn	1600	2000	2500
Slide Stroke		s	mm	180	200	220
Slide Stroke Speed	Fixed	n	spm	45	35	30
	Variable (Optional)	n	spm	35-55	35-55	20-35
Max. Die Shut Height		H2	mm	400	450	500
Die Shut Height Adjustment		t	mm	110	110	120
Side Window Size	F-B	E	mm	650	750	800
	Height	F	mm	350	420	430
Distance Between Uprights		G	mm	1100	1200	1300
Table Size	F-B	D	mm	650	750	800
	L-R	C	mm	1000	1100	1200
	Thickness	H3	mm	165	180	190
Table Hole Diameter			mm	180	200	200
Slide Bottom Size	F-B	b	mm	600	700	750
	L-R	a	mm	750	850	950
Table Surface Height		H1	mm	1005	1115	1205
Overall Dimensions	F-B	A	mm	2200	2300	2500
	L-R	B	mm	1780	2000	2050
	Height	H	mm	3800	4200	4500
Motor Power			kw	15	18.5	22
Weight (Approximate)			kg	16000	22000	27500

Item		Code	Unit	JW31-315	JW31-400	JW31-500
Nominal Capacity		Pe	kn	3150	4000	5000
Slide Stroke		s	mm	220	250	250
Slide Stroke Speed	Fixed	n	spm	30	25	20
	Variable (Optional)	n	spm	20-35	20-30	15-25
Max. Die Shut Height		H2	mm	550	600	650
Die Shut Height Adjustment		t	mm	120	120	120
Side Window Size	F-B	E	mm	850	900	1000
	Height	F	mm	480	520	650
Distance Between Uprights		G	mm	1350	1450	1650
Table Size	F-B	D	mm	850	900	1000
	L-R	C	mm	1250	1350	1500
	Thickness	H3	mm	190	200	220
Table Hole Diameter			mm	220	220	220
Slide Bottom Size	F-B	b	mm	800	850	950
	L-R	a	mm	1000	1100	1250
Table Surface Height		H1	mm	1215	1225	1225
Overall Dimensions	F-B	A	mm	2600	2700	3100
	L-R	B	mm	2200	2370	2600
	Height	H	mm	4550	4900	5400
Motor Power			kw	30	37	45
Weight (Approximate)			kg	30000	36500	47500

Company Features
1. While developing the scale of market, WORLD has been always expanding the range of exported power press cutting machine . Shanghai Yingxin World Machinery Co., Ltd. has strong economic strength and advanced production equipment.
2. Shanghai Yingxin World Machinery Co., Ltd. has used its R&D achievements of independent intellectual property rights to create a new generation of power press feeder .
3. Shanghai Yingxin World Machinery Co., Ltd. has advanced production processes and modern management mode. We strive for sustainable development. The approach we have taken targets improvement in seven key areas: materials, packaging, energy, waste, water, social impacts, and innovation.
