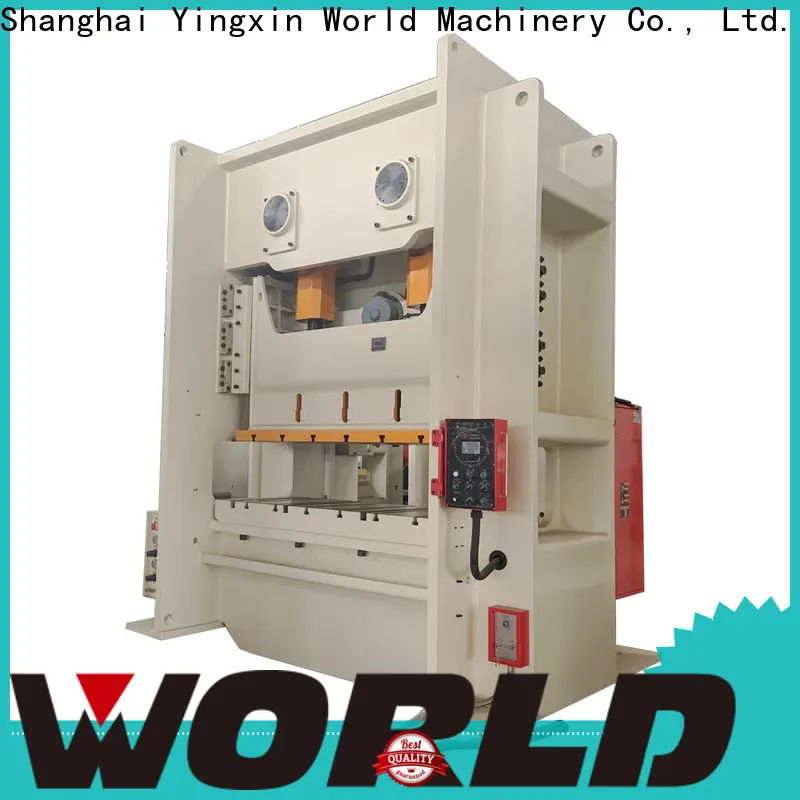

WORLD power press brake factory at discount

Place of Origin:

Jiangsu China

Payment:

L/C, T/T

MOQ:

Model:

JW36-160

Brand:

WORLD

Inquiry

Supply Ability

1000 Unit/Units per Year

Start Port

Shanghai China

Material

Metal

Delivery Time

70 days

Certification

CE, CCC

Availability

OEM

Item		Code	Unit	JW36-110	JW36-160	JW36-200	JW36-250
Nominal Capacity			kn	1100	1600	2000	2500
Slide Stroke Length		S	mm	180	200	250	280
Slide Stroke Speed	Fixed		spm	50	45	35	30
Slide Stroke Speed	Variable (Optional)		spm	35-55	35-55	25-40	20-35
Max. Die Shut Height		H2	mm	400	450	500	550
Die Shut Height Adjustment		t	mm	90	100	110	120
Side Window Size	F-B	E	mm	650	800	900	950
Side Window Size	Height	F	mm	350	400	450	460
Distance Between Uprights		G	mm	1750	1900	2290	2570
Table Size	F-B	D	mm	700	760	900	1000
	L-R	C	mm	1650	1800	2200	2500
	Thickness	H3	mm	140	150	170	180
Slide Bottom Size	F-B	b	mm	600	700	800	900
Slide Bottom Size	L-R	a	mm	1350	1500	1900	2200
Table Surface Height		H1	mm	1035	1035	1135	1235
Overall Dimensions	F-B	A	mm	2050	2400	2650	2900
	L-R	B	mm	2400	2650	3150	3450
	Height	H	mm	3450	3950	4280	4800
Motor Power			kw	11	18.5	22	30
Weight (Approximate)			kg	18000	22000	33000	42000

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
