WORLD Latest power press industrial manufacturers for customization

Place of Origin:
Jiangsu China
Payment:
L/C, T/T
MOQ:
1
Model:
JW36-200
Brand:
WORLD
Inquiry
Supply Ability
1000 Unit/Units per Year
Start Port
Shanghai China
Material
Metal
Delivery Time
75 days
Certification
CE, CCC
Availability
OEM








Item
Code
Unit
JW36-110
JW36-160
JW36-200
JW36-250
Nominal Capacity

kn
1100
1600
2000
2500
Slide Stroke Length
S
mm
180
200
250
280
Slide Stroke Speed
Fixed

spm
50
45
35
30
Variable (Optional)

spm
35-55
35-55
25-40
20-35
Max. Die Shut Height
H2
mm
400
450
500
550
Die Shut Height Adjustment
t
mm
90
100
110
120
Side Window Size
F-B
E
mm
650
800
900
950
Height
F
mm
350
400
450
460
Distance Between Uprights
G
mm
1750
1900
2290
2570
Table Size
F-B
D
mm
700
760
900
1000
L-R
C
mm
1650
1800
2200
2500
Thickness
H3
mm
140
150
170
180
Slide Bottom Size
F-B
b
mm
600
700
800
900
L-R
a
mm
1350
1500
1900
2200
Table Surface Height
H1
mm
1035
1035
1135
1235
Overall Dimensions
F-B
A
mm
2050
2400
2650
2900
L-R
B
mm
2400
2650
3150
3450
Height
H
mm
3450
3950
4280
4800
Motor Power

kw
11
18.5
22
30
Weight (Approximate)

kg
18000
22000
33000
42000

                                                                                            Description:

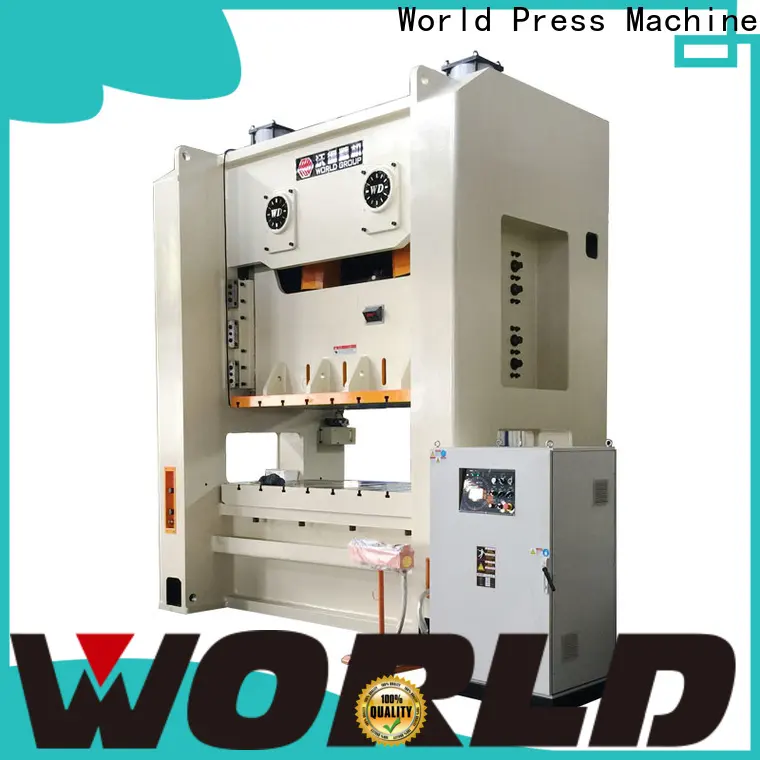

JW36 H frame double crank power press machine (mechancial press, press machine,punching machine,

stamping press), capacity from 110ton to 630ton, welded steel body, PLC control, wet clutch, hydraulic

overload protected, auto lubricated, touch screen control. Bigger table better for big sheet stamping and

progressive die stamping process. The press can work with NC feeder and transfer system for automatic

press line.


World group was established in 1988 as a private company in Danyang City, Jiangsu Province. World has

21 subsidiary companies totally. The main business is to produce and sell power press machines, agriculture

machines,construction machines,auto parts and garden tools.With 2016 sales and revenues of $3.692 billion,

World group is one of the TOP500 private companies in China and TOP100 companies in Jiangsu Province.

Now, World is one of the leading power press manufacturers, the biggest combine harvester manufacturer ,

the biggest lawn mower manufacturer, and one of the main construction machines manufactures in China.
