WORLD Latest hydraulic wheel press Suppliers for drawing

Company Advantages
1. WORLD hydraulic wheel press is innovatively designed. It is carried out by our designers who make every element of this product to match any style of the kitchen or office. The designing and versatility of the product give users an advantage of moving its freely around the workplace
2. Shanghai Yingxin World Machinery Co., Ltd.'s global stocking warehouses and distribution networks help insure your product is available when you need it most. It is one of the most beneficial and convenient workshop machinery
3. The strict quality control of this product is the basis to ensure the quality.
4. The quality check team ensures that each detail of this product is in good condition. It has advantages in internal mechanical performance, such as smooth operation

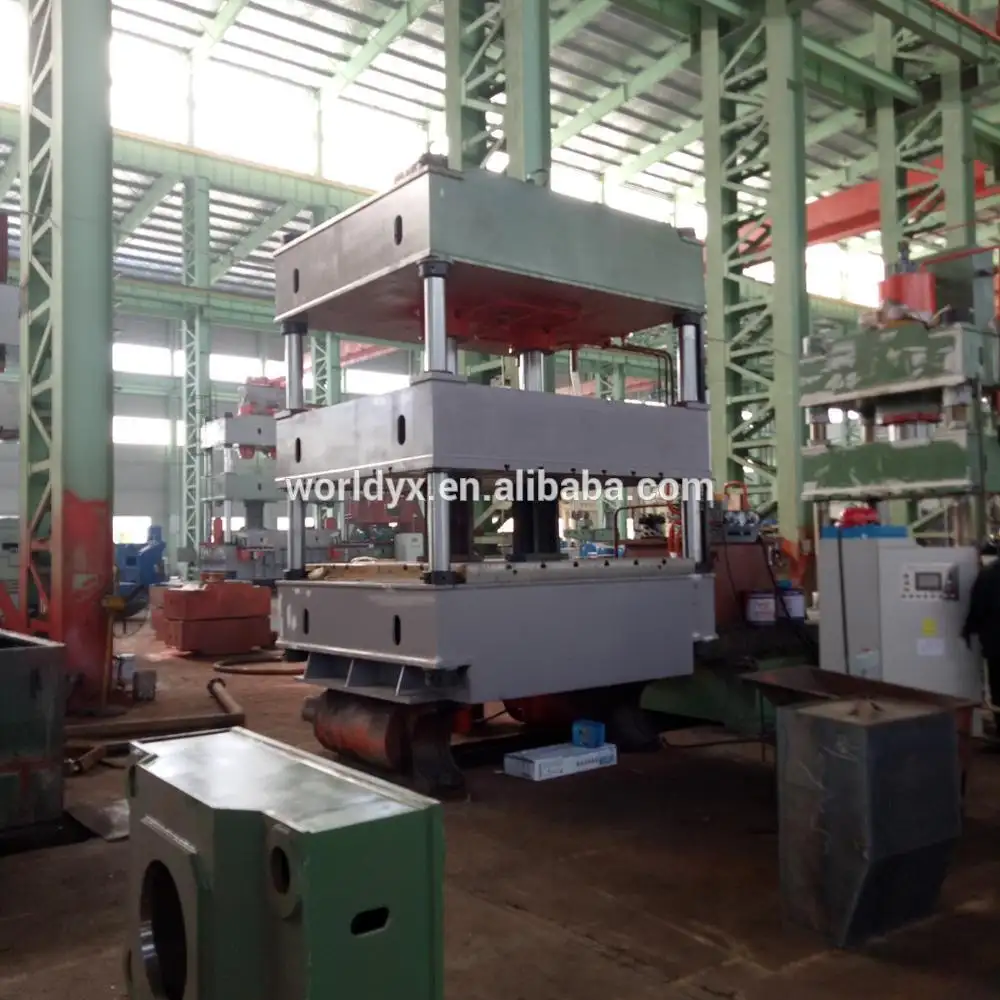

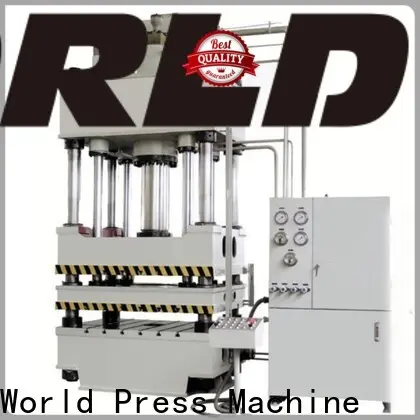

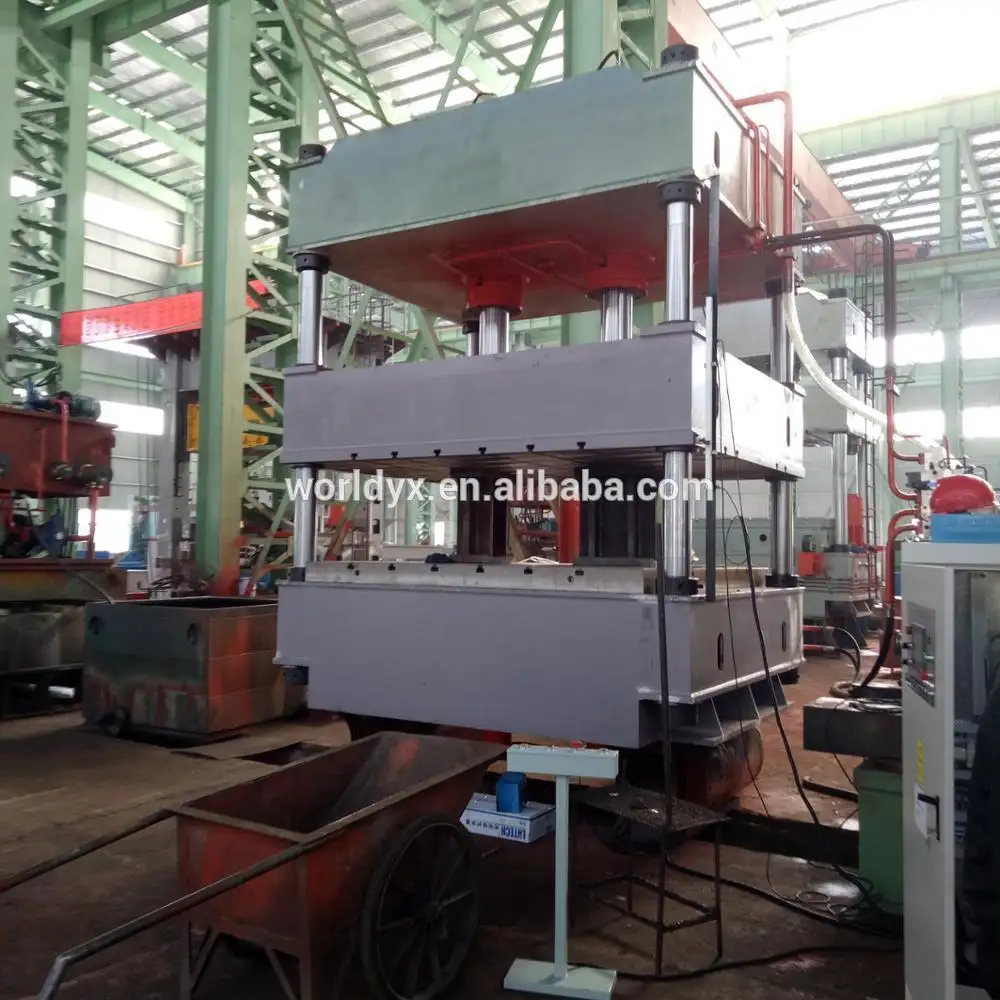

metal forming four columu 400 ton hydraulic press

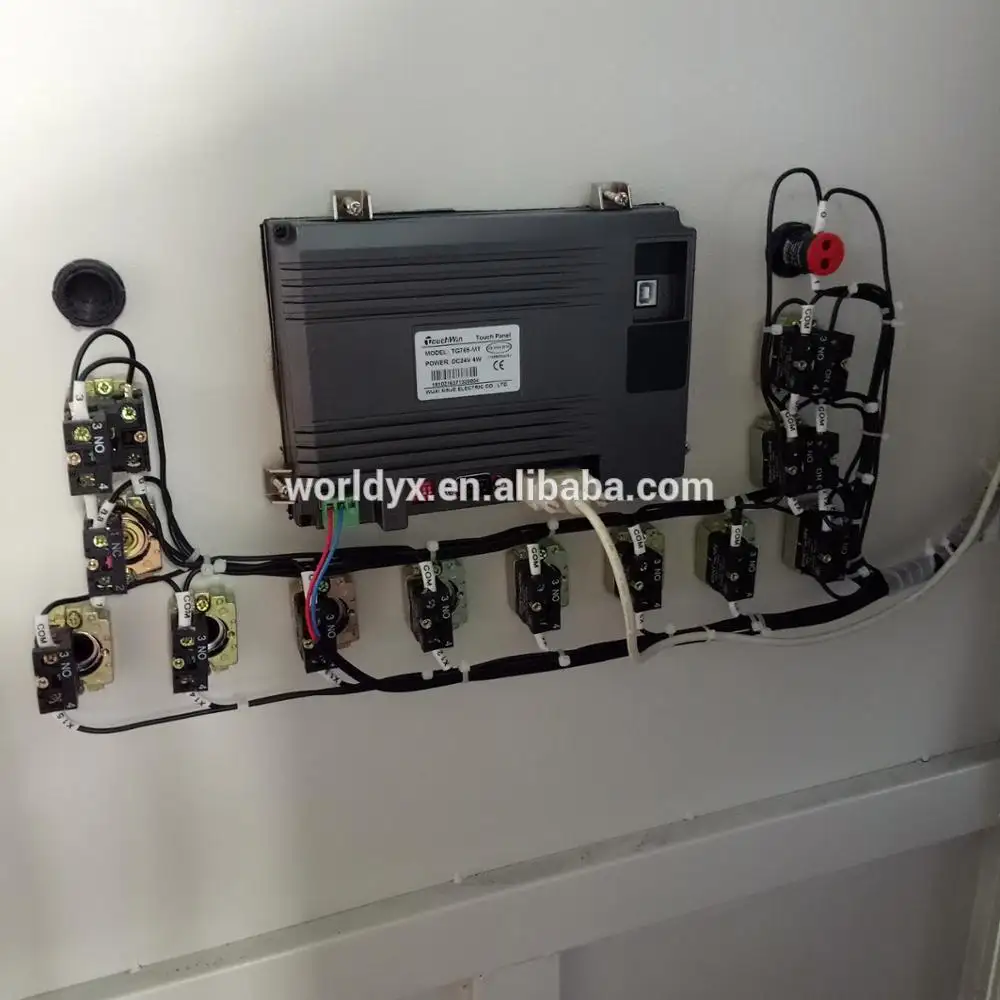

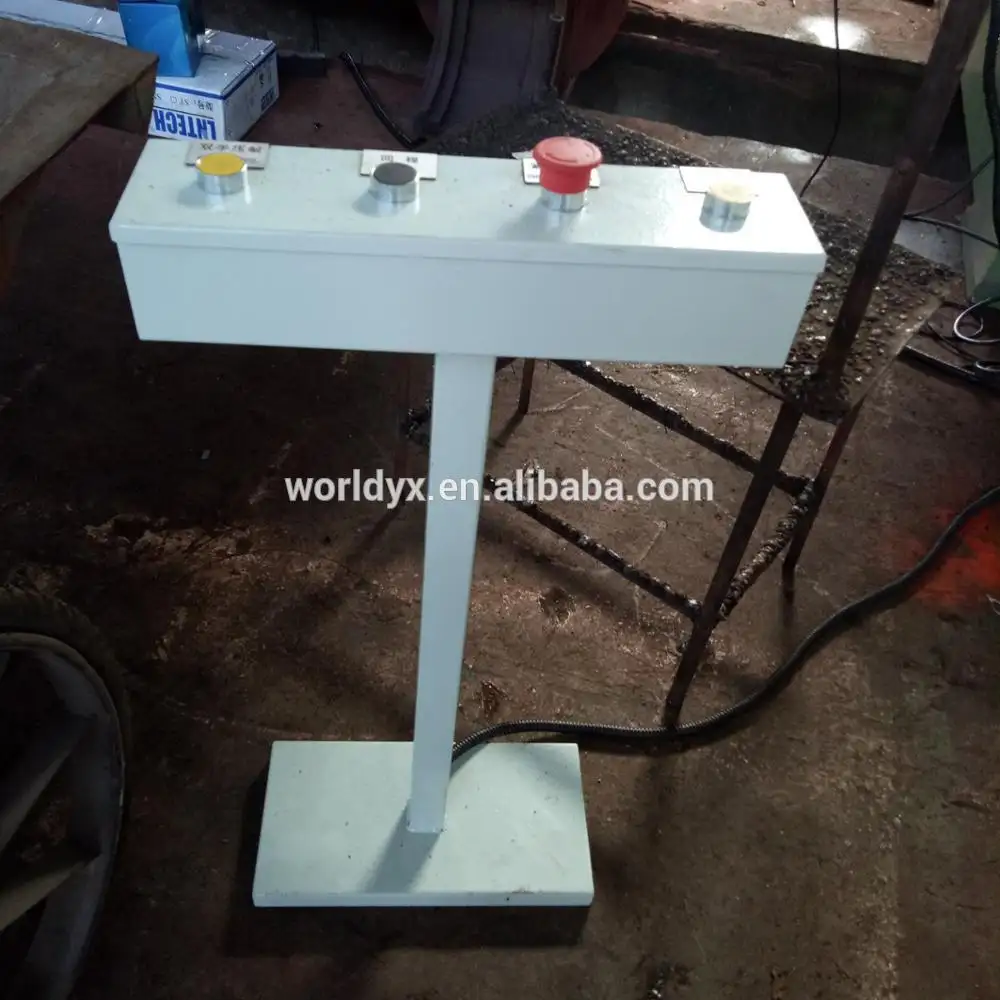

Four column hydraulic press is applicable for drawing, bending, flanging, cold extruding and blanking process for metal materials. It is also applicable for adjusting, press-in and forming process for powder and abrasive products, plastic and insulation materials. The hydraulic press adopts 3 beam and 4 column compact structure, simple, economic and practical. Adopting button common control with two operation modes: adjustment or two hand single cycle operation. Preset stroke forming or preset pressure forming process can be selected.

MODEL			YW27-200	YW27-315	YW27-400	YW27-400A	YW27-400B	YW27-500	YW27-630
Capacity		kN	2000	3150	2000	4000	4000	5000	6300
Hydraulic cushion capacity		kN	1200	1500	1500	2000	1000	1500	2000
Slide Stroke		mm	800	1000	1000	1200	500	1000	1500
Hydraulic cushion Stroke		mm	260	300	350	350	200	300	400
Max. Shut Height		mm	1200	1600	1500	2000	1100	1400	2000
Bolster movement distance		mm			2000	2400		1600	2700
Slide Speed	Idle Stroke	mm/s	220	200	200	250	180	220	200
	Pressing	mm/s	15-25	10-15	9-15	10-25	10-25	8-20	6-15
	Return	mm/s	160	150	150	150	120	160	150
Ejecting Speed	Eject	mm/s	60	60	60	60	60	80	80
	Return	mm/s	100	100	100	80	80	120	100
Bolster Size	LR	mm	1000	2500	2700	3000	1700	2000	4500
	FB	mm	1000	1600	1500	2000	1400	1400	2500

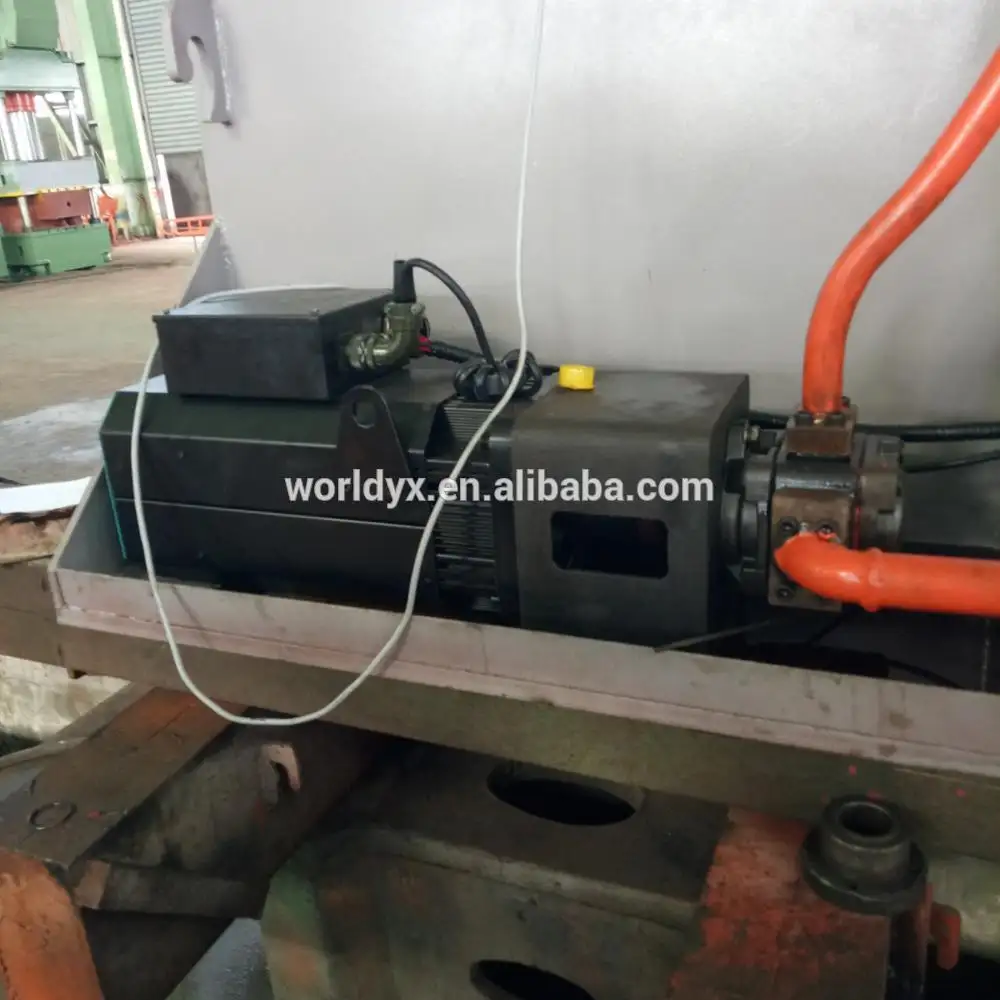

Main Motor Power		kW	15	22	44	44	44	44	67

World brand specializing in power press machine , hydraulic press machine , NC feeder . Such as the company has an excellent technology development team, team members have good professional basis and rich design experience, the team members including mechanical design engineer, engineer, electric control system of assembly and debugging engineer, after-sales service engineers, can provide customers with automation technology in the field of all kinds of application solutions .

Company Features
1. Shanghai Yingxin World Machinery Co., Ltd. is one of the leading Chinese manufacturers of hydraulic wheel press . Our operations cover development, production, marketing and sales of relevant products. Shanghai Yingxin World Machinery Co., Ltd. is the first company that one can think of when they need high quality hydraulic forming press .
2. The traditional technology and modern technology are combined for the production of heated hydraulic press .

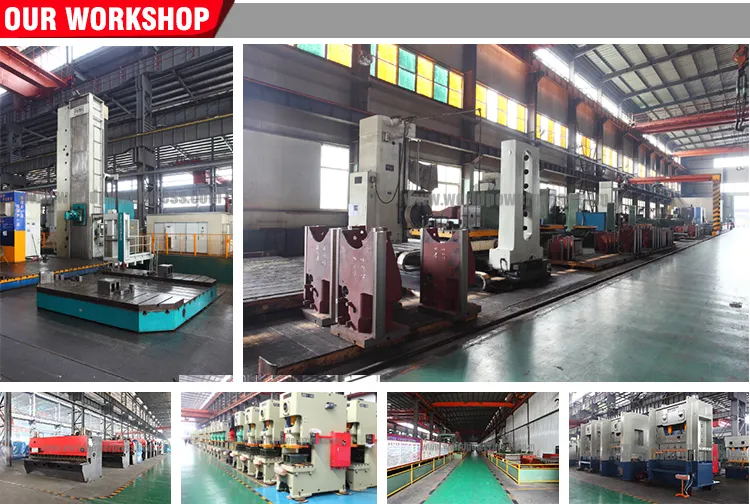

3. Shanghai Yingxin World Machinery Co., Ltd. has a park-like production base and a dedicated hydraulic press system machining facility. It is the tenet of automatic hydraulic press machine that accelerates the development of WORLD. Call now!
