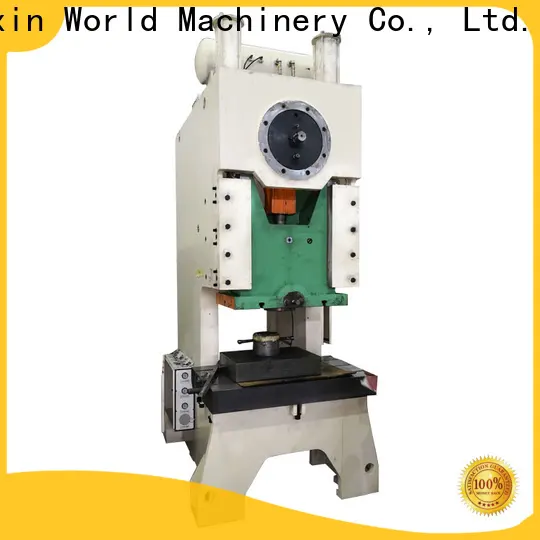

JH21-25L Stroke Variable Power Pressing Machine
Specification List
Model | JH21-25L | |||
Capacity | kN | 250 | ||
Nominal Stroke | mm | 3 | ||
Slide Stroke | mm | 10-110 | ||
SPM
| Fixed | min-1 | 100 | |
Variable | min-1 | 80-120 | ||
Max. Die Height | mm | 250 | ||
Die Height Adjustment | mm | 50 | ||
Throat Depth | mm | 210 | ||
Between Columns | mm | 450 | ||
Bolster | LR | mm | 700 | |
FB | mm | 400 | ||
Thickness | mm | 80 | ||
Bolster Opening | mm | φ170×20 | ||
(Up Hole Dia.×Depth×Low Hole Dia.) | ×φ150 | |||
Slide Area | LR | mm | 360 | |
FB | mm | 300 | ||
Shank Hole | Dia. | mm | φ40 | |
Depth | mm | 60 | ||
Main Motor Power | kW | 4 | ||
Dimensions | FB | mm | 1500 | |
LR | mm | 950 | ||
H | mm | 2650 | ||
Net Weight | kg | 3100 | ||
