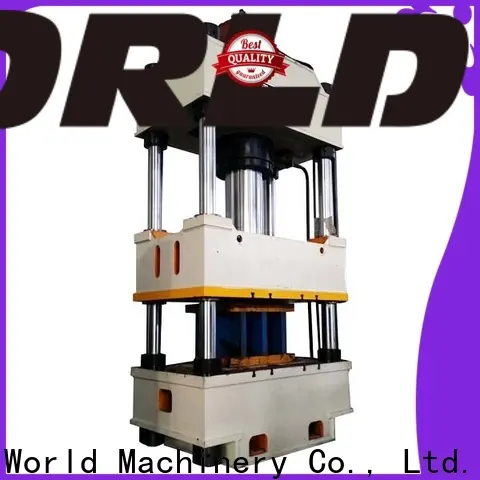

Four column hydraulic press is applicable for drawing, bending, flanging, cold extruding and blanking process for metal materials. It is also applicable for adjusting, press-in and forming process for powder and abrasive products, plastic and insulation materials. The hydraulic press adopts 3 beam and 4 column compact structure, simple, economic and practical. Adopting button common control with two operation modes: adjustment or two hand single cycle operation. Preset stroke forming or preset pressure forming process can be selected.
MODEL | YW27-200 | YW27-315 | YW27-400 | YW27-400A | YW27-400B | YW27-500 | YW27-630 | ||
Capacity | kN | 2000 | 3150 | 2000 | 4000 | 4000 | 5000 | 6300 | |
Hydraulic cushion capacity | kN | 1200 | 1500 | 1500 | 2000 | 1000 | 1500 | 2000 | |
Slide Stroke | mm | 800 | 1000 | 1000 | 1200 | 500 | 1000 | 1500 | |
Hydraulic cushion Stroke | mm | 260 | 300 | 350 | 350 | 200 | 300 | 400 | |
Max. Shut Height | mm | 1200 | 1600 | 1500 | 2000 | 1100 | 1400 | 2000 | |
Bolster movement distance | mm | 2000 | 2400 | 1600 | 2700 | ||||
Slide Speed | Idle Stroke | mm/s | 220 | 200 | 200 | 250 | 180 | 220 | 200 |
Pressing | mm/s | 15-25 | 10-15 | 9-15 | 10-25 | 10-25 | 8-20 | 6-15 | |
Return | mm/s | 160 | 150 | 150 | 150 | 120 | 160 | 150 | |
Ejecting Speed | Eject | mm/s | 60 | 60 | 60 | 60 | 60 | 80 | 80 |
Return | mm/s | 100 | 100 | 100 | 80 | 80 | 120 | 100 | |
Bolster Size | LR | mm | 1000 | 2500 | 2700 | 3000 | 1700 | 2000 | 4500 |
FB | mm | 1000 | 1600 | 1500 | 2000 | 1400 | 1400 | 2500 | |
Main Motor Power | kW | 15 | 22 | 44 | 44 | 44 | 44 | 67 |
