WORLD high-qualtiy power press types at discount

Company Advantages
1. WORLD power press types is developed with complicated electrical or electronic technologies. CNC technology, the microelectronic technique, and sensor technology have been adopted into its development by mechanical engineers. Processed by sandblasting, it has enhanced fatigue resistance
2. The main business of WORLD is to produce power press types with high quality. The product is distinguished by low electricity consumption
3. The product has the advantage of low-temperature resistance. When subjected to extremely low-temperature environments, it is not easy to become brittle or get frosted. Its welded steel body can withstand heavy industrial use

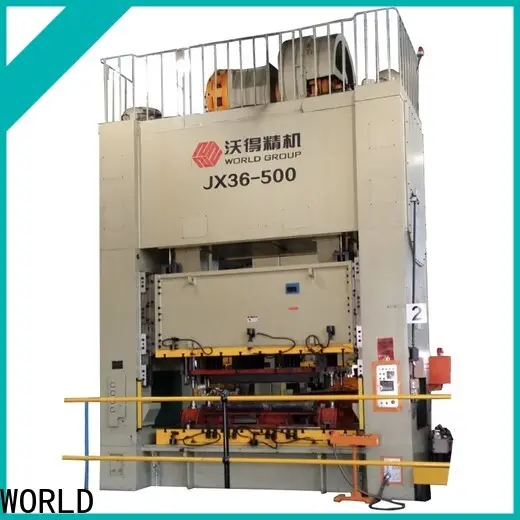

Item		JX36-400	JX36-500	JX36-630	JX36-800	JX36-1000
Nominal Capacity	kn	400	5000	6300	8000	10000
Rated Tonnage Point	mm	9	12	12	12	12
Stoke Length	mm	300	300	350	350	400
Stroke Speed	spm	20-35	20-35	20-30	15-25	15-25
Max. Die Shut Height	mm	650	650	700	800	900
Die Shut Height Adjustment	mm	200	200	250	250	250
Table Size (FBxLR)	mm	1300×3000	1500×3000	1500×3600	2000×4000	2000×4000
Table Thickness	mm	220	220	250	250	250
Slide Bottom Size (FB-LR)	mm	1300×3000	1500×3000	1500×3600	2000×4000	2000×4000
Window Opening (FBxH)	mm	1000×650	1100×650	1200×700	1600×800	1600×900
Table Height	mm	710	710	710	710	710
Motor Power	kw	45	55	75	75	90
Overall Dimensions (LxWxH)	mm		3330x4650x 7250	3800x5400x 7700	4200x6150x 9200	4600x6150x 9900
Approximate Weight	t	80	90	120	150	190

Company Features
1. The technology for power press types Shanghai Yingxin World Machinery Co., Ltd. mastered is advanced in China and even has approached internationally advanced status.
2. Shanghai Yingxin World Machinery Co., Ltd.'s ongoing service philosophy is mechanical press manufacturer . Ask online!
