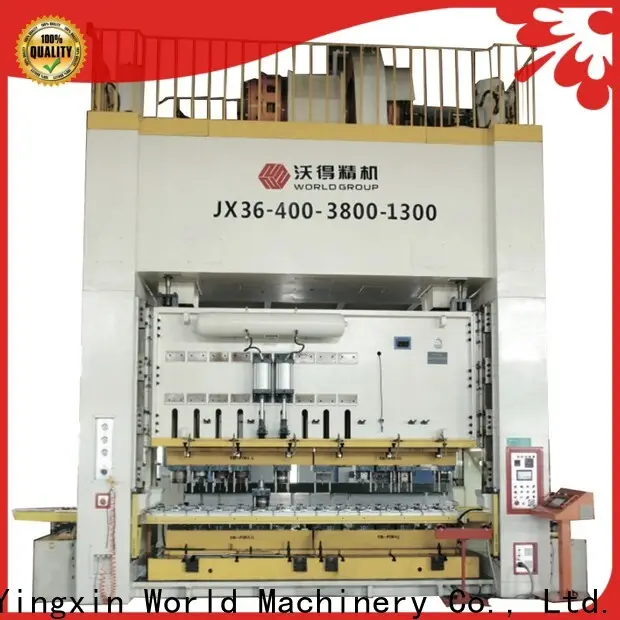

WORLD high-qualtiy manufacturer of power press manufacturers for wholesale

Place of Origin:

Jiangsu China

Payment:

L/C, T/T

MOQ:

Model:

JX36

Brand:

WORLD

Inquiry

Supply Ability

2000 Unit/Units per Year

Start Port

Shanghai China

Material

Metal

Delivery Time

70 days

Certification

CE, CCC

Availability

OEM

Item		JX36-400	JX36-500	JX36-630	JX36-800	JX36-1000
Nominal Capacity	kn	400	5000	6300	8000	10000
Rated Tonnage Point	mm	9	12	12	12	12
Stoke Length	mm	300	300	350	350	400
Stroke Speed	spm	20-35	20-35	20-30	15-25	15-25
Max. Die Shut Height	mm	650	650	700	800	900
Die Shut Height Adjustment	mm	200	200	250	250	250
Table Size (FBxLR)	mm	1300×3000	1500×3000	1500×3600	2000×4000	2000×4000
Table Thickness	mm	220	220	250	250	250
Slide Bottom Size (FB-LR)	mm	1300×3000	1500×3000	1500×3600	2000×4000	2000×4000
Window Opening (FBxH)	mm	1000×650	1100×650	1200×700	1600×800	1600×900
Table Height	mm	710	710	710	710	710
Motor Power	kw	45	55	75	75	90
Overall Dimensions (LxWxH)	mm		3330x4650x 7250	3800x5400x 7700	4200x6150x 9200	4600x6150x 9900
Approximate Weight	t	80	90	120	150	190

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
