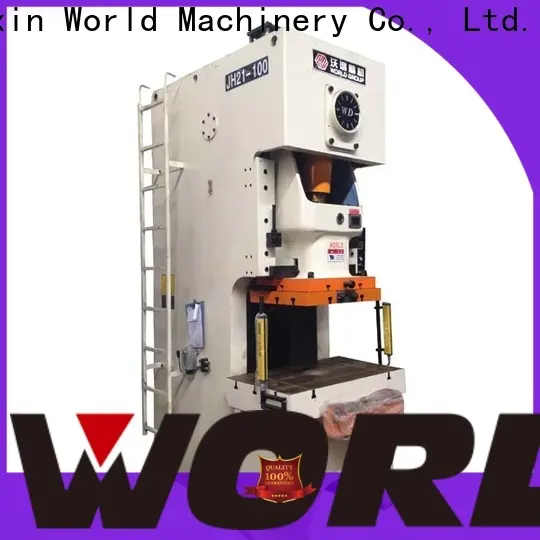

WORLD automatic power press machine price list manufacturers longer service life

Company Advantages
1. power press machine price list It is made of high-quality and environmentally friendly raw materials, and is manufactured with fine processing technology. It is fine in workmanship, high in quality, and reliable in quality. It is a correction stationery that integrates beauty, practicality, and environmental protection.
2. This product has been well recognized by the customers all around the world.
3. The product can last for a long time. With its full-shield design, it provides a better way to avoid the leakage problem and prevents its components from damage. The product is distinguished by low electricity consumption
4. The product features an easy operation. It has a relatively simple operating system combining a powerful processing flow and provides simple operation instruction. The product is equipped with Siemens main motor and Schneider electric components for further accuracy

Item		Code	Unit	JH21-25	JH21-45	JH21-60	JH21-80	JH21-100	JH21-125
Nominal Capacity		Pe	kn	250	450	600	800	1000	1250
Slide Stroke Length		S	mm	80	120	140	160	160	180
Slide Strokes	Fixed		spm	100	80	70	60	55	50
	Variable (optional)		spm	60-120	50-95	45-85	40-75	35-65	35-65
Max. Die Shut Height		H2	mm	250	270	300	320	335	350
Die Shut Height Adjustment		t	mm	50	60	70	80	90	90
Throat Depth		C1	mm	210	225	270	310	330	350
Distance Between Uprights		d1	mm	450	515	560	610	670	670
Slide Bottom Size	FB	b	mm	250	340	400	460	520	520
	LR	a	mm	360	410	480	540	620	620
Shank Hole Size	Diameter	d	mm	40	50	50	50	70	70
	Depth	I	mm	65	60	70	65	90	90
Table Size	FB	D	mm	400	440	520	600	640	680
	LR	C	mm	720	825	930	950	1060	1100
	Thickness	H3	mm	80	110	130	140	145	155
Table Hole Diameter		¢	mm	150	150	150	180	180	200
Overall Specs	FB	A	mm	1500	1585	1540	1765	2000	2040
	LR	B	mm	945	1075	1200	1200	1300	1320
	Height	H	mm	2120	2390	2570	2725	3010	3035
Motor Power			kw	3	5.5	5.5	7.5	7.5	11
Weight (approximate)			kg	2450	3550	5150	6450	8650	9550

1. The main body is welded with high quality steel plate. It will be heat treated and ball blasting treated to release the stress and improve the rigidity.

Company Features
1. There is no other companies like Shanghai Yingxin World Machinery Co., Ltd. to always keep the leader in the market of power press machine price list .
2. A sound management system has been established in Shanghai Yingxin World Machinery Co., Ltd..
3. Shanghai Yingxin World Machinery Co., Ltd. constantly optimize the management and service system to promote better development. Call!
