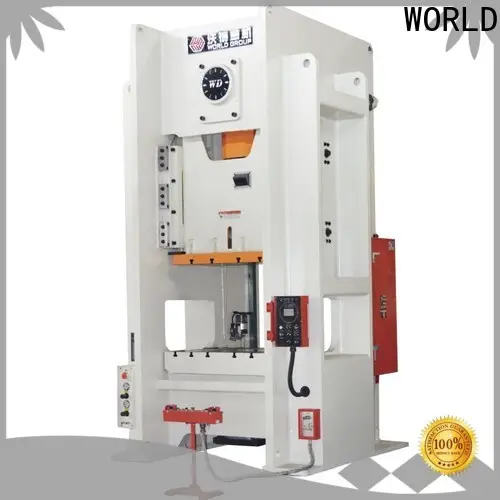

WORLD a frame hydraulic press at discount

Company Advantages
1. WORLD a frame hydraulic press is designed with consideration of all possible mechanisms. These mechanisms are aimed at helping the desired motion or the group of motions in this product. With a quality servo motor, it is highly efficient
2. This product dramatically helps manufacturers cut the time needed to finish the projects. It contributes a lot in improving production efficiency. The product is equipped with Siemens main motor and Schneider electric components for further accuracy
3. The product is able to maintain a clean appearance. It has a special coated surface which can effectively prevent adhesion of dust and oil smoke during operation. It is one of the most beneficial and convenient workshop machinery
4. The product has a durable construction. It is built to withstand great abuse, which extends its lifespan under harsh environments. Its simple design which has only a few moving parts helps cut maintenance costs

Item		Code	Unit	JW31-160	JW31-200	JW31-250
Nominal Capacity		Pe	kn	1600	2000	2500
Slide Stroke		s	mm	180	200	220
Slide Stroke Speed	Fixed	n	spm	45	35	30
	Variable (Optional)	n	spm	35-55	35-55	20-35
Max. Die Shut Height		H2	mm	400	450	500
Die Shut Height Adjustment		t	mm	110	110	120
Side Window Size	F-B	E	mm	650	750	800
	Height	F	mm	350	420	430
Distance Between Uprights		G	mm	1100	1200	1300
Table Size	F-B	D	mm	650	750	800
	L-R	C	mm	1000	1100	1200
	Thickness	H3	mm	165	180	190
Table Hole Diameter			mm	180	200	200
Slide Bottom Size	F-B	b	mm	600	700	750
	L-R	a	mm	750	850	950
Table Surface Height		H1	mm	1005	1115	1205
Overall Dimensions	F-B	A	mm	2200	2300	2500
	L-R	B	mm	1780	2000	2050
	Height	H	mm	3800	4200	4500
Motor Power			kw	15	18.5	22
Weight (Approximate)			kg	16000	22000	27500

Company Features
1. With large scaled factory and and professional production lines, Shanghai Yingxin World Machinery Co., Ltd. is regarded as a reliable supplier of a frame hydraulic press .
2. We have a wide range of testing machines. They are highly sensitive to help us test our products and ensure that we can meet, and in most cases exceed industry standards.
3. Shanghai Yingxin World Machinery Co., Ltd. has been holding the attitude that putting customers first during the business is important. Get quote!
