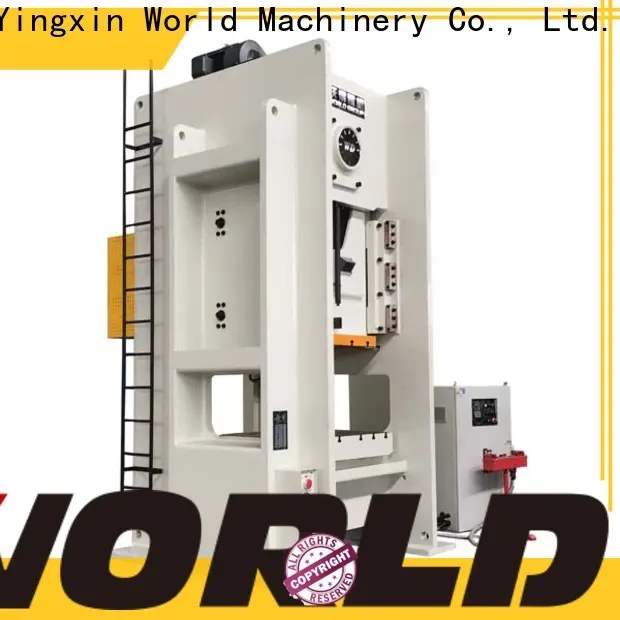

WORLD 100 ton power press price fast speed for customization

Company Advantages
1. WORLD 100 ton power press price is superior in raw materials: inferior raw materials are totally rejected into the factory. And the high quality raw materials are well accepted though they will increase the cost of production. The product is equipped with Siemens main motor and Schneider electric components for further accuracy
2. The product can bring great value to customers and has become a hot product in the market. The high-quality friction discs ensure its long service life
3. The strict internal quality control system guarantees the product to reach the international standards. The brake system enables it to stop at any point, especially for the emergency stop

Item		Code	Unit	JW31-160	JW31-200	JW31-250
Nominal Capacity		Pe	kn	1600	2000	2500
Slide Stroke		s	mm	180	200	220
Slide Stroke Speed	Fixed	n	spm	45	35	30
	Variable (Optional)	n	spm	35-55	35-55	20-35
Max. Die Shut Height		H2	mm	400	450	500
Die Shut Height Adjustment		t	mm	110	110	120
Side Window Size	F-B	E	mm	650	750	800
	Height	F	mm	350	420	430
Distance Between Uprights		G	mm	1100	1200	1300
Table Size	F-B	D	mm	650	750	800
	L-R	C	mm	1000	1100	1200
	Thickness	H3	mm	165	180	190
Table Hole Diameter			mm	180	200	200
Slide Bottom Size	F-B	b	mm	600	700	750
	L-R	a	mm	750	850	950
Table Surface Height		H1	mm	1005	1115	1205
Overall Dimensions	F-B	A	mm	2200	2300	2500
	L-R	B	mm	1780	2000	2050
	Height	H	mm	3800	4200	4500
Motor Power			kw	15	18.5	22
Weight (Approximate)			kg	16000	22000	27500

Company Features
1. WORLD has been fully grasping a full set of production technology to make sure the quality of 100 ton power press price .
2. Better treating each customer with our best power press machine price list is our unswerving goal. Contact!
