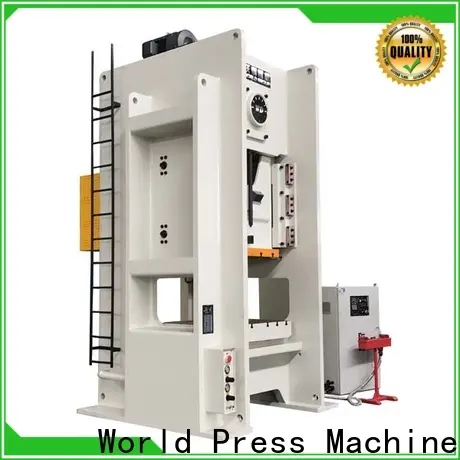

New types of power press for business at discount

Place of Origin:

Jiangsu China

Payment:

L/C, T/T

MOQ:

Model:

JW31-250

Brand:

WORLD

Inquiry

Supply Ability

2000 Unit/Units per Year

Start Port

Shanghai China

Material

Metal

Delivery Time

45days

Certification

CE, CCC

Availability

OEM

Item		Code	Unit	JW31-160	JW31-200	JW31-250
Nominal Capacity		Pe	kn	1600	2000	2500
Slide Stroke		s	mm	180	200	220
Slide Stroke Speed	Fixed	n	spm	45	35	30
Slide Stroke Speed	Variable (Optional)	n	spm	35-55	35-55	20-35
Max. Die Shut Height		H2	mm	400	450	500
Die Shut Height Adjustment		t	mm	110	110	120
Side Window Size	F-B	E	mm	650	750	800
Side Window Size	Height	F	mm	350	420	430
Distance Between Uprights		G	mm	1100	1200	1300
Table Size	F-B	D	mm	650	750	800
	L-R	C	mm	1000	1100	1200
	Thickness	H3	mm	165	180	190
Table Hole Diameter			mm	180	200	200
Slide Bottom Size	F-B	b	mm	600	700	750
Slide Bottom Size	L-R	a	mm	750	850	950
Table Surface Height		H1	mm	1005	1115	1205
Overall Dimensions	F-B	A	mm	2200	2300	2500
	L-R	B	mm	1780	2000	2050
	Height	H	mm	3800	4200	4500
Motor Power			kw	15	18.5	22
Weight (Approximate)			kg	16000	22000	27500

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
