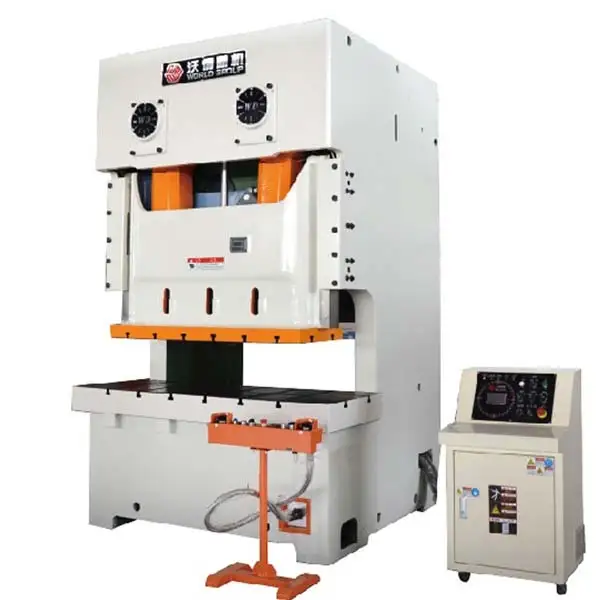

JH25-200 Ton Automatic Power Press Machine
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| ITEM | CODE | UNIT | JH25-200 | |
| Nominal Capacity | Pe | KN | 2000 | |
| Stroke Length | S | mm | 250 | |
| Stroke Speed | Fixed | spm | 35 | |
| Variable(optional) | spm | 25-40 | ||
| Max. Die Shut Height | H2 | mm | 500 | |
| Die Shut Height Adjustment | t | mm | 110 | |
| Throat Depth | G | mm | 430 | |
| Distance Between Uprights | N | mm | 1920 | |
| Table Size | F-B | D | mm | 840 |
| L-R | C | mm | 2420 | |
| Thickness | H3 | mm | 170 | |
| Slide Bottom Size | F-B | b | mm | 650 |
| L-R | a | mm | 1850 | |
| Table Surface Height | H1 | mm | 1000 | |
| Overall Dimensions | F-B | A | mm | 2370 |
| L-R | B | mm | 2550 | |
| Height | H | mm | 3820 | |
| Motor Power | KW | 22 | ||
| Weight(approximate) | kg | 2650 | ||
