JH25-110 Ton Aluminum Lock Punching Machine
WORLD BRAND

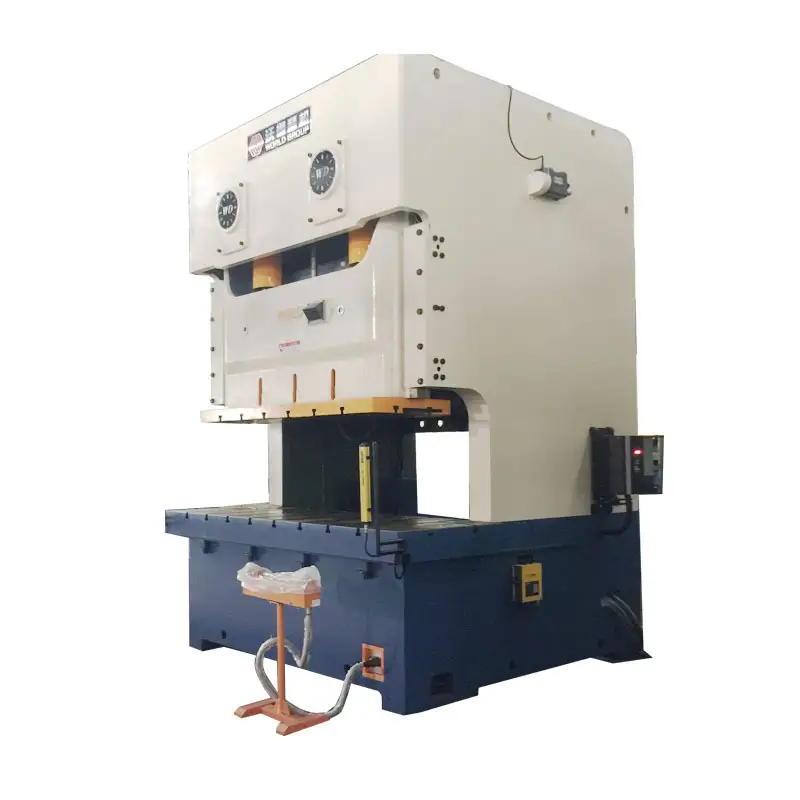

JH25-110 Double Crank Mechanical Power Press Punching Machine
JH25 C frame double crank power press (press machine, punching press, punching machine,mechanical power press, stamping press), capacity from 110ton to 315ton, PLC control, wet clutch, hydraulic overload protected, both mechanical and electric cam control, auto lubricated.Bigger table better for big sheet stamping or progressive die stamping process. Light curtain, inverter, air cushion are optional.
WET CLUTCH
HYDRAULIC OVERLOAD PROTECTING PUMP
AUTO LUBRICATION SYSTEM
PRODUCT SPECIFICATION
WORLD
-
Steel welded body, tempering treatment, high rigidity, accuracy and stability.
-
Cross located crankshaft, compact structure.
-
The crankshaft undergoes grinding treatment after high frequency quenching.
-
The crankshaft undergoes grinding treatment after high frequency quenching.
- PLC control and imported safety dual valve.
- Pneumatic dual balance cylinder, which balances the slide block and ounch weight to reduce noise and impact.
- Wet clutch and hydraulic overload protected pump.
- Both auto grease lubrication system and manual thin oil lubrication system.
| ITEM | CODE | UNIT | JH25-110 | |
| Nominal Capacity | Pe | KN | 1100 | |
| Stroke Length | S | mm | 180 | |
| Stroke Speed | Fixed | spm | 50 | |
| Variable(optional) | spm | 35-55 | ||
| Max. Die Shut Height | H2 | mm | 400 | |
| Die Shut Height Adjustment | t | mm | 90 | |
| Throat Depth | G | mm | 350 | |
| Distance Between Uprights | N | mm | 1470 | |
| Table Size | F-B | D | mm | 680 |
| L-R | C | mm | 1880 | |
| Thickness | H3 | mm | 155 | |
| Slide Bottom Size | F-B | b | mm | 520 |
| L-R | a | mm | 1400 | |
| Table Surface Height | H1 | mm | 900 | |
| Overall Dimensions | F-B | A | mm | 1820 |
| L-R | B | mm | 1970 | |
| Height | H | mm | 3200 | |
| Motor Power | KW | 11 | ||
| Weight(approximate) | kg | 14000 | ||
DETAILS INTRODUCTION
WORLD
Bigger Table for Sheet Metal Proressive Die Stamping
JH25 C frame double crank punching press has a wider table which is more suitable for progressive die stamping. Double cross located crankshafts reverse rotated to eliminate each lateral force. Pneumatic slide balance cylinder is equipped to balance the slide weight and upper die weight.
Wet Type Pneumatic Clutch and Brake.
JH25 Stamping Press with pneumatic wet clutch can work as continuous, inches or single stroke,more choices for operators. Each clutch is under balance testing and temperature testing before assembling to the press. High quality friction discs ensure long service life.
Hydraulic Overload Protected Pump
The press is standard equipped with Japanese SHOWA hydraulic overload pump. Normallythe system is set as 110% of the nominal capacity.The press will stop immediately once it is overload than 110% to protect both the press and the die.
PLC central control system makes the press easily operation and inspection. HMI has functions of system setting, I/O monitor counter and preset counter. The operator can set the lubrication frequency by the HMI according to the working time or working stroke times.
Schneider/Siemens Electric Parts
APPLICATIONS
WORLD
JH21-125 C Frame Pneumatic Press Machine
Adopt to sheet metal punching , cutting, bending, drawing,stamping,blanking and forging process
