WORLD roll plate bending machine from best fatcory

Company Advantages
1. roll plate bending machine Adopting humanized design, it is not only easy to operate, simple to install, but also very convenient to maintain in the later stage. It is a household product production equipment with both aesthetics and practicability.
2. The use of this product enables manufacturers to more focus on their core design and product development, rather than racking their brains to find a way to improve productivity. It is one of the most beneficial and convenient workshop machinery
3. The product is distinctive for user-friendliness. It is designed with desired operation functions according to its applied characteristics. The product is quiet during the operation
4. It has the required wear resistance. The wear of its contacting surfaces is reduced by the lubrication of the surfaces, increasing the strength of the working surfaces. The clearance between connecting rod and slider has been eliminated to reduce force component impact and abrasion

Items	unit	63/2500	63/3200	100/2500	100/3200	100/4000	125/2500	125/3200	125/4000	160/2500	160/3200	160/4000
Nominal pressure	kN	630	630	1000	1000	1000	1250	1250	1250	1600	1600	1600
Length of table	mm	2500	3200	2500	3200	4000	2500	3200	4000	2500	3200	4000
Distance between uprights	mm	2050	2600	2050	2600	3300	2050	2600	3200	2050	2600	3400
Throat depth	mm	250	250	320	320	320	320	320	320	320	320	320
Ram stroke	mm	100	100	150	150	150	150	150	150	200	200	200
Max. open height between ram and table	mm	345	345	415	415	415	415	415	415	470	470	470
Adjustment of Ram stroke	mm	75	75	120	120	120	120	120	120	160	160	160
Approach speed	mm/s	90	90	120	120	120	110	110	110	100	100	100
Bend speed	mm/s	8	8	13	13	13	10	10	10	9.5	9.5	9.5
Return speed	mm/s	66	66	115	115	115	100	100	100	95	95	95
Main motor	kW	5.5	5.5	7.5	7.5	7.5	11	11	11	11	11	11
Overall dimension ( LxWxH )	mm	2560	3260	2650	3350	4150	2650	3350	4150	2560	3260	4060
		1725	1725	1785	1785	1785	1785	1785	1785	1940	1940	1940
		2280	2280	2460	2510	2560	2540	2560	2610	2660	2660	2660
Weight	kg	4400	5200	6100	7000	79000	6600	7300	8800	9000	9600	11800

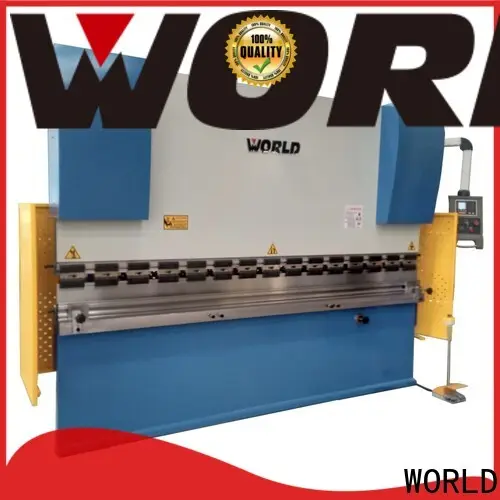

                                        (WC67Y) specification

                                        Features:

                                        1. A fully welded steel construction with full strength and rigidity.

                                        2. Hydraulic down-stroke construction.

                                        3. Synchronizing mechanism of the ram adopting torque-tube and mechanical stop unit, stable and reliable.

                                        4. Deflection-compensating mechanism of wedge construction.

                                        5. Power fast adjustment, manual fine adjustment and counter-showing for the ram stroke.

                                        6. Front-controlled backgauge by power fast-adjustment and manual fine-adjustment with counter display.

Company Features
1. Shanghai Yingxin World Machinery Co., Ltd. is an initiator in the industry of roll plate bending machine . Shanghai Yingxin World Machinery Co., Ltd. possesses advanced mechanical equipment.
2. Shanghai Yingxin World Machinery Co., Ltd. has the advanced equipment and technology needed for metal press brake .
3. Shanghai Yingxin World Machinery Co., Ltd. has the formidable technology competitive advantage. WORLD believes that the popularity of hydraulic rod bending machine project depends on its high quality and professional service. Contact us!
