Top 50 ton punch press factory

Company Advantages
1. The design of WORLD is the integration of intelligence and professionalism. The latest cutting-edge technologies such as automation detection and automatic control technologies have been applied to its design. It adopts pneumatic cylinder structure to avoid machine shaking caused by weight
2. It has been a popular product for these beneficial features. The clearance between connecting rod and slider has been eliminated to reduce force component impact and abrasion
3. With different functions, 50 ton punch press can be used in . Fabricated by heat treatment, its steel welded body has high rigidity

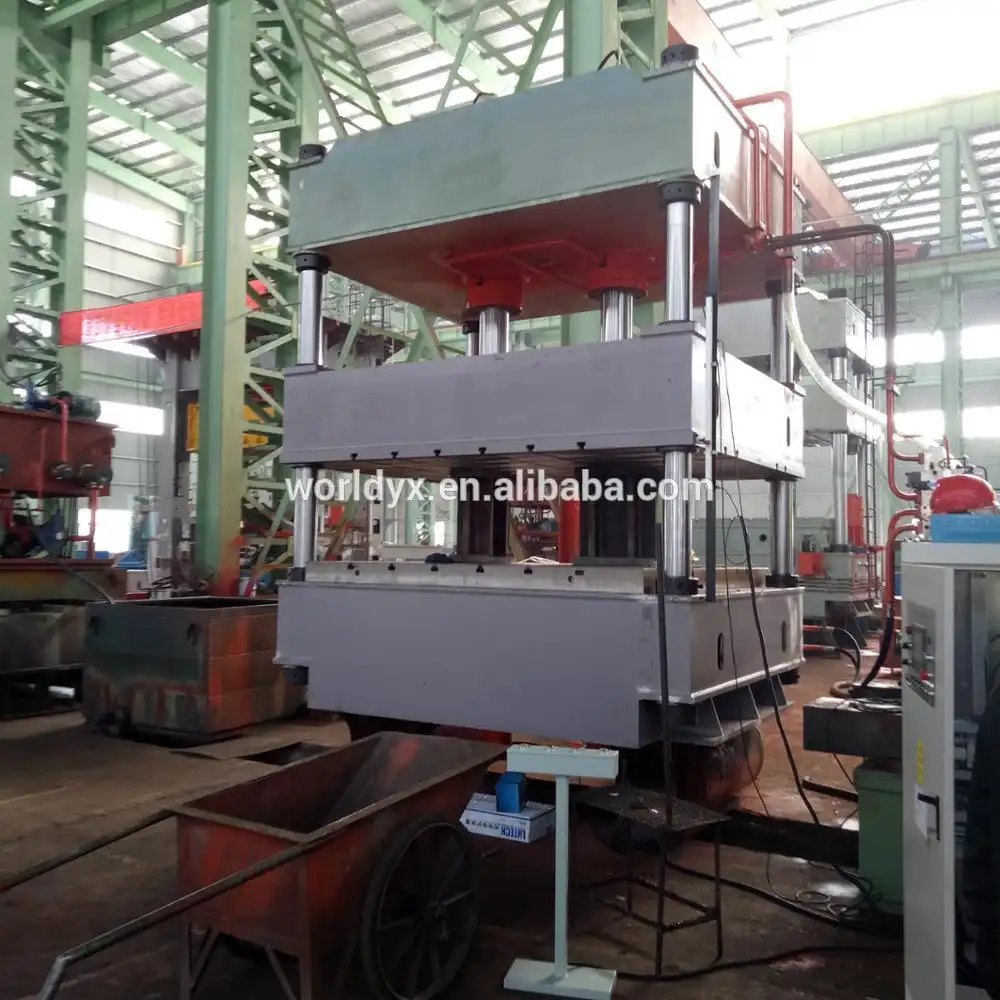

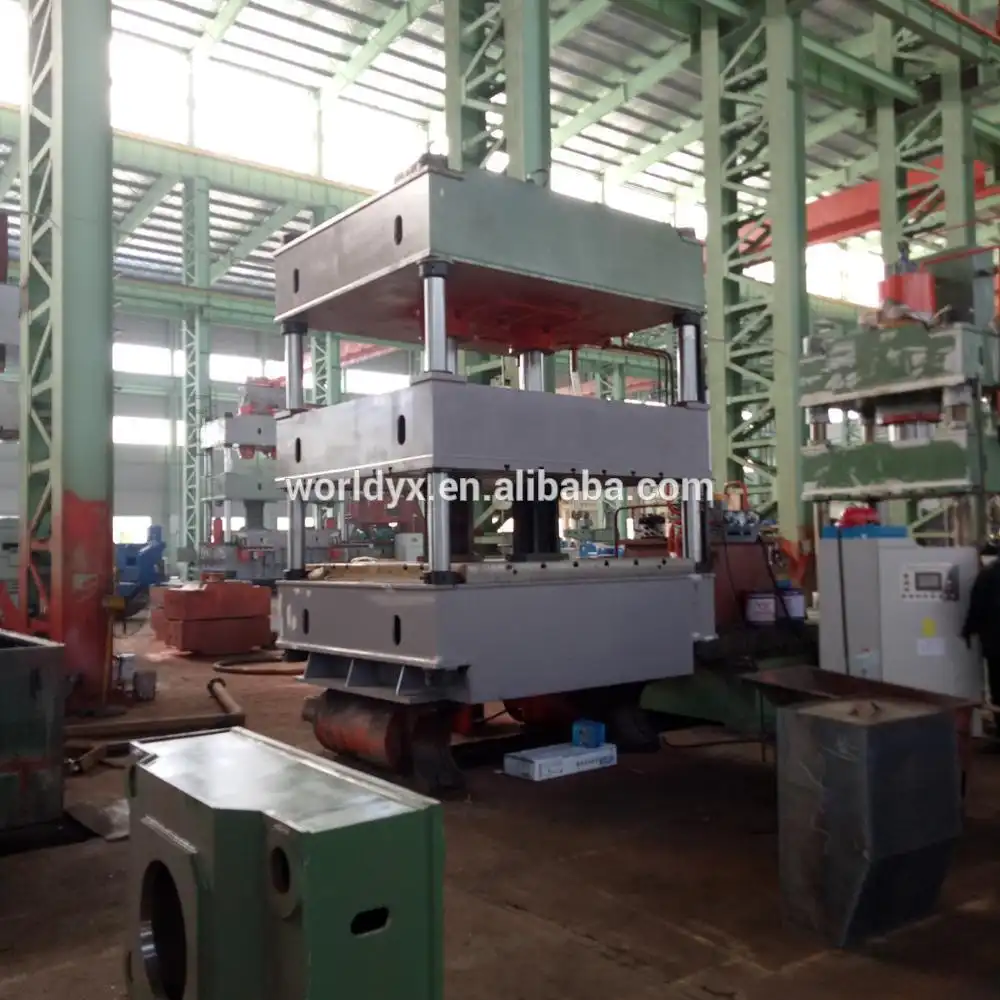

metal forming four columu 400 ton hydraulic press

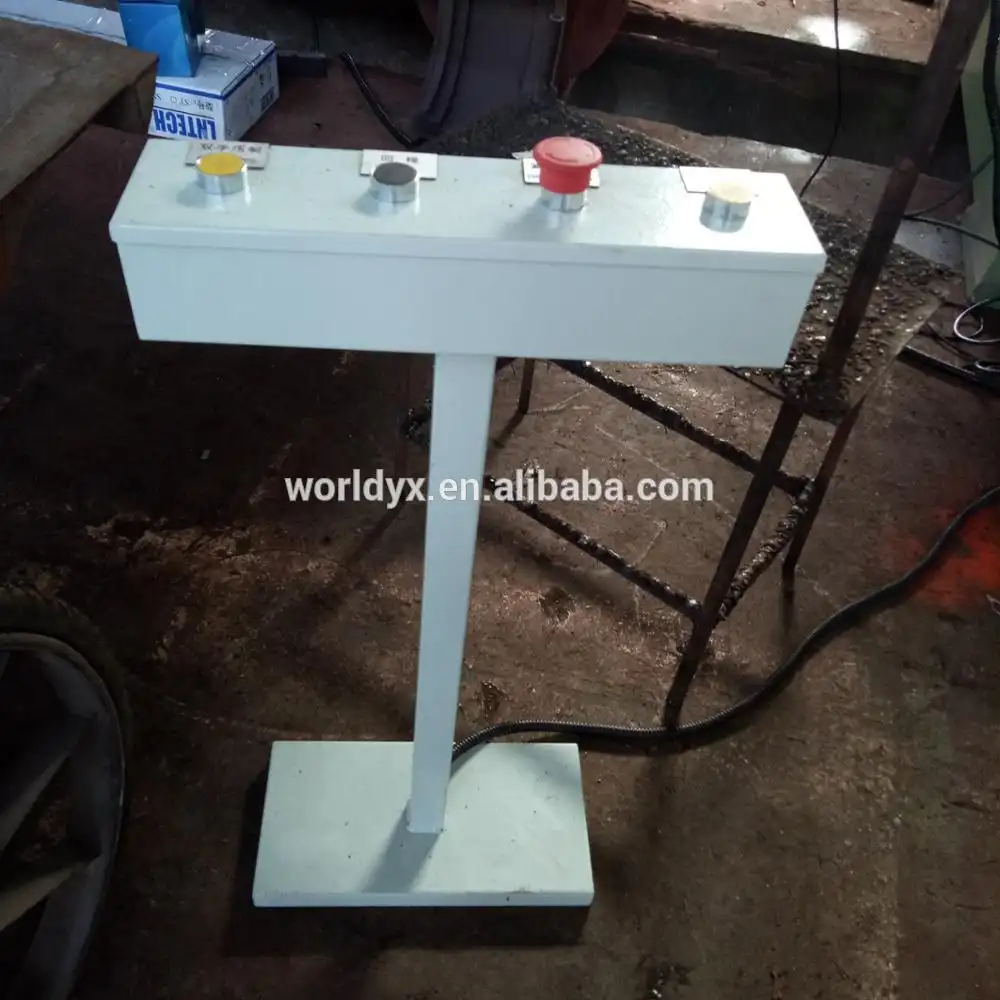

Four column hydraulic press is applicable for drawing, bending, flanging, cold extruding and blanking process for metal materials. It is also applicable for adjusting, press-in and forming process for powder and abrasive products, plastic and insulation materials. The hydraulic press adopts 3 beam and 4 column compact structure, simple, economic and practical. Adopting button common control with two operation modes: adjustment or two hand single cycle operation. Preset stroke forming or preset pressure forming process can be selected.

MODEL			YW27-200	YW27-315	YW27-400	YW27-400A	YW27-400B	YW27-500	YW27-630
Capacity		kN	2000	3150	2000	4000	4000	5000	6300
Hydraulic cushion capacity		kN	1200	1500	1500	2000	1000	1500	2000
Slide Stroke		mm	800	1000	1000	1200	500	1000	1500
Hydraulic cushion Stroke		mm	260	300	350	350	200	300	400
Max. Shut Height		mm	1200	1600	1500	2000	1100	1400	2000
Bolster movement distance		mm			2000	2400		1600	2700
Slide Speed	Idle Stroke	mm/s	220	200	200	250	180	220	200
	Pressing	mm/s	15-25	10-15	9-15	10-25	10-25	8-20	6-15
	Return	mm/s	160	150	150	150	120	160	150
Ejecting Speed	Eject	mm/s	60	60	60	60	60	80	80
	Return	mm/s	100	100	100	80	80	120	100
Bolster Size	LR	mm	1000	2500	2700	3000	1700	2000	4500
	FB	mm	1000	1600	1500	2000	1400	1400	2500
Main Motor Power		kW	15	22	44	44	44	44	67

World brand specializing in power press machine , hydraulic press machine , NC feeder . Such as the company has an excellent technology development team, team members have good professional basis and rich design experience, the team members including mechanical design engineer, engineer, electric control system of assembly and debugging engineer, after-sales service engineers, can provide customers with automation technology in the field of all kinds of application solutions .

Company Features
1. Shanghai Yingxin World Machinery Co., Ltd. has many years of comprehensive experience in designing and manufacturing . We have acclaimed customer service. All our technical staff are rich in experience for 50 ton punch press .
2. With advanced technology applied in hydraulic metal punching machine , we take the lead in this industry.
3. Our advanced machine is able to fabricate such hydraulic c frame punch with features of [拓展关键词/特点]. We not only take into consideration what we need to do to make the most of the environmental resources but also human and financial capital. All we do must be able to sustain the global environment as a whole, including the people who live in it.
