WORLD mechanical power press Suppliers5

Company Advantages
1. By our technical skills, our mechanical power press is famous for its finest . It is suitable for various kinds of fabrication work, such as the manufacturing of auto parts, household appliances, electronic parts, etc
2. There will be a shift to a reduced workforce if manufacturers adopt this product. It can maintain high efficiency while reducing costs. It is one of the most beneficial and convenient workshop machinery
3. It is appreciated for its thermal overload protection system. There is a heat output channel that forces the heat out to protect the product from overheat. The ground helical gear or herringbone gear makes the moving more stable with lower noise
4. The product is not prone to shrinkage after washing. During the scutching and squeezing processes, the tension of the fabric is strictly controlled. It comes with a wide range of electric motor powers

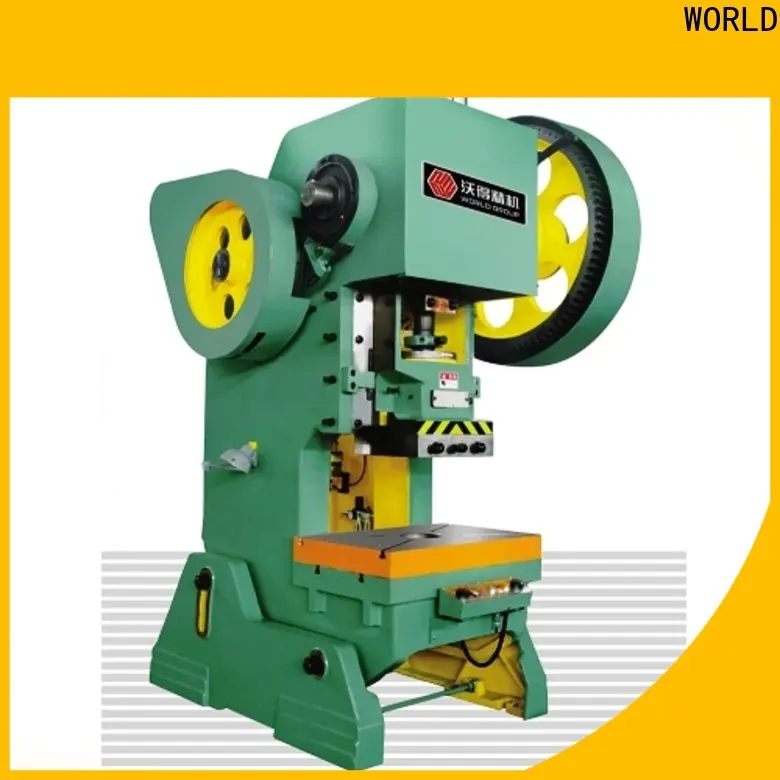

This series of press adopts rotating key positive clutch, which has a simple structure and is convenient to operate and maintain, achieving smooth operation.low impact and low noise; J23-25 open type inclinable press machine is the first to adopt rolling bearing rather than the commonly used sliding bearing (copper bearing) for the transmission gear, making the transmission gear more wear-resistant and avoiding loud noises of gears caused by the quickly worn copper bearing;

Specifications:

ITEMS		UNIT	J23-6.3	J23-10	J23-16	J23-25	J23-35	J23-40	J23-63	JB23-63	J23-80	J23-100	J23-125
Capacity		KN	63	100	160	250	350	400	630	630	800	1000	1250
Nominal stroke		mm	2	2	2	2.5	3.5	6	6	7	7	7	8
Slide stroke length		mm	35	45	55	65	80	90	110	110	120	140	150
Stroke times per minute		spm	170	145	125	55	50	45	50	40	38	38	38
Max. Die set height		mm	150	180	220	270	290	320	360	390	440	480	500
Die shut height adjustment		mm	30	35	45	55	60	65	80	80	90	100	100
Throat depth		mm	110	130	160	200	220	250	260	310	350	380	390
Distance between uprights		mm	150	180	220	270	280	340	350	420	450	560	550
Slide bottom size	L-R	mm	140	170	200	250	250	300	300	400	430	540	540
	F-B	mm	120	150	180	220	220	260	260	360	360	480	480
Stemhole size	Diameter	mm	30	30	40	40	40	50	50	50	60	60	60
	Depth	mm	55	55	60	60	60	70	70	70	75	75	75
Bolster size	L-R	mm	310	370	450	560	610	700	760	860	950	1080	1100
	F-B	mm	200	240	300	370	400	460	480	570	650	710	720
	Thickness	mm	30	35	40	50	60	65	80	80	100	120	130
Table hole diameter		mm	60	80	100	120	130	150	180	180	200	220	240
Max. inclinable angle		°	45	35	35	30	30	30	20	20	20	15	13
Bolster surface height		mm	750	730	750	800	815	850	810	850	850	850	860
Over all dimensions	L-R	mm	620	665	847	950	1058	1335	1350	1500	1715	1790	1790
	F-B	mm	780	900	1150	1345	1460	1721	1810	1958	2060	2404	2504
	Height	mm	1503	1658	1910	2130	2225	2488	2740	2868	3290	3625	3715
Distance between foundation bolts	L-R	mm	314	394	450	600	650	750	850	920	1010	1130	1110
	F-B	mm	530	610	780	920	1020	1060	1180	1300	1360	1550	1710
Motor power		kw	0.75	1.1	1.5	2.2	4	5.5	5.5	7.5	7.5	11	11
Weight		kg	400	576	1085	1780	2650	3540	4550	5500	7390	10800	12035



Company Features
1. Shanghai Yingxin World Machinery Co., Ltd. is an all-round company involving the design, production, and marketing of . We provide a wide range of product portfolio.
2. We have a professional management team. Based on their expertise and experience, they are able to provide innovative solutions in terms of manufacturing process and order management.
3. Shanghai Yingxin World Machinery Co., Ltd. will provide sincere, enthusiastic and considerate service to our customers. Inquiry!
