JS36-630 Ton Aluminum Foil Container Punching Machines
WORLD Brand

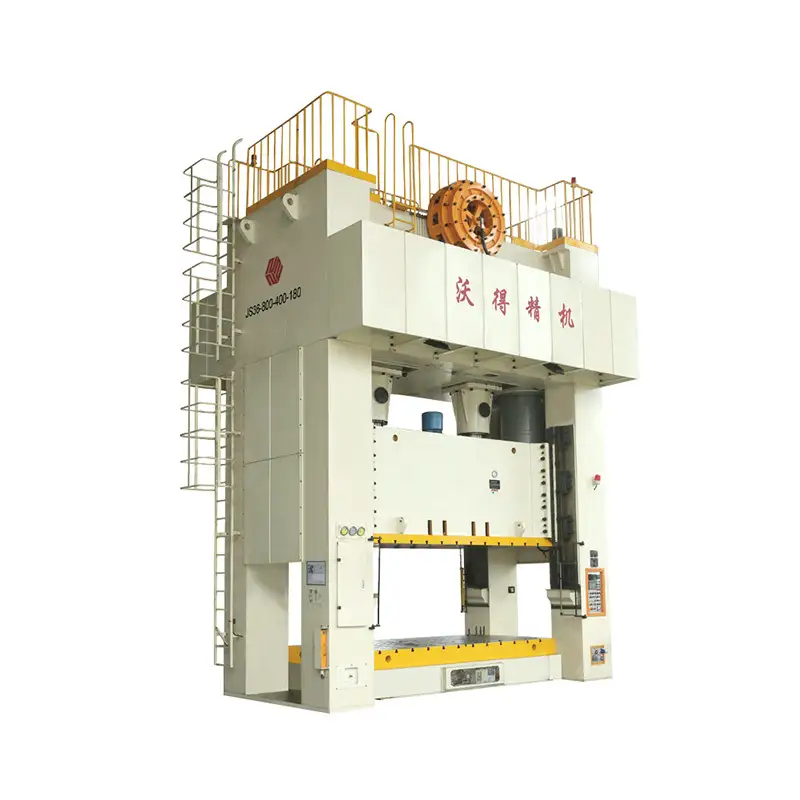

JS36-630 Ton Aluminum Foil Container Punching Machines
JS36 straight side power press(press machine,punching press,mechanical press),capacity ranges from 250 ton to 2000 ton. The press adopts eccentric gear transmission system with longer stroke length and more power energy, most suitable for car body parts stamping.
The press can be disassembled as crown, slide, columns and bolster which are fixed with tie rods and nuts. Big table and customized table size, shut height, stroke length are widely conform to progressive die stamping and big sheet parts stamping process
PRODUCT SPECIFICATION
WORLD
-
Steel welded body, tempering treatment, high rigidity, accuracy and stability.
-
Cross located crankshaft, compact structure.
-
The crankshaft undergoes grinding treatment after high frequency quenching.
-
The crankshaft undergoes grinding treatment after high frequency quenching.
- PLC control and imported safety dual valve.
- Pneumatic dual balance cylinder, which balances the slide block and ounch weight to reduce noise and impact.
- Wet clutch and hydraulic overload protected pump.
- Both auto grease lubrication system and manual thin oil lubrication system.
| Item | Unit | JS36-630 | |
| Nominal capacity | KN | 6300 | |
| Stroke under nominal force | mm | 13 | |
| Slide stroke length | mm | 500 | |
| Stroke speed | times/min | 13-18 | |
| Max. die shut height | mm | 900 | |
| Die shut height adjustment | mm | 400 | |
| Slide bottom size | L-R | mm | 3500 |
| F-B | mm | 1600 | |
| Size of worktable | L-R | mm | 3500 |
| F-B | mm | 1600 | |
| Power of electric motor | KW | 75 | |
| Height above floor | mm | 8200 | |
DETAILS INTRODUCTION
WORLD
The steel welded structure is heat treatment and ball blasting to release the welding stress. The press body can be disassembled to four parts: crown, bolster, slide and columns which are fixed by tie rod bolts and nuts.
Two big eccentric gears with link rods and guide pillars. Eccentric gear transmission system gives the press bigger stroke length than crank type press. Guide pillars and bushes ensure higher precession. All the gears are strenghtened and grinding, lower noise and longer service life.
Clutch working: dual-safety valve opens and the high pressure air goes inside the cylinder, moves the brake block away and press the cluch block to work.
Brake working: dual-safety valve closes and the high pressure air goes out.The brake blocks will press on the brake body under the pressure of the springs.
Full air type cushion is optional. Stroke adjustable and lock function are available too.
Movable table is optional, front move, left to right move and T type move are available.
Full air type cushion has the same capacity of pressing and ejection.
Schneider/Siemens Electric Parts
APPLICATIONS
WORLD
JH21-125 C Frame Pneumatic Press Machine
Adopt to sheet metal punching , cutting, bending, drawing,stamping,blanking and forging process
