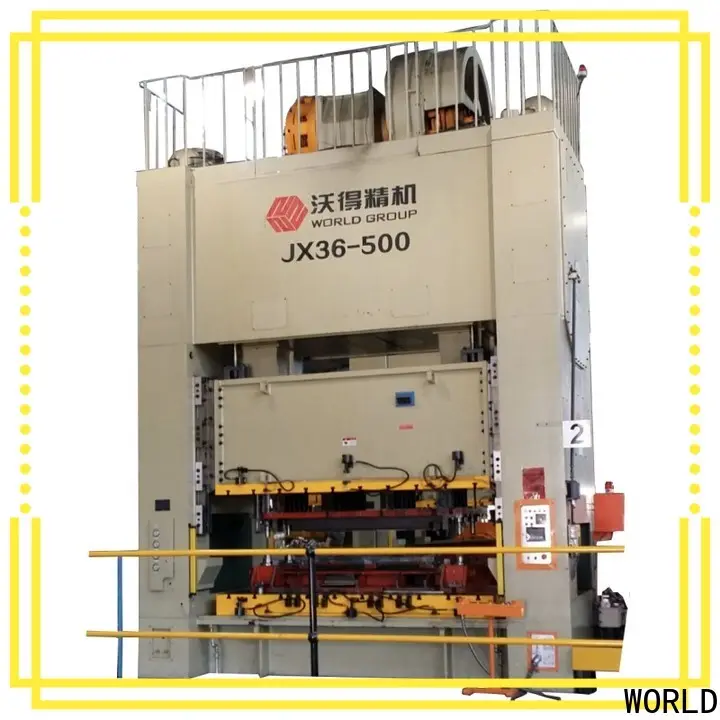

WORLD mechanical power press for business7

Place of Origin:
Jiangsu China
Payment:
L/C, T/T
MOQ:
1
Model:
JX36-400
Brand:
WORLD
Inquiry
Supply Ability
2000 Unit/Units per Year
Start Port
Shanghai China
Material
Metal
Delivery Time
60 days
Certification
CE, CCC
Availability
OEM
Company Advantages
1. WORLD is made of cost-efficient certified materials and exclusively crafted according to requirements. Its pressure, speed, and operation mode can be adjusted based on needs
2. That WORLD paying close attention to the quality assurance turns out to be helpful for its development. Fabricated by heat treatment, its steel welded body has high rigidity
3. The product is safe and durable, can be used for quite a long time. The designing and versatility of the product give users an advantage of moving its freely around the workplace
4. Upon testing, the product is in strict accordance with the global quality norms. The ball bearing has high wear resistance, avoiding generating big gear noise due to abrasion
5. Our professional team implements quality control system to meet the most strict quality standards. It adopts pneumatic cylinder structure to avoid machine shaking caused by weight







Item

JX36-400
JX36-500
JX36-630
JX36-800
JX36-1000
Nominal Capacity
kn
400
5000
6300
8000
10000
Rated Tonnage Point
mm
9
12
12
12
12
Stoke Length
mm
300
300
350
350
400
Stroke Speed
spm
20-35
20-35
20-30
15-25
15-25
Max. Die Shut Height
mm
650
650
700
800
900
Die Shut Height Adjustment
mm
200
200
250
250
250
Table Size (FBxLR)
mm
1300×3000
1500×3000
1500×3600
2000×4000
2000×4000
Table Thickness
mm
220
220
250
250
250
Slide Bottom Size (FB-LR)
mm
1300×3000
1500×3000
1500×3600
2000×4000
2000×4000
Window Opening (FBxH)
mm
1000×650
1100×650
1200×700
1600×800
1600×900
Table Height
mm
710
710
710
710
710
Motor Power
kw
45
55
75
75
90
Overall Dimensions (LxWxH)
mm

3330x4650x
7250
3800x5400x
7700
4200x6150x
9200
4600x6150x
9900
Approximate Weight
t
80
90
120
150
190








Company Features
1. Shanghai Yingxin World Machinery Co., Ltd. has also made many mechanical power press companies unmatched.
2. We have excellent manufacturing and innovation capabilities guaranteed by international advanced automatic power press machineequipment.
3. Our aim is to provide outstanding experiences by creating inspiring products that support the client’s objectives, build brand awareness and enhance market positioning. Call now!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
