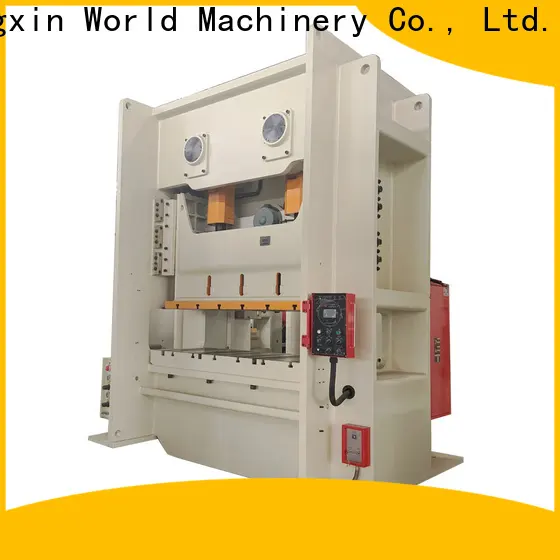

WORLD High-quality mechanical power press machine for business fast delivery2

Company Advantages
1. WORLD has undergone workmanship assessment to ensure that the stitching, construction, and embellishments can meet the needs of customers. It has advantages in internal mechanical performance, such as smooth operation
2. The refinement of this product has driven a boom in many industries. It makes efficient mass production and increased productivity become true. Its simple design which has only a few moving parts helps cut maintenance costs
3. It has the required colorfastness. It is able to withstand normal laundering/dry cleaning cycle without color loss. This product is designed for the really tough jobs that require high production, high tonnage, or variable controls
4. The product is safe enough. All its electrical components comply with relevant standards of EN or IEC, which means that the dangers of electric leakage are totally eliminated. Its top oil house has been tested by an oil bath to guarantee no leaking
5. The product runs stably under a wide voltage range. It has passed the power-on test which requires stability under low, high, and nominal voltage range. It comes with a wide range of electric motor powers

Item		Code	Unit	JW36-110	JW36-160	JW36-200	JW36-250
Nominal Capacity			kn	1100	1600	2000	2500
Slide Stroke Length		S	mm	180	200	250	280
Slide Stroke Speed	Fixed		spm	50	45	35	30
	Variable (Optional)		spm	35-55	35-55	25-40	20-35
Max. Die Shut Height		H2	mm	400	450	500	550
Die Shut Height Adjustment		t	mm	90	100	110	120
Side Window Size	F-B	E	mm	650	800	900	950
	Height	F	mm	350	400	450	460
Distance Between Uprights		G	mm	1750	1900	2290	2570
Table Size	F-B	D	mm	700	760	900	1000
	L-R	C	mm	1650	1800	2200	2500
	Thickness	H3	mm	140	150	170	180
Slide Bottom Size	F-B	b	mm	600	700	800	900
	L-R	a	mm	1350	1500	1900	2200
Table Surface Height		H1	mm	1035	1035	1135	1235
Overall Dimensions	F-B	A	mm	2050	2400	2650	2900
	L-R	B	mm	2400	2650	3150	3450
	Height	H	mm	3450	3950	4280	4800
Motor Power			kw	11	18.5	22	30
Weight (Approximate)			kg	18000	22000	33000	42000

Company Features
1. Based in China, Shanghai Yingxin World Machinery Co., Ltd. has built a good reputation in the global market. We mainly focus on the production of mechanical power press . We strictly enforce the ISO 9001 quality management system throughout all production stages. This has greatly increased our supply capacity, including superior product quality, sufficient quantity, and product diversification.
2. We have brought together an in-house QC team. They are in charge of the quality of the product by using various kinds of testing devices, enabling us to provide high-quality products for our customers.
3. We have entered the global market many years ago. Currently, we have earned a relatively large foreign market share mainly due to our strong R&D and manufacturing abilities. The kind of finest automatic power press machine and professional service shown in WORLD fully manifests the uniqueness of our company culture. Inquiry!
