WORLD Brand JH21-25 Power Press Machine

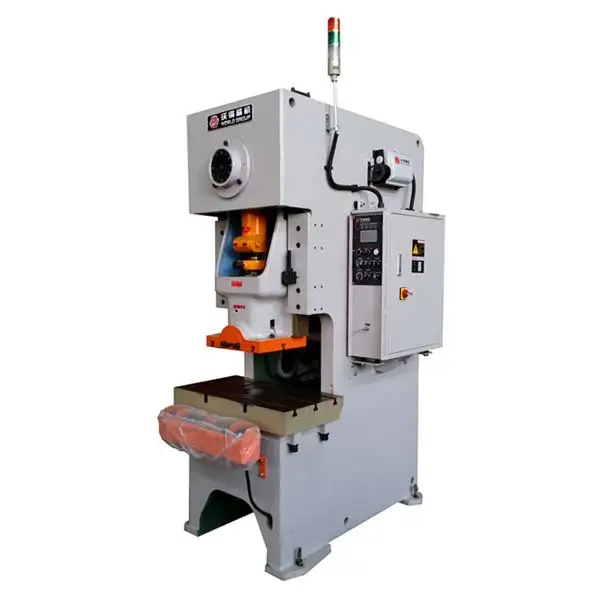

JH21-25 C Frame Mechanical Power Press Machine
JH21 C frame mechanical power press machine (punching press, press machine, stamping press), capacity range from 25 ton to 400 ton. Welded steel body, heat treatment, shot blasting, better rigidness, accuracy and stability. PLC control, wet type combined pneumatic clutch and brake, hydraulic overload protected, auto lubricated. The press can work with NC feeder for automatic production.
PRODUCT SPECIFICATION
WORLD
-
Steel welded body, tempering treatment, high rigidity, accuracy and stability.
-
Cross located crankshaft, compact structure.
-
The crankshaft undergoes grinding treatment after high frequency quenching.
-
The crankshaft undergoes grinding treatment after high frequency quenching.
- PLC control and imported safety dual valve.
- Pneumatic dual balance cylinder, which balances the slide block and ounch weight to reduce noise and impact.
- Wet clutch and hydraulic overload protected pump.
- Both auto grease lubrication system and manual thin oil lubrication system.
| ITEM | CODE | UNIT | JH21-25 | |
| Nominal Capacity | Pe | KN | 250 | |
| Slide Stroke Length | S | mm | 80 | |
| Slide Strokes | Fixed | spm | 100 | |
| Variable(optional) | spm | 60-120 | ||
| Max. Die Shut Height | H2 | mm | 250 | |
| Die Shut Height Adjustment | t | mm | 50 | |
| Throat Depth | C1 | mm | 210 | |
| Distance Between Uprights | d1 | mm | 450 | |
| Slide Bottom Size | FB | b | mm | 250 |
| LR | a | mm | 360 | |
| Shank Hole Size | Diameter | d | mm | 40 |
| Depth | I | mm | 65 | |
| Table Size | FB | D | mm | 400 |
| LR | C | mm | 720 | |
| Thickness | H3 | mm | 80 | |
| Table Hole Diameter | ¢ | mm | 150 | |
| Overall Dimensions | FB | A | mm | 1500 |
| LR | B | mm | 945 | |
| Height | H | mm | 2120 | |
| Motor Power | KW | 3 | ||
| Weight(approximate) | kg | 2450 | ||
DETAILS INTRODUCTION
WORLD
Wet Clucth
Wet type pneumatic clutch with imported clutch disc, NOK seals, lower noise and maintenance cost, longer service life.
HMI for Easy Operation
HMI according to the working time or working stroke times.The press has both mechanical and electrical cam controllers. The precision is 0.1mm.
High Precision for Sheet Metal Punching
JH21 C frame press uses rectangular type lengthened slide guides with bronze plates for higher guide precision.
Hydraulic Overload Protected
The press is standard equipped with Japanese SHOWA hydraulic overload pump.
APPLICATIONS
WORLD
JH21-125 C Frame Pneumatic Press Machine
Adopt to sheet metal punching , cutting, bending, drawing,stamping,blanking and forging process
