WORLD automatic power press machine factory8

Company Advantages
1. With highly efficient production, WORLD has a short lead time. Adopting the hydraulic system, it needs little maintenance
2. This product helps man to reduce his or her job. And because of this, the money that is required to pay is totally reduced. Its double-hand control buttons give a safety guarantee for the operator
3. Statistical quality control technique has been adopted during the production to guarantee the consistent quality of the product. The ground helical gear or herringbone gear makes the moving more stable with lower noise
4. To ensure its quality, the professional test procedures are adopted by our QC team. The product will stop immediately once it is overload than 110% to protect both the press and the die
5. Compared with the competitors, the product is more reliable in quality and performance. It has advantages in internal mechanical performance, such as smooth operation

Items	unit	63/2500	63/3200	100/2500	100/3200	100/4000	125/2500	125/3200	125/4000	160/2500	160/3200	160/4000
Nominal pressure	kN	630	630	1000	1000	1000	1250	1250	1250	1600	1600	1600
Length of table	mm	2500	3200	2500	3200	4000	2500	3200	4000	2500	3200	4000
Distance between uprights	mm	2050	2600	2050	2600	3300	2050	2600	3200	2050	2600	3400
Throat depth	mm	250	250	320	320	320	320	320	320	320	320	320
Ram stroke	mm	100	100	150	150	150	150	150	150	200	200	200
Max. open height between ram and table	mm	345	345	415	415	415	415	415	415	470	470	470
Adjustment of Ram stroke	mm	75	75	120	120	120	120	120	120	160	160	160
Approach speed	mm/s	90	90	120	120	120	110	110	110	100	100	100
Bend speed	mm/s	8	8	13	13	13	10	10	10	9.5	9.5	9.5
Return speed	mm/s	66	66	115	115	115	100	100	100	95	95	95
Main motor	kW	5.5	5.5	7.5	7.5	7.5	11	11	11	11	11	11
Overall dimension ( LxWxH )	mm	2560	3260	2650	3350	4150	2650	3350	4150	2560	3260	4060
		1725	1725	1785	1785	1785	1785	1785	1785	1940	1940	1940
		2280	2280	2460	2510	2560	2540	2560	2610	2660	2660	2660
Weight	kg	4400	5200	6100	7000	79000	6600	7300	8800	9000	9600	11800

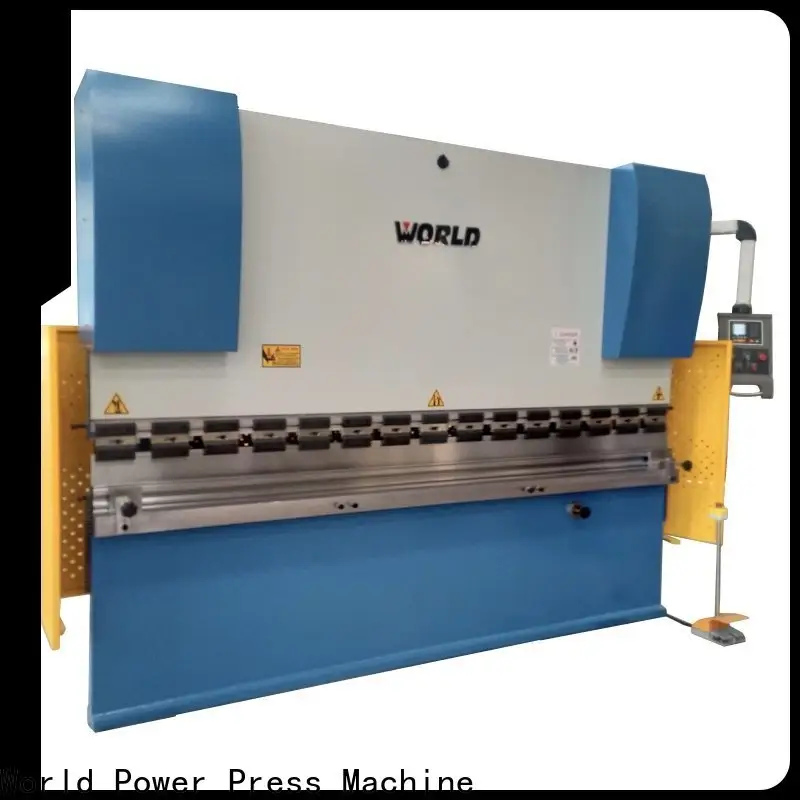

                                        (WC67Y) specification

                                        Features:

                                        1. A fully welded steel construction with full strength and rigidity.

                                        2. Hydraulic down-stroke construction.

                                        3. Synchronizing mechanism of the ram adopting torque-tube and mechanical stop unit, stable and reliable.

                                        4. Deflection-compensating mechanism of wedge construction.

                                        5. Power fast adjustment, manual fine adjustment and counter-showing for the ram stroke.

                                        6. Front-controlled backgauge by power fast-adjustment and manual fine-adjustment with counter display.

Company Features
1. The factory has introduced advanced production facilities from Germany, Italy, and other countries. The facilities have been tested to meet international standards. This forms a solid foundation for product quality and offers a guarantee for stable product output.
2. WORLD brings more value to customers than other brands. Contact us!
