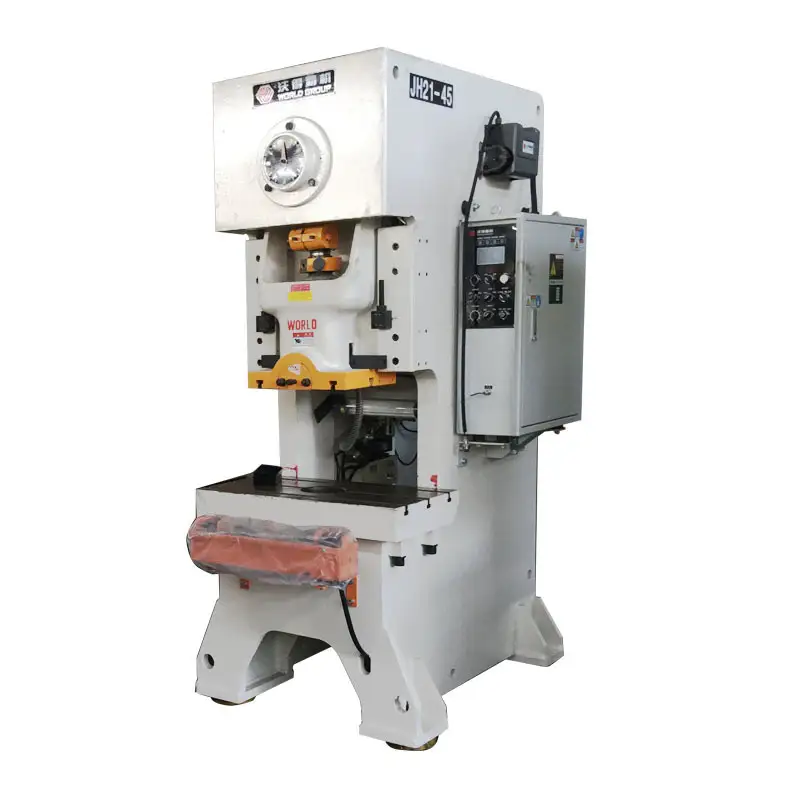

JH21-45 Sheet Metal Hole Punch Machine
PRODUCT SPECIFICATION
WORLD
ITEM | CODE | UNIT | JH21-45 | |
| Nominal Capacity | Pe | KN | 450 | |
| Slide Stroke Length | 5 | mm | 120 | |
| Slide Strokes | Fixed | spm | 80 | |
| Variabled(optional) | spm | 50-95 | ||
| Max.Die Shut Height | H2 | mm | 270 | |
| Die Shut Height Adjustment | t | mm | 60 | |
| Throat Depth | C1 | mm | 225 | |
| Slide Bottom Size | FB | b | mm | 340 |
| LR | a | mm | 410 | |
| Shank Hole Size | Diameter | d | mm | 50 |
| Depth | l | mm | 60 | |
| Table Size | FB | D | mm | 440 |
| LR | C | mm | 825 | |
| Thickness | H3 | mm | 110 | |
| Table Hole Diameter | mm | 150 | ||
| Overall Dimensions | FB | A | mm | 1585 |
| LR | B | mm | 1075 | |
| Height | H | mm | 2390 | |
| Motor Power | KW | 5.5 | ||
More than 30 years experiences, professional R&D team and production team.
3 years warranty for the self-produced wet type pneumatic clutch.
Quick delivery: 10 days for standard machines and 30 days for customized order.
About 80% parts are self-produced. Buyer can get the right parts in farther future.
Bigger manufacturer can provide more assurance for quality and future service.
DETAILS INTRODUCTION
WORLD
Wet type pneumatic clutch Imported clutch disc, NOK seals,
lower noise and maintenance cost, longer service life
Taiwan ISHAN grease pump
Auto grease lubrication for press
Japanese SHOWA hydraulic overload protected pump
Easy reset if overload
Panasonic or Omron PLC
HMI according to the working time or working stroke times.The press has both mechanical
and electrical cam controllers. The precision is 0.1mm.
The press is equipped withSiemens main motor.Higher efficiency levelreduces
energy consumption anddirectly saves costsfor users.
Japanese Toyooki or Taco brand safety solenoid valve
APPLICATIONS
WORLD
JH21-125 C Frame Pneumatic Press Machine
Adopt to sheet metal punching , cutting, bending, drawing,stamping,blanking and forging process
