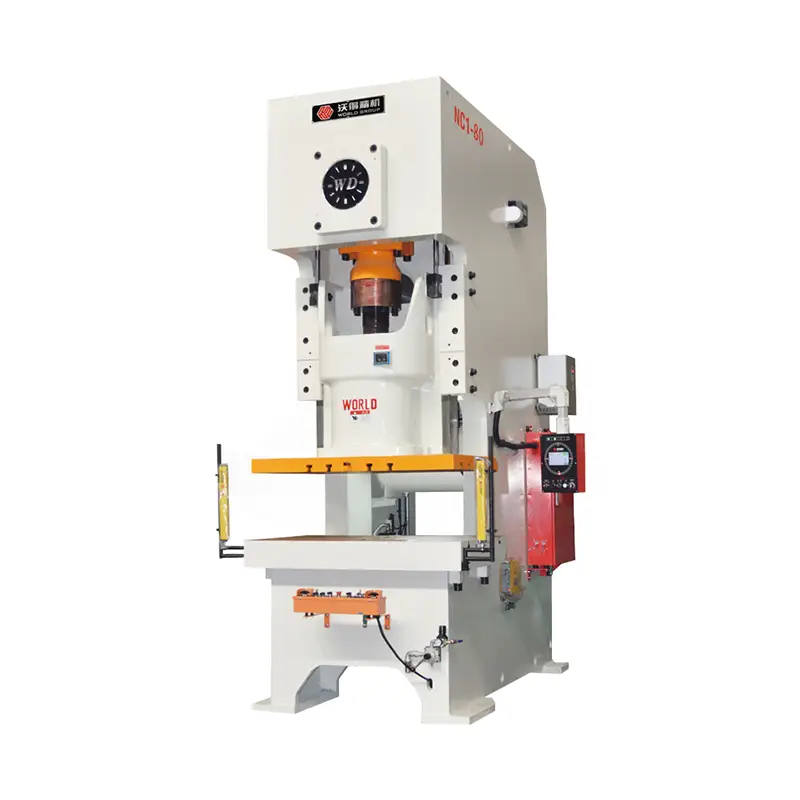

NC1 C Frame High Performance Press Machine

SPECIFICATION

ITEM		CODE	UNIT	NC1-25	NC1-45	NC1-60	NC1-80	NC1-110	NC1-160
Nominal Capacity		Pe	KN	250	450	600	800	1100	1600
Slide Stroke Length		S	mm	50	70	80	100	110	130
Slide Strokes	Fixed		spm	100	95	90	80	70	60
Slide Strokes	Variable(optional)		spm	75-120	65-110	60-110	50-95	45-85	40-75
Max. Die Shut Height		H2	mm	245	290	325	355	385	435
Die Shut Height Adjustment		t	mm	50	60	70	80	90	100
Throat Depth		C1	mm	165	230	270	310	350	390
Slide Bottom Size	FB	b	mm	300	350	400	460	520	580
Slide Bottom Size	LR	a	mm	350	450	500	560	650	700
Table Size	FB	D	mm	320	440	520	600	680	760
	LR	C	mm	720	850	900	1000	1150	1250
	Thickness	H3	mm	70	90	90	100	120	150
Overall Dimensions	FB	A	mm	1055	1385	1382	1755	1935	2060
	LR	B	mm	842	870	980	1185	1315	1435
	Height	H	mm	2145	2345	2555	2655	2885	3250
Motor Power			KW	3x4	5.5x4	5.5x4	7.5x4	11x4	15x4

OPTIONS

Light curtain; Inverter; Cushion; Decoiler; Straightener; NC Feeder; Transfer Bar; Manipulator;

HIGH PRECISION FOR SHEET METAL PUNCHING AND STAMPING

The press body is milling and boring by PAMA machine center and all the surfaces and holes will be finished machining in one position. NC1 frame press uses rectangular type lengthened slide guides with bronze plates for higher guide precision.Table surface is grinded by high performance grinding machine for better flatness.

The press adopts nitriding treatment for all the screw, which improves the surface strength of the screw, enhances the anti-occlusion ability of the thread, and greatly reduces the risk of screw biting.

NC1 Press machine Accuracy is JIS 1

NC1 C Frame High Performance Press Machine&sheet metal punch press 3

WET TYPE PNEUMATIC CLUTCH AND BRAKE

Wet type pneumatic clutch with imported clutch disc, NOK seals, lower noise and maintenance cost, longer service life.

NC1 Power Press with pneumatic wet clutch can work as continuous, inches or single stroke, more choices for operators.

NC1 C Frame High Performance Press Machine&sheet metal punch press 4

Siemens Motor, Schneider Electric Components

The press is equipped with Siemens main motor and Schneider electric components.

NC1 C Frame High Performance Press Machine&sheet metal punch press 5

Hydraulic Overload Protected Pump

The press is standard equipped with Japanese SHOWA hydraulic overload pump. Normally

the system is set as 110% of the nominal capacity. The press will stop immediately once it is overload than 110% to protect both the press and the die. It is easy to reset the overload as there is a reset switch on the control panel. The system can be reset within 3 minutes.

Panasonic or Omron or Schneider PLC

PLC control system can be Panasonic or Ormon or Schneider brand.

HMI FOR EASY OPERATION

HMI according to the working time or working stroke times.HMI with setting function, I/O monitor, counter and preset counter.

The press has both mechanical and electrical cam controllers.It is easy to set the cam angles to match the press with automatic feeding system or transfer system.Motorized slide adjustment with digital shut height indicator, precision is 0.1mm.
