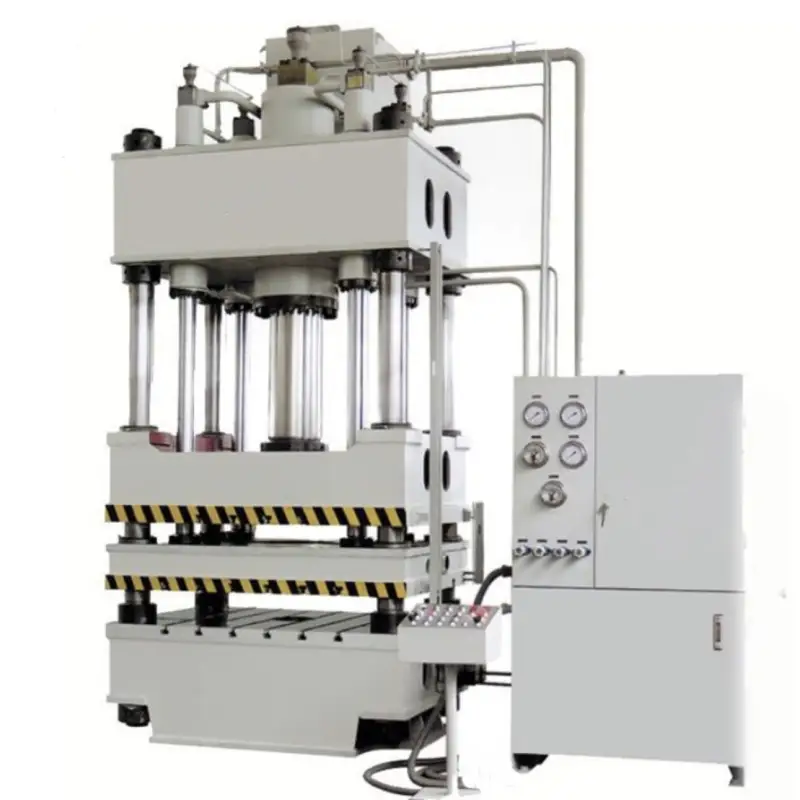

Metal Forming Four Column 400 Ton Hydraulic Punch Press
Metal Forming Four Column 400 Ton Hydraulic Punch Press
Four column hydraulic punch press is applicable for drawing, bending, flanging, cold extruding and blanking process for metal materials. It is also applicable for adjusting, press-in and forming process for powder and abrasive products, plastic and insulation materials. The hydraulic press adopts 3 beam and 4 column compact structure, simple, economic and practical. Adopting button common control with two operation modes: adjustment or two hand single cycle operation. Preset stroke forming or preset pressure forming process can be selected.
Key Features of Hydraulic Punch Press
▪ Heavy-Duty Four-Column Structure
The reinforced four-column frame provides superior stability and even force distribution, ensuring accurate pressing results and reduced machine deformation during operation.
▪ Powerful 400 Ton Hydraulic Capacity
With a maximum pressing force of 400 tons, the machine is capable of handling thick metal sheets and complex forming applications with high efficiency.
• Precision Hydraulic Control
Advanced hydraulic systems offer smooth pressure control, stable speed adjustment, and reliable operation for improved production accuracy.
▪ Durable and Reliable Design
Manufactured using premium steel components and high-quality hydraulic parts, the press is designed for long-term industrial use with minimal maintenance requirements.
• User-Friendly Operation
The machine features simple controls, optional PLC systems, and safety protection devices for convenient and safe operation.
▪ Wide Application Range
Suitable for punching, stamping, bending, forming, deep drawing, trimming, and mold pressing across various metalworking industries.
| MODEL | YW27-200 | YW27-315 | YW27-400 | YW27-400A | YW27-400B | YW27-500 | YW27-630 | ||
| Capacity | kN | 2000 | 3150 | 2000 | 4000 | 4000 | 5000 | 6300 | |
| Hydraulic cushion capacity | kN | 1200 | 1500 | 1500 | 2000 | 1000 | 1500 | 2000 | |
| Slide Stroke | mm | 800 | 1000 | 1000 | 1200 | 500 | 1000 | 1500 | |
| Hydraulic cushion Stroke | mm | 260 | 300 | 350 | 350 | 200 | 300 | 400 | |
| Max. Shut Height | mm | 1200 | 1600 | 1500 | 2000 | 1100 | 1400 | 2000 | |
| Bolster movement distance | mm | 2000 | 2400 | 1600 | 2700 | ||||
| Slide Speed | Idle Stroke | mm/s | 220 | 200 | 200 | 250 | 180 | 220 | 200 |
| Pressing | mm/s | 15-25 | 10-15 | 9-15 | 10-25 | 10-25 | 8-20 | 6-15 | |
| Return | mm/s | 160 | 150 | 150 | 150 | 120 | 160 | 150 | |
| Ejecting Speed | Eject | mm/s | 60 | 60 | 60 | 60 | 60 | 80 | 80 |
| Return | mm/s | 100 | 100 | 100 | 80 | 80 | 120 | 100 | |
| Bolster Size | LR | mm | 1000 | 2500 | 2700 | 3000 | 1700 | 2000 | 4500 |
| FB | mm | 1000 | 1600 | 1500 | 2000 | 1400 | 1400 | 2500 | |
| Main Motor Power | kW | 15 | 22 | 44 | 44 | 44 | 44 | 67 | |
World brand specializing in power press machine , hydraulic press machine , NC feeder . Such as the company has an excellent technology development team, team members have good professional basis and rich design experience, the team members including mechanical design engineer, engineer, electric control system of assembly and debugging engineer, after-sales service engineers, can provide customers with automation technology in the field of all kinds of application solutions .
