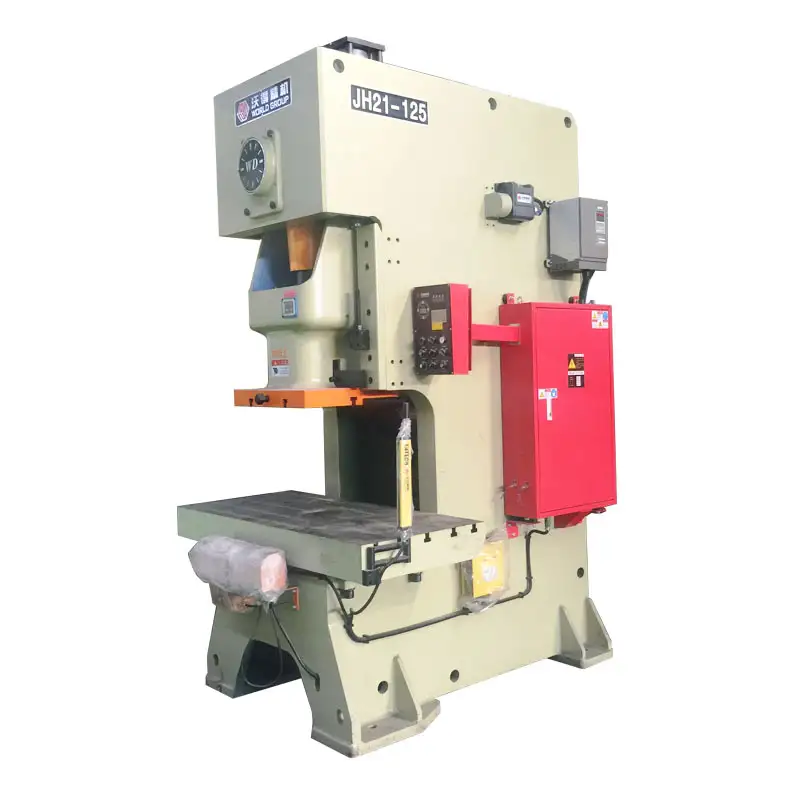

    JH21-125 Ton High Speed C Type Decline Bench Press Machine

    JH21 C frame mechanical power press machine (punching press, press machine, stamping press), capacity range from 25 ton to 400 ton. Welded steel body, heat treatment, shot blasting, better rigidness, accuracy and stability. PLC control, wet type combined pneumatic clutch and brake, hydraulic overload protected, auto lubricated. The press can work with NC feeder for automatic production.

    JH21-125 Ton High Speed C Type Decline Bench Press Machine 2

    PRODUCT SPECIFICATION

    WORLD

    JH21-125 Ton High Speed C Type Decline Bench Press Machine 3
    JH21-125 Ton High Speed C Type Decline Bench Press Machine 4
    • Steel welded body, tempering treatment, high rigidity, accuracy and stability.

    • Cross located crankshaft, compact structure.

    • The crankshaft undergoes grinding treatment after high frequency quenching.

    • The crankshaft undergoes grinding treatment after high frequency quenching.

    • PLC control and imported safety dual valve.
    • Pneumatic dual balance cylinder, which balances the slide block and ounch weight to reduce noise and impact.
    • Wet clutch and hydraulic overload protected pump.
    • Both auto grease lubrication system and manual thin oil lubrication system.
    ITEMCODEUNITJH21-125
    Nominal CapacityPeKN1250
    Slide Stroke LengthSmm180
    Slide StrokesFixed
    spm50
    Variable(optional)
    spm35-65
    Max. Die Shut HeightH2mm350
    Die Shut Height Adjustmenttmm90
    Throat DepthC1mm350
    Distance Between Uprightsd1mm670
    Slide Bottom SizeFBbmm520
    LRamm620
    Shank Hole SizeDiameterdmm70
    DepthImm90
    Table SizeFBDmm680
    LRCmm1100
    ThicknessH3mm155
    Table Hole Diameter¢mm200
    Overall DimensionsFBAmm2040
    LRBmm1320
    HeightHmm3035
    Motor Power
    KW11
    Weight(approximate)
    kg9550


    DETAILS INTRODUCTION

    WORLD

    JH21-125 Ton High Speed C Type Decline Bench Press Machine 5

    Wet Clucth

    Wet type pneumatic clutch with imported clutch disc, NOK seals, lower noise and maintenance cost, longer service life.

    JH21-125 Ton High Speed C Type Decline Bench Press Machine 6

    HMI for Easy Operation

    HMI according to the working time or working stroke times.The press has both mechanical and electrical cam controllers. The precision is 0.1mm.

    JH21-125 Ton High Speed C Type Decline Bench Press Machine 7

    High Precision for Sheet Metal Punching

    JH21 C frame press uses rectangular type lengthened slide guides with bronze plates for higher guide precision.

    JH21-125 Ton High Speed C Type Decline Bench Press Machine 8

    Hydraulic Overload Protected

    The press is standard equipped with Japanese SHOWA hydraulic overload pump.

    APPLICATIONS

    WORLD

    JH21-125 C Frame Pneumatic Press Machine

    Adopt to sheet metal punching , cutting, bending, drawing,stamping,blanking and forging process
