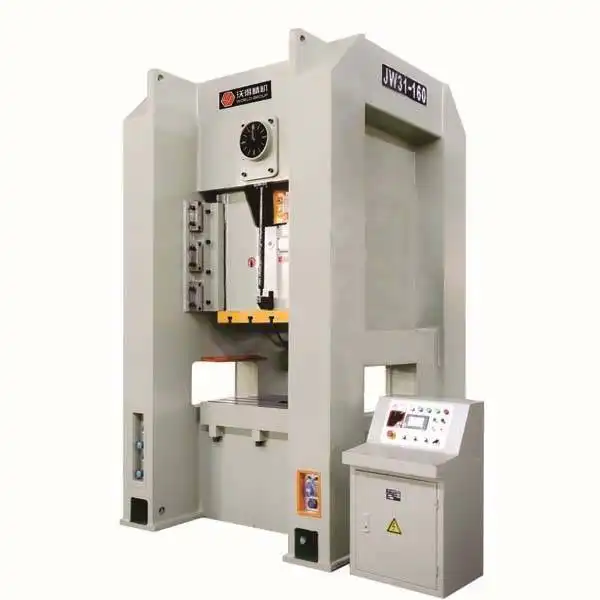

JW31-160 Ton H Frame Electric Power Pressing Machines
JW31-160 Ton H Frame Electric Power Press Machines
JW31 H frame single crank power press is applicable to light, thin material, for single, and progressive die application in blanking, piercing, bending, forming, interlink with ROT line or transfer unit. High rigidity frame, applications suitable for various kinds of stamping works. The press capacity is from 160ton to 630ton. Slide guide 8 faces for higher precision.
PRODUCT SPECIFICATION
WORLD
-
Steel welded body, tempering treatment, high rigidity, accuracy and stability.
-
Cross located crankshaft, compact structure.
-
The crankshaft undergoes grinding treatment after high frequency quenching.
-
The crankshaft undergoes grinding treatment after high frequency quenching.
- PLC control and imported safety dual valve.
- Pneumatic dual balance cylinder, which balances the slide block and ounch weight to reduce noise and impact.
- Wet clutch and hydraulic overload protected pump.
- Both auto grease lubrication system and manual thin oil lubrication system.
| ITEM | CODE | UNIT | JW31-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Slide Stroke | s | mm | 180 | |
| Slide Stroke Speed | Fixed | n | spm | 45 |
| Variable | n | spm | 25-50 | |
| Max. Die Shut Height | H2 | mm | 400 | |
| Die Shut Height Adjustment | t | mm | 110 | |
| Side Window Size | F-B | E | mm | 650 |
| Height | F | mm | 350 | |
| Distance Between Uprights | G | mm | 1100 | |
| Table Size | F-B | D | mm | 650 |
| L-R | C | mm | 1000 | |
| Thickness | H3 | mm | 165 | |
| Table Hole Diameter | mm | 180 | ||
| Slide Bottom Size | F-B | b | mm | 600 |
| L-R | a | mm | 750 | |
| Table Surface Height | H1 | mm | 1005 | |
| Overall Dimensions | F-B | A | mm | 2200 |
| L-R | B | mm | 1780 | |
| Height | H | mm | 3800 | |
| Motor Power | KW | 15 | ||
| Weight(approximate) | kg | 16000 | ||
DETAILS INTRODUCTION
WORLD
H Frame Body With Rigitdity
JW31 straight side press machine uses a strong H frame body.The press body is steel weldedwith high quality steel plates by carbon dioxide arc welding. After welding, all the weld seams must pass the examination of ultrasonic inspection. The top transmission gearbox is tested by oil bath to avoid any oil leak.
Wet Type Pneumatic Clutch and Brake
Wet type pneumatic clutch with imported clutch disc.NOK seals, lower noise and maintenance cost, longer service life.Press with pneumatic wet clutch can work as continuous, inches or single stroke. more choices for operators.
Hydraulic Overload Protected Pump
The press is standard equipped with Japanese SHOWA hydraulic overload pump. Normallythe system is set as 110% of the nominal capacity.The press will stop immediately once it is overload than 110% to protect both the press and the die.
PLC central control system makes the press easily operation and inspection. HMI has functions of system setting, I/O monitor counter and preset counter. The operator can set the lubrication frequency by the HMI according to the working time or working stroke times.
Schneider/Siemens Electric Parts
APPLICATIONS
WORLD
JH21-125 C Frame Pneumatic Press Machine
Adopt to sheet metal punching , cutting, bending, drawing,stamping,blanking and forging process
