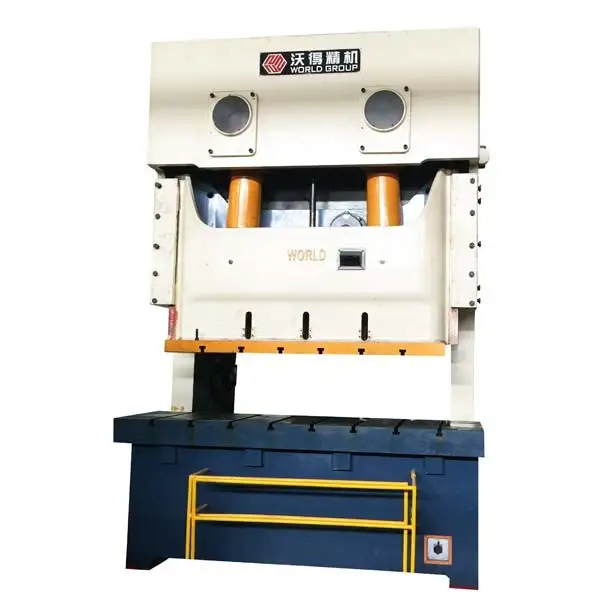

JH25-200 Ton Double Point Mechanical Power Press

Inquiry

Write a Review

JH25-200 Ton Double Point Mechanical Power Press 2

APPLICATIONS--REFRIGERATOR

JH25-200 Ton Double Point Mechanical Power Press 3

APPLICATIONS--PAN

JH25 MECHANICAL PRESS

200 ton c frame double crank press

JH25-200 Ton Double Point Mechanical Power Press 4

title

JH25-200 Ton Double Point Mechanical Power Press 5

APPLICATIONS--WASHING MACHINE

JH25-200 Ton Double Point Mechanical Power Press 6

APPLICATIONS--MOTORBIKE

PRODUCT FEATURES

subtitle

JH25-200 Ton Double Point Mechanical Power Press 7

JH25-200 Ton Double Point Mechanical Power Press 8

JH25-200 Ton Double Point Mechanical Power Press 9

JH25-200 Ton Double Point Mechanical Power Press 10

JH25-200 Ton Double Point Mechanical Power Press 11

ITEM		CODE	UNIT	JH25-200
Nominal Capacity		Pe	KN	2000
Stroke Length		S	mm	250
Stroke Speed	Fixed		spm	35
Stroke Speed	Variable(optional)		spm	25-40
Max. Die Shut Height		H2	mm	500
Die Shut Height Adjustment		t	mm	110
Throat Depth		G	mm	430
Distance Between Uprights		N	mm	1920
Table Size	F-B	D	mm	840
	L-R	C	mm	2420
	Thickness	H3	mm	170
Slide Bottom Size	F-B	b	mm	650
Slide Bottom Size	L-R	a	mm	1850
Table Surface Height		H1	mm	1000
Overall Dimensions	F-B	A	mm	2370
	L-R	B	mm	2550
	Height	H	mm	3820
Motor Power			KW	22
Weight(approximate)			kg	2650

DETAILS INTRODUCTION

WORLD

Siemens main motor

JH25-200 Ton Double Point Mechanical Power Press 12

Panasonic PLC

JH25-200 Ton Double Point Mechanical Power Press 13

Schneider/Siemens electric parts

JH25-200 Ton Double Point Mechanical Power Press 14

Japanese SHOWA hydraulic overload protected pump

Easy reset if overload

JH25-200 Ton Double Point Mechanical Power Press 15

Grease pump Auto grease lubrication

for press

JH25-200 Ton Double Point Mechanical Power Press 16

Japanese Toyooki or Taco brand safety

solenoid valve

JH25-200 Ton Double Point Mechanical Power Press 17

Japanese IDEC brand double hand control

buttons Movable T stand

JH25-200 Ton Double Point Mechanical Power Press 18

Germany ELCO brand encoder with

cam controller

JH25-200 Ton Double Point Mechanical Power Press 19

APPLICATIONS

WORLD

JH25-2 C Frame Pneumatic Press Machine

Adopt to sheet metal punching , cutting, bending, drawing,stamping,blanking and forging process

JH25-200 Ton Double Point Mechanical Power Press 20

JH25-200 Ton Double Point Mechanical Power Press 21

Automobile Stamping Parts

JH25-200 Ton Double Point Mechanical Power Press 22

JH25-200 Ton Double Point Mechanical Power Press 23

Household Appliance and Hardware

OUR CUSTOMERS

WORLD

JH25-200 Ton Double Point Mechanical Power Press 24

JH25-200 Ton Double Point Mechanical Power Press 25

JH25-200 Ton Double Point Mechanical Power Press 26

JH25-200 Ton Double Point Mechanical Power Press 27

JH25-200 Ton Double Point Mechanical Power Press 28

JH25-200 Ton Double Point Mechanical Power Press 29

JH25-200 Ton Double Point Mechanical Power Press 30

JH25-200 Ton Double Point Mechanical Power Press 31

JH25-200 Ton Double Point Mechanical Power Press 32

OUR FACTORY

WORLD

WORLD GROUP

World group was established in 1988 as a private company in Danyang City, Jiangsu Province. World has 21 subsidiary companies totally. The main business is to produce and sell power press machines, agriculture machines,construction machines, auto parts and garden tools.

For 30 years, World group has been making suitable progress possible and driving positive change on each industry. World has applied for 573 patents and obtained 122 authorized patents, 404 utility models patents, 36 invention patents and 47 design patents. World is also a registered well-known trademark by SAIC.

With 2016 sales and revenues of $3.692 billion, World group is one of the TOP500 private companies in China and TOP100 companies in Jiangsu Province. Now, World is one of the leading power press manufacturers, the biggest combine harvester manufacturer, the biggest lawn mower manufacturer, and one of the main construction machines manufactures in China.
