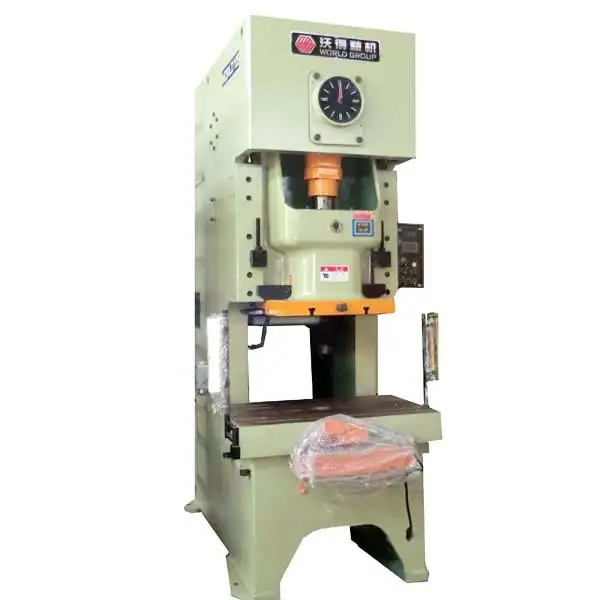

    JH21 C Frame Single Crank Power Press

    Navigating the future,

    WORLD the first

    JH21 Series Automatic power press machine with deep throat precision 6
    JH21 Series Automatic power press machine with deep throat precision 7
    JH21 Series Automatic power press machine with deep throat precision 8

    Amazing!!!

    JH21 Model Presses

    Most popular c type press machine for sheet metal parts stamping, punching, cutting, bending, trimming and blanking process. Press tonnages are from 25ton to 400ton. JH21 c frame press is standard equip with PLC, touch screen HMl, wet type pneumatic clutch and brake, safety solenoid valve. hydraulic overload pump,automatic grease lubricant pump and slide balance clinders, Safety light barriers, frequency inverter for adjustable stroke speeds, pistion type die cushion, die quick change clamps, tonnage monitor, safety die lock are all optional. This single crank press can work with coil sheet roller feeder to act as an automatic press. Several automatio presses with transfer system such as manipulators can work as full automatic press line.

    1F

    Benefits & Features

    Read More
    JH21 Series Automatic power press machine with deep throat precision 9
    World patent wet type pneumatic clutch and brake for power press machine .

    World produce the flywheel, the drive shaft, the gear ring and assemble the clutch with imported friction discs and seals. The friction discs are oil bath which is better for lubrication and cooling. All clutches must pass temperature testing and weight balance testing. Wet clutch has the benefits such as longer service life, lower noise, cheaper maintenance cost and easier maintenance, comparing to dry type clutch. Especially for house hold appliance parts stamping due to more strict cleaness request.

    JH21 Series Automatic power press machine with deep throat precision 10
    PlC for pneumatic press control

    Programmable logistic control system is standard equip to all world brand automatic power presses. Schneider. Omron, Panasonic are all available. Automatic grease lubrication pump is also controlled by the PLC and aperator can set the lubrication time and frequency through the HMI. The press can work as inches, single stroke and continuous strokes. There is an emergency stop button on the control panel for emergency using. Press working status could be checked through the HMl too.

    JH21 Series Automatic power press machine with deep throat precision 11
    Hydraulic overload protection system for pneumatic press machine

    World press uses hydraulic overload protection system instead of conventional mechanical shearing plate with higher reliability and more.sensitive action. If wrong operation or press overload, the high pressure hydraulic oil under the bowl will return to the overload pump oil tank. Meantime a signal will be sent to the press and the press will stop immediately to protect the die and the pneumatic power press.There is a reset switch on the control panel and the overload pump will pump the hydraulic oil back to the ram. Press will be ready again for operation.

    Compact stucture of the C type press

    • 1. Cross located crankshaf
    • 2. Motor and clutch are on the back
    • 3. Two slide balance cylinders
    • 4. C frame steel welded body, annealing treatment
    • 5. Overload pump, grease pump and pneumatic system are all in the back
    High precision rectangular type slide quides for the gap frame press

    Lenathened rectanqular type six faces ram slides with bronze plates fixed on the press body. Higher precision and longer surface life.Guide gaps could be adjusted by the bolts in the front. All the rams are casting in world factory and machining by cnc milling center.Automatic qrease lubrication system provides proper lubricant for the quides. Reliable, stable and lower noise.

    JH21 Series Automatic power press machine with deep throat precision 12

    2F

    Technical Parameters

    Read More

    ITEM

    CODE

    UNIT

    JH21-25

    JH21-45

    JH21-60

    JH21-80

    JH21-100

    JH21-125

    JH21-160

    JH21-200

    JH21-250

    JH21-315

    JH21-400

    Nominal Capacity

    Pe

    KN

    250

    450

    600

    800

    1000

    1250

    1600

    2000

    2500

    3150

    4000

    Slide Stroke Length

    S

    mm

    80

    120

    140

    160

    160

    180

    200

    220

    220

    220

    250

    Slide Strokes

    Fixed


    spm

    100

    80

    70

    60

    55

    50

    45

    45

    30

    30

    30

    Variable(optional)


    spm

    60-120

    50-95

    45-85

    40-75

    35-65

    35-65

    30-55

    30-55

    20-35

    20-35

    20-35

    Max. Die Shut Height

    H2

    mm

    250

    270

    300

    320

    335

    350

    400

    450

    500

    500

    550

    Die Shut Height Adjustment

    t

    mm

    50

    60

    70

    80

    90

    90

    100

    110

    120

    120

    120

    Throat Depth

    C1

    mm

    210

    225

    270

    310

    330

    350

    400

    430

    450

    450

    490

    Distance Between Uprights

    d1

    mm

    450

    515

    560

    610

    670

    670

    736

    910

    980

    980

    1050

    Slide Bottom Size

    FB

    b

    mm

    250

    340

    400

    460

    520

    520

    580

    650

    700

    700

    750

    LR

    a

    mm

    360

    410

    480

    540

    620

    620

    700

    880

    950

    950

    1020

    Shank Hole Size

    Diameter

    d

    mm

    40

    50

    50

    50

    70

    70

    70

    70

    70

    70

    70

    Depth

    I

    mm

    65

    60

    70

    65

    90

    90

    100

    100

    130

    130

    130

    Table Size

    FB

    D

    mm

    400

    440

    520

    600

    640

    680

    760

    840

    880

    880

    950

    LR

    C

    mm

    720

    825

    930

    950

    1060

    1100

    1175

    1390

    1500

    1540

    1700

    Thickness

    H3

    mm

    80

    110

    130

    140

    145

    155

    165

    180

    190

    190

    210

    Table Hole Diameter

    ¢

    mm

    150

    150

    150

    180

    180

    200

    220

    240

    260

    260

    280

    Overall Dimensions

    FB

    A

    mm

    1500

    1585

    1540

    1765

    2000

    2040

    2305

    2600

    2660

    2720

    2850

    LR

    B

    mm

    945

    1075

    1200

    1200

    1300

    1320

    1420

    1540

    1640

    1680

    1750

    Height

    H

    mm

    2120

    2390

    2570

    2725

    3010

    3035

    3215

    3800

    3850

    3850

    4140

    Motor Power


    KW

    3

    5.5

    5.5

    7.5

    7.5

    11

    15

    18.5

    22

    30

    37

    Weight(approximate)


    kg

    2450

    3550

    5150

    6450

    8650

    9550

    13600

    19200

    23200

    26600

    29500


    3F
