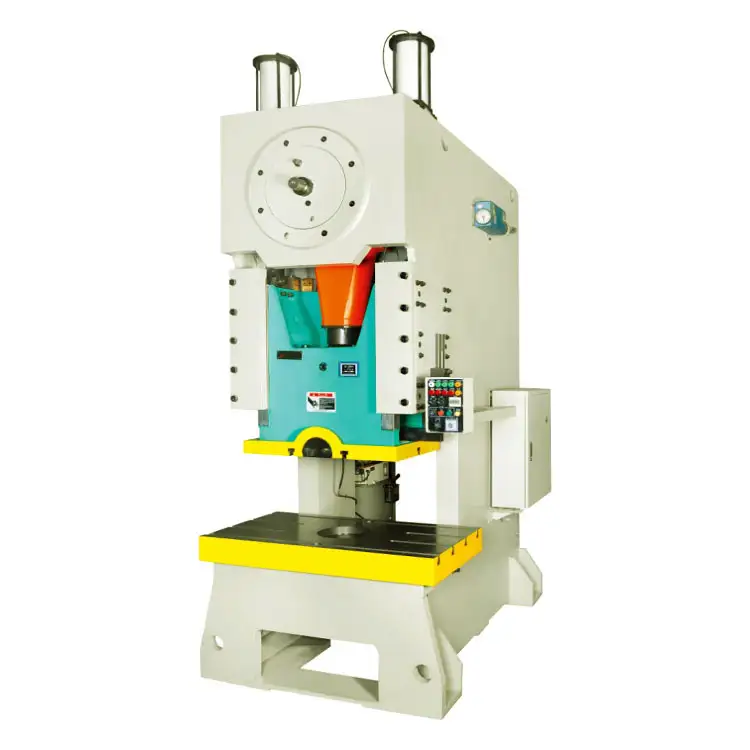

JH21-63L 63 Ton Stroke Adjustable Punching Machines
JH21-63L 63 Ton Stroke Adjustable Punching Machines
Specification List:
Model | JH21-63L | |||
Capacity | kN | 630 | ||
Nominal Stroke | mm | 4 | ||
Slide Stroke | mm | 10-150 | ||
SPM
| Fixed | min-1 | 70 | |
Variable | min-1 | 60-80 | ||
Max. Die Height | mm | 300 | ||
Die Height Adjustment | mm | 80 | ||
Throat Depth | mm | 300 | ||
Between Columns | mm | 620 | ||
Bolster | LR | mm | 900 | |
FB | mm | 580 | ||
Thickness | mm | 110 | ||
Bolster Opening | mm | φ200×40 | ||
(Up Hole Dia.×Depth×Low Hole Dia.) | ×φ180 | |||
Slide Area | LR | mm | 680 | |
FB | mm | 400 | ||
Shank Hole | Dia. | mm | φ50 | |
Depth | mm | 80 | ||
Main Motor Power | kW | 7.5 | ||
Dimensions | FB | mm | 1680 | |
LR | mm | 1260 | ||
H | mm | 3050 | ||
Net Weight | kg | 6500 | ||
