JH21-60 Ton C Frame High Speed Power Press Machine - WORLD

Inquiry

Write a Review

JH21-60 Ton C Frame Power Press Machine - WORLD

JH21-60 Ton C Frame High Speed Power Press Machine - WORLD 4

JH21 Series 60 Ton C Frame High Speed Power Press Machine

JH21-60 Ton C Frame High Speed Power Press Machine - WORLD 5

JH21-60 Ton High Speed Power Press Machine - WORLD

PRODUCT SPECIFICATION

WORLD

ITEM		CODE	UNIT	JH21-60
NominalCapacity		Pe	KN	600
Slide Stroke Length		5	mm	140
Slide Strokes	Fixed		spm	70
Slide Strokes	Variabled(optional)		spm	45-75
Max.Die Shut Height		H2	mm	300
Die Shut Height Adjustment		t	mm	70
Throat Depth		C1	mm	270
Slide Bottom Size	FB	b	mm	400
Slide Bottom Size	LR	a	mm	480
Shank Hole Size	Diameter	d	mm	50
Shank Hole Size	Depth	l	mm	70
Table Size	FB	D	mm	520
	LR	C	mm	930
	Thickness	H3	mm	130
Table Hole Diameter			mm	150
Overall Dimensions	FB	A	mm	1540
	LR	B	mm	1200
	Height	H	mm	2570
Motor Power			KW	5.5

Why Choose Us ?

More than 30 years experiences, professional R&D team and production team.

3 years warranty for the self-produced wet type pneumatic clutch.

Quick delivery: 10 days for standard machines and 30 days for customized order.

About 80% parts are self-produced. Buyer can get the right parts in farther future.

Bigger manufacturer can provide more assurance for quality and future service.

APPLICATIONS

WORLD

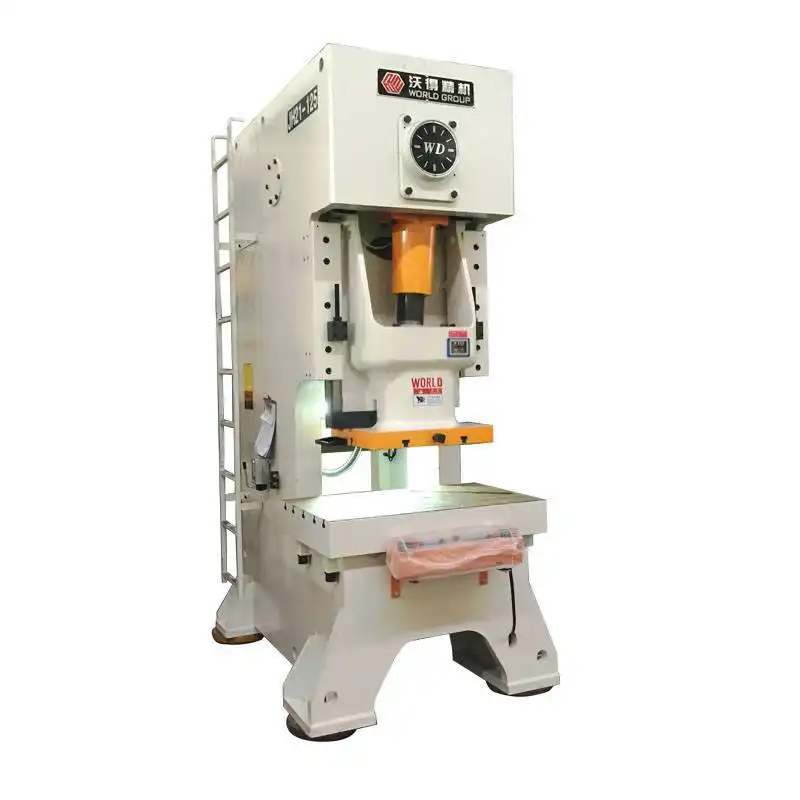

JH21-125 C Frame Pneumatic Press Machine

Adopt to sheet metal punching , cutting, bending, drawing,stamping,blanking and forging process

JH21-60 Ton C Frame High Speed Power Press Machine - WORLD 6

JH21-60 Ton C Frame High Speed Power Press Machine - WORLD 7

Automobile Stamping Parts

JH21-60 Ton C Frame High Speed Power Press Machine - WORLD 8

JH21-60 Ton C Frame High Speed Power Press Machine - WORLD 9

Household Appliance and Hardware

OUR CUSTOMERS

WORLD

JH21-60 Ton C Frame High Speed Power Press Machine - WORLD 12

JH21-60 Ton C Frame High Speed Power Press Machine - WORLD 13

JH21-60 Ton C Frame High Speed Power Press Machine - WORLD 14

JH21-60 Ton C Frame High Speed Power Press Machine - WORLD 15

JH21-60 Ton C Frame High Speed Power Press Machine - WORLD 16

JH21-60 Ton C Frame High Speed Power Press Machine - WORLD 17

OUR FACTORY

WORLD

WORLD GROUP

World group was established in 1988 as a private company in Danyang City, Jiangsu Province. World has 21 subsidiary companies totally. The main business is to produce and sell power press machines, agriculture machines,construction machines, auto parts and garden tools.

For 30 years, World group has been making suitable progress possible and driving positive change on each industry. World has applied for 573 patents and obtained 122 authorized patents, 404 utility models patents, 36 invention patents and 47 design patents. World is also a registered well-known trademark by SAIC.

With 2016 sales and revenues of $3.692 billion, World group is one of the TOP500 private companies in China and TOP100 companies in Jiangsu Province. Now, World is one of the leading power press manufacturers, the biggest combine harvester manufacturer, the biggest lawn mower manufacturer, and one of the main construction machines manufactures in China.
