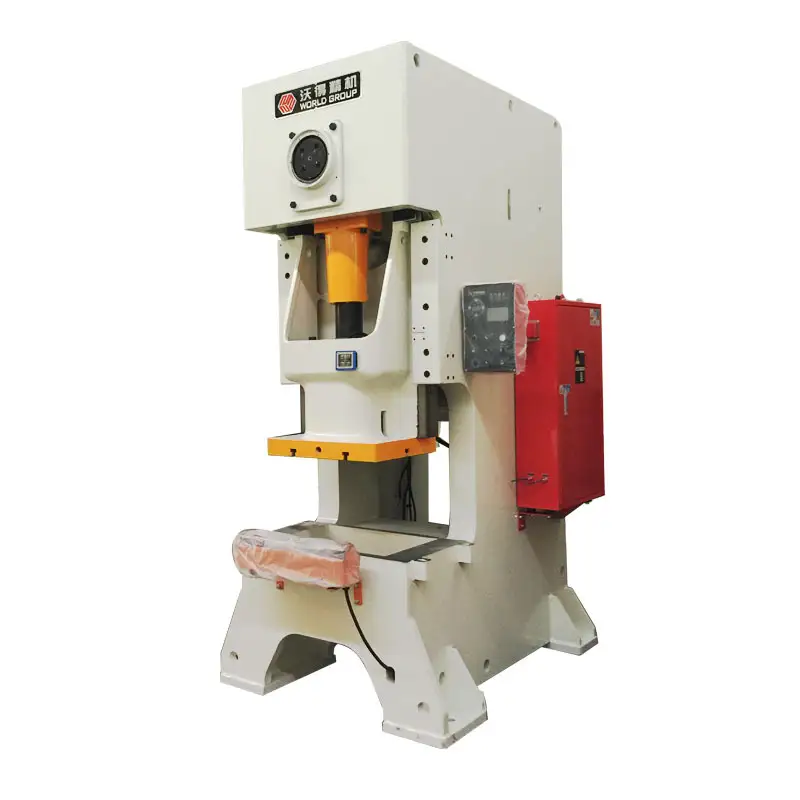

JH21-250 Ton Pneumatic Single Power Press Machines
PRODUCT SPECIFICATION
WORLD
| ITEM | CODE | UNIT | JH21-250 | |
| Nominal Capacity | Pe | KN | 2500 | |
| Slide Stroke Length | S | mm | 220 | |
| Slide Strokes | Fixed | spm | 30 | |
| Variable(optional) | spm | 20-35 | ||
| Max. Die Shut Height | H2 | mm | 500 | |
| Die Shut Height Adjustment | t | mm | 120 | |
| Throat Depth | C1 | mm | 450 | |
| Distance Between Uprights | d1 | mm | 980 | |
| Slide Bottom Size | FB | b | mm | 700 |
| LR | a | mm | 950 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 130 | |
| Table Size | FB | D | mm | 880 |
| LR | C | mm | 1500 | |
| Thickness | H3 | mm | 190 | |
| Table Hole Diameter | ¢ | mm | 260 | |
| Overall Dimensions | FB | A | mm | 2660 |
| LR | B | mm | 1640 | |
| Height | H | mm | 3850 | |
| Motor Power | KW | 22 | ||
| Weight(approximate) | kg | 23200 | ||
More than 30 years experiences, professional R&D team and production team.
3 years warranty for the self-produced wet type pneumatic clutch.
Quick delivery: 10 days for standard machines and 30 days for customized order.
About 80% parts are self-produced. Buyer can get the right parts in farther future.
Bigger manufacturer can provide more assurance for quality and future service.
DETAILS INTRODUCTION
WORLD
Wet type pneumatic clutch Imported clutch disc, NOK seals,
lower noise and maintenance cost, longer service life
Taiwan ISHAN grease pump
Auto grease lubrication for press
Japanese SHOWA hydraulic overload protected pump
Easy reset if overload
Panasonic or Omron PLC
HMI according to the working time or working stroke times.The press has both mechanical
and electrical cam controllers. The precision is 0.1mm.
The press is equipped withSiemens main motor.Higher efficiency levelreduces
energy consumption anddirectly saves costsfor users.
Japanese Toyooki or Taco brand safety solenoid valve
APPLICATIONS
WORLD
JH21-125 C Frame Pneumatic Press Machine
Adopt to sheet metal punching , cutting, bending, drawing,stamping,blanking and forging process
OUR CUSTOMERS
WORLD
WORLD
World group was established in 1988 as a private company in Danyang City, Jiangsu Province. World has 21 subsidiary companies totally. The main business is to produce and sell power press machines, agriculture machines,construction machines, auto parts and garden tools.
For 30 years, World group has been making suitable progress possible and driving positive change on each industry. World has applied for 573 patents and obtained 122 authorized patents, 404 utility models patents, 36 invention patents and 47 design patents. World is also a registered well-known trademark by SAIC.
With 2016 sales and revenues of $3.692 billion, World group is one of the TOP500 private companies in China and TOP100 companies in Jiangsu Province. Now, World is one of the leading power press manufacturers, the biggest combine harvester manufacturer, the biggest lawn mower manufacturer, and one of the main construction machines manufactures in China.
