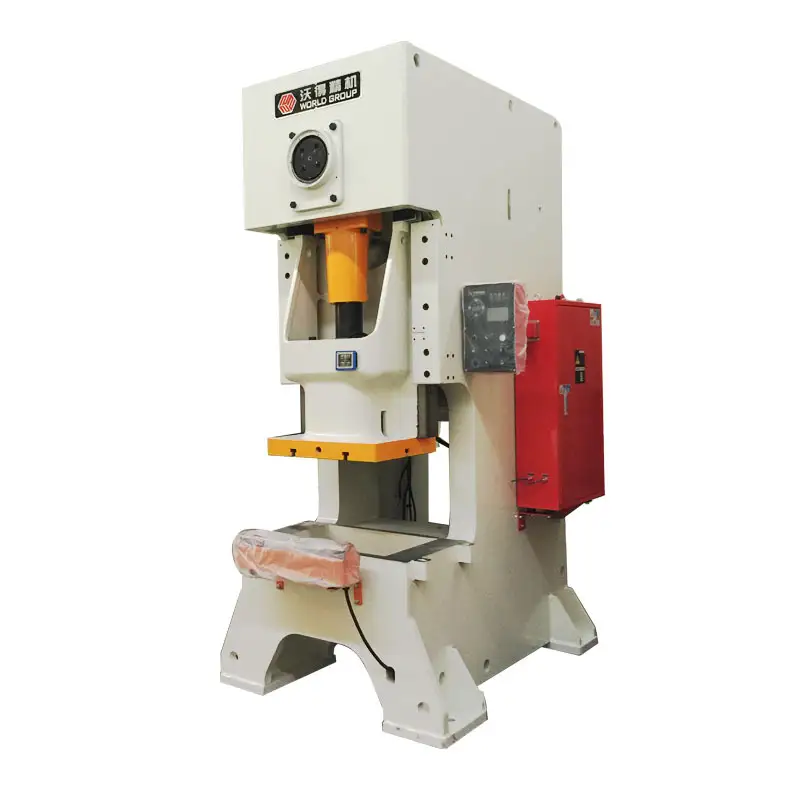

JH21-25 Ton Automated Silver Press Machine 1
JH21-25 Ton Automated Silver Press Machine 1

JH21-25 Ton Automated Silver Press Machine

    oops...!

    no product data.

    Go to homepage
    JH21-25 Ton Automated Silver Press Machine 2
    JH21-25 Ton Automated Silver Press Machine 3
    JH21-25 Ton Automated Silver Press Machine 4
    JH21-25 Ton Automated Silver Press Machine 5

    PRODUCT SPECIFICATION

    WORLD

    JH21-25 Ton Automated Silver Press Machine 6
    JH21-25 Ton Automated Silver Press Machine 7
    ITEMCODEUNITJH21-25
    Nominal CapacityPeKN250
    Slide Stroke LengthSmm80
    Slide StrokesFixed
    spm100
    Variable(optional)
    spm60-120
    Max. Die Shut HeightH2mm250
    Die Shut Height Adjustmenttmm50
    Throat DepthC1mm210
    Distance Between Uprightsd1mm450
    Slide Bottom SizeFBbmm250
    LRamm360
    Shank Hole SizeDiameterdmm40
    DepthImm65
    Table SizeFBDmm400
    LRCmm720
    ThicknessH3mm80
    Table Hole Diameter¢mm150
    Overall DimensionsFBAmm1500
    LRBmm945
    HeightHmm2120
    Motor Power
    KW3
    Weight(approximate)
    kg2450


    Why Choose Us ?

    More than 30 years experiences, professional R&D team and production team.

    3 years warranty for the self-produced wet type pneumatic clutch.

    Quick delivery: 10 days for standard machines and 30 days for customized order.

    About 80% parts are self-produced. Buyer can get the right parts in farther future.

    Bigger manufacturer can provide more assurance for quality and future service.

    DETAILS INTRODUCTION

    WORLD

    JH21-25 Ton Automated Silver Press Machine 8
    WORLD

    Wet type pneumatic clutch Imported clutch disc, NOK seals,

    lower noise and maintenance cost, longer service life

    JH21-25 Ton Automated Silver Press Machine 9
    WORLD

    Taiwan ISHAN grease pump

    Auto grease lubrication for press

    JH21-25 Ton Automated Silver Press Machine 10
    WORLD

    Japanese SHOWA hydraulic overload protected pump

    Easy reset if overload

    JH21-25 Ton Automated Silver Press Machine 11
    WORLD

    Panasonic or Omron PLC

    JH21-25 Ton Automated Silver Press Machine 12
    WORLD

    HMI according to the working time or working stroke times.The press has both mechanical

    and electrical cam controllers. The precision is 0.1mm.

    JH21-25 Ton Automated Silver Press Machine 13
    WORLD

    The press is equipped withSiemens main motor.Higher efficiency levelreduces

    energy consumption anddirectly saves costsfor users.

    JH21-25 Ton Automated Silver Press Machine 14
    WORLD

    Japanese Toyooki or Taco brand safety solenoid valve

    APPLICATIONS

    WORLD

    JH21-125 C Frame Pneumatic Press Machine

    Adopt to sheet metal punching , cutting, bending, drawing,stamping,blanking and forging process

    JH21-25 Ton Automated Silver Press Machine 15
    JH21-25 Ton Automated Silver Press Machine 16
    Read More
    JH21-25 Ton Automated Silver Press Machine 17
    JH21-25 Ton Automated Silver Press Machine 18
    Household Appliance and Hardware
    Read More

    OUR CUSTOMERS

    WORLD

    JH21-25 Ton Automated Silver Press Machine 19
    JH21-25 Ton Automated Silver Press Machine 20
    JH21-25 Ton Automated Silver Press Machine 21
    JH21-25 Ton Automated Silver Press Machine 22
    JH21-25 Ton Automated Silver Press Machine 23
    JH21-25 Ton Automated Silver Press Machine 24
    JH21-25 Ton Automated Silver Press Machine 25
    JH21-25 Ton Automated Silver Press Machine 26
    JH21-25 Ton Automated Silver Press Machine 27
    OUR FACTORY

    WORLD

    WORLD GROUP

    World group was established in 1988 as a private company in Danyang City, Jiangsu Province. World has 21 subsidiary companies totally. The main business is to produce and sell power press machines, agriculture machines,construction machines, auto parts and garden tools.

    For 30 years, World group has been making suitable progress possible and driving positive change on each industry. World has applied for 573 patents and obtained 122 authorized patents, 404 utility models patents, 36 invention patents and 47 design patents. World is also a registered well-known trademark by SAIC.

    With 2016 sales and revenues of $3.692 billion, World group is one of the TOP500 private companies in China and TOP100 companies in Jiangsu Province. Now, World is one of the leading power press manufacturers, the biggest combine harvester manufacturer, the biggest lawn mower manufacturer, and one of the main construction machines manufactures in China.
