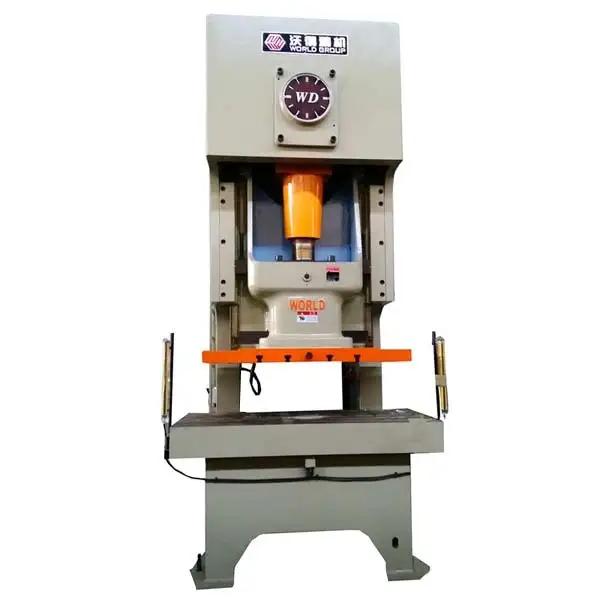

JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 1
JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 2
JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 3
JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 4
JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 5
JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 1
JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 2
JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 3
JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 4
JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 5

JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine

    oops...!

    no product data.

    Go to homepage
    Supply Ability
    2000
    Start Port
    Shanghai China
    Material
    Metal
    Delivery Time
    30 days
    Certification
    CE, CCC
    Availability
    OEM

    WORLD

    JH25 Double Crank C Frame Power Press

    Navigating the future,

    WORLD the first

    JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 6
    JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 7
    JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 8

    Amazing!!!

    JH25 Double Crank

    Power Presses

    Gap frame double crank automatic press is suitable for bie sheet parts stamping and progressive die stamping. JH25 series gap presses have capacity range from 110ton to 315ton, Six faces rectangular type slide guides, big torque wet type pneumatic clutch Cframe steel plate welded body, two crankshafts reverse rotated to eliminate each lateral force. Transmission gears are oil bath in the gear house. Automatic accessories such as decoiler, straightener, roller feeder and manipulators are optional.

    1F

    Benefits & Features

    Read More
    JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 9
    Wide table suitable for progressive die and muti-station die stamping

    Wider bolster and slide plate than single crank press, suitable for big size tools. C type body, open back, easier for side coil sheet feeding or front to back sheet feeding. Two tonnage. center points, bigger power at ram sides. Bolster surface grinding, higherflatness. Customized scrap dropping holes in bolster. Bolster and slide plate sizes are customizable. Standard T slots in bolster and slide plate.

    JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 10
    Big torque wet type pneumatic clutch with solenoid valve

    Self-produced high quality wet type combine clutch and brake, reliable and easier maintenance. ToyookiTaco/Ross brand dual-safety solenoid valve controls the clutch and brake working properly. Air pressure meter of clutch with safety air pressure switch ensures properly and safety opertation of the crank punching press. Safety clutch cover is also standard equipped.

    JH21 100T High Speed Electrical Metal Box Making Power Press Punching Machine 11
    Friendly easy operation HMI for automatic press machine

    LCD touch screen with setting and monitor functions. Operator can set the lubrication frequency and time, the cam angles. the cam controller type through the screen. Crankshaft angle indicator light. lubrication and overload alarm lights are easier for operator to check the press working status. Emergency stop button, working mode selecting swithes, overload reset switch are located on the panel. Counter and pre-set counter is convenient to arrange the production plan.

    Reverse rotated double crankshaft of the gap frame press machine

    Double crankshaft, 42CrMo forged and rolling treatment for more smooth surface. Reverse rotated to eliminate the lateral force. Copper conrod bush, high quality front and rear shaft bushes, all grease lubricated. Ball screw nitrogen treatment with high hardness. Proper two.transmission gears timing.

    Automatic powe press central control system

    Both mechanical and electric cam controllers. Cam controllers are selectable by the touch screen. Auxilliav user cam controllers are available. High quality encoder with famous brand PLC (Omron, Panansonic. Schneider).

    2F

    Technical Parameters

    Read More

    ITEM

    CODE

    UNIT

    JH25-110

    JH25-160

    JH25-200

    JH25-250

    JH25-315

    Nominal Capacity

    Pe

    KN

    1100

    1600

    2000

    2500

    3150

    Stroke Length

    S

    mm

    180

    200

    250

    280

    280

    Stroke Speed

    Fixed


    spm

    50

    45

    35

    30

    30

    Variable(optional)


    spm

    35-55

    35-55

    25-40

    20-35

    20-35

    Max. Die Shut Height

    H2

    mm

    400

    450

    500

    550

    550

    Die Shut Height Adjustment

    t

    mm

    90

    100

    110

    120

    120

    Throat Depth

    G

    mm

    350

    390

    430

    470

    480

    Distance Between Uprights

    N

    mm

    1470

    1600

    1920

    2190

    2170

    Table Size

    F-B

    D

    mm

    680

    760

    840

    920

    940

    L-R

    C

    mm

    1880

    2040

    2420

    2700

    2800

    Thickness

    H3

    mm

    155

    165

    170

    180

    190

    Slide Bottom Size

    F-B

    b

    mm

    520

    580

    650

    700

    700

    L-R

    a

    mm

    1400

    1500

    1850

    2100

    2100

    Table Surface Height

    H1

    mm

    900

    900

    1000

    1100

    1090

    Overall Dimensions

    F-B

    A

    mm

    1820

    2080

    2370

    2700

    2730

    L-R

    B

    mm

    1970

    2150

    2550

    2850

    2840

    Height

    H

    mm

    3200

    3380

    3820

    4180

    4180

    Motor Power


    KW

    11

    18.5

    22

    30

    37

    Weight(approximate)


    kg

    14000

    19000

    2650

    35000

    36000


    3F

    Optional Parts
    Read More

    Light curtain for safety Die quick change device Bellow type die cushion Inverter to adjust stroke speed 3 in 1 servo NC feeder Transfer system
