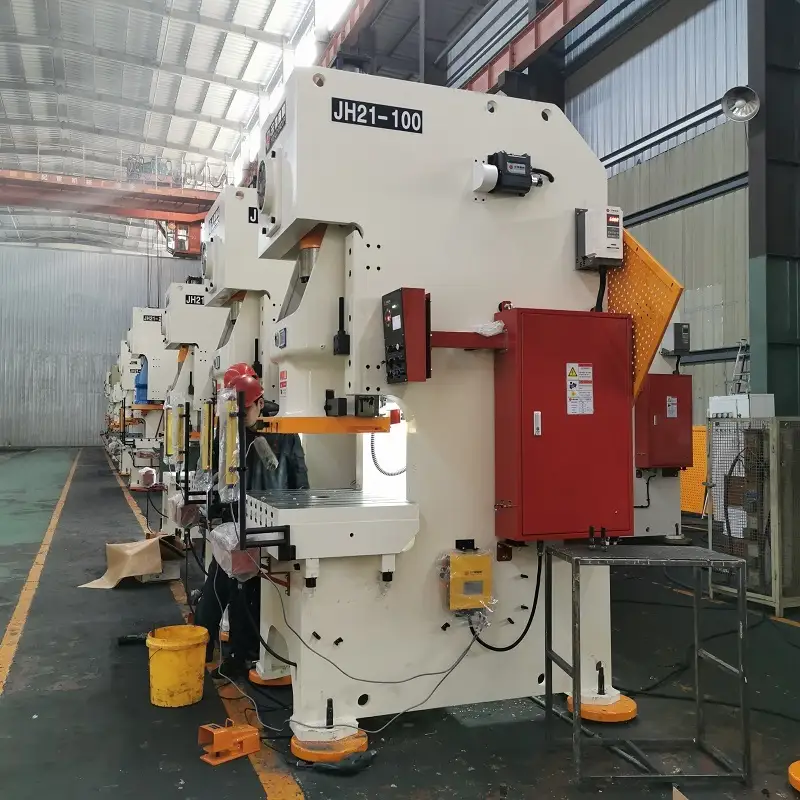

JH21- 100 ton Stamping Steel Die Sheet Metal Feeder C Type Pneumatic Power Press

Place of Origin:

Jiangsu China

Payment:

L/C, T/T

MOQ:

Model:

JH21-100

Brand:

WORLD

Inquiry

Write a Review

Supply Ability

2000 Unit/Units per Year

Start Port

Shanghai China

Material

Metal

Delivery Time

30 days

Certification

CE, CCC

Availability

OEM

Item		Code	Unit	JH21-25	JH21-45	JH21-60	JH21-80	JH21-100	JH21-125
Nominal Capacity		Pe	kn	250	450	600	800	1000	1250
Slide Stroke Length		S	mm	80	120	140	160	160	180
Slide Strokes	Fixed		spm	100	80	70	60	55	50
Slide Strokes	Variable (optional)		spm	60-120	50-95	45-85	40-75	35-65	35-65
Max. Die Shut Height		H2	mm	250	270	300	320	335	350
Die Shut Height Adjustment		t	mm	50	60	70	80	90	90
Throat Depth		C1	mm	210	225	270	310	330	350
Distance Between Uprights		d1	mm	450	515	560	610	670	670
Slide Bottom Size	FB	b	mm	250	340	400	460	520	520
Slide Bottom Size	LR	a	mm	360	410	480	540	620	620
Shank Hole Size	Diameter	d	mm	40	50	50	50	70	70
Shank Hole Size	Depth	I	mm	65	60	70	65	90	90
Table Size	FB	D	mm	400	440	520	600	640	680
	LR	C	mm	720	825	930	950	1060	1100
	Thickness	H3	mm	80	110	130	140	145	155
Table Hole Diameter		¢	mm	150	150	150	180	180	200
Overall Specs	FB	A	mm	1500	1585	1540	1765	2000	2040
	LR	B	mm	945	1075	1200	1200	1300	1320
	Height	H	mm	2120	2390	2570	2725	3010	3035
Motor Power			kw	3	5.5	5.5	7.5	7.5	11
Weight (approximate)			kg	2450	3550	5150	6450	8650	9550

Advantage:

1. The main body is welded with high quality steel plate. It will be heat treated and ball blasting treated to release the stress and improve the rigidity.

The press adopts Panasonic or Omron PLC with high stability and longer service life.

The wet cultch produced by World is made up of the best seals, bearing and friction discs. It features lower noise and longer service life.

The control panel includes double hand buttons and emergency stop button and foot pedal control switch is optional.

The press is equipped with auto lubrication pump and it is easy for maintenance.

The hydraulic overload protected pump is used to protect the press and the die from overloading.

The motorized slide adjusting device is adopted with a thin brake motor and operated with push buttons. It offers stable positioning accuracy and quick adjustment.
