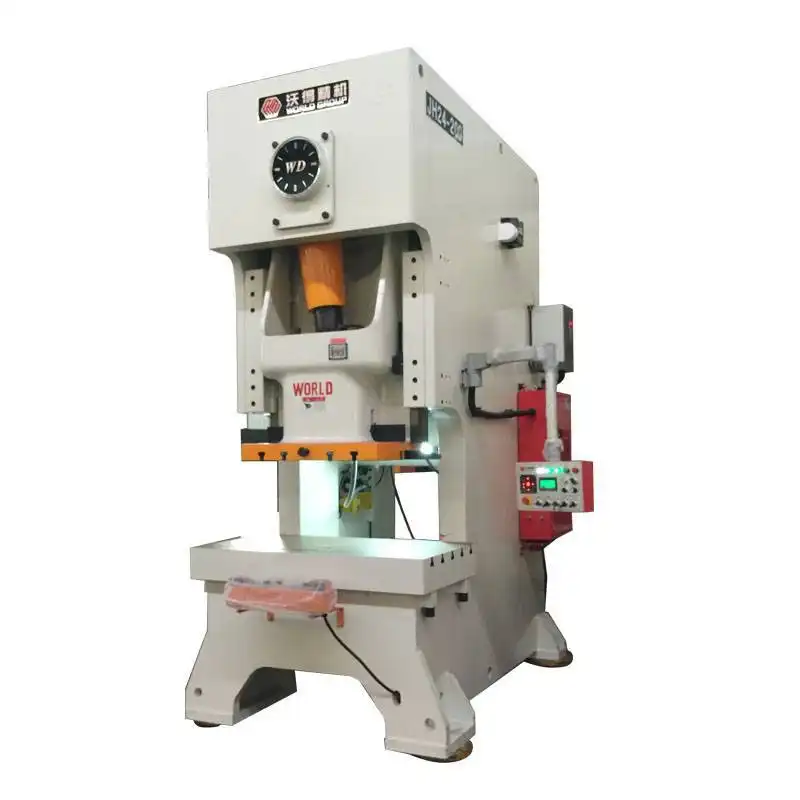

    JH21 100 Ton Press Machine
    JH21-100 Ton Press Machine in Punching Machines 3
    JH21 100 Ton Press Machine Press Punching Machines
    JH21-100 Ton Press Machine in Punching Machines 4
    JH21-100 Ton Press Machine in Punching Machines
    JH21-100 Ton Press Machine in Punching Machines 5
    JH21-100 Ton Press Machine in Punching Machines

    PRODUCT SPECIFICATION

    WORLD

    ITEMCODEUNITJH21-100
    Nominal CapacityPeKN1000
    Slide Stroke LengthSmm160
    Slide StrokesFixed
    spm55
    Variable(optional)
    spm35-65
    Max. Die Shut HeightH2mm335
    Die Shut Height Adjustmenttmm90
    Throat DepthC1mm330
    Distance Between Uprightsd1mm670
    Slide Bottom SizeFBbmm520
    LRamm620
    Shank Hole SizeDiameterdmm70
    DepthImm90
    Table SizeFBDmm640
    LRCmm1060
    ThicknessH3mm145
    Table Hole Diameter¢mm180
    Overall DimensionsFBAmm2000
    LRBmm1300
    HeightHmm3010
    Motor Power
    KW7.5
    Weight(approximate)
    kg8650


    Why Choose Us ?

    More than 30 years experiences, professional R&D team and production team.

    3 years warranty for the self-produced wet type pneumatic clutch.

    Quick delivery: 10 days for standard machines and 30 days for customized order.

    About 80% parts are self-produced. Buyer can get the right parts in farther future.

    Bigger manufacturer can provide more assurance for quality and future service.

    DETAILS INTRODUCTION

    WORLD

    JH21-100 Ton Press Machine in Punching Machines 6
    WORLD

    Wet type pneumatic clutch Imported clutch disc, NOK seals,

    lower noise and maintenance cost, longer service life

    JH21-100 Ton Press Machine in Punching Machines 7
    WORLD

    Taiwan ISHAN grease pump

    Auto grease lubrication for press

    JH21-100 Ton Press Machine in Punching Machines 8
    WORLD

    Japanese SHOWA hydraulic overload protected pump

    Easy reset if overload

    JH21-100 Ton Press Machine in Punching Machines 9
    WORLD

    Panasonic or Omron PLC

    JH21-100 Ton Press Machine in Punching Machines 10
    WORLD

    HMI according to the working time or working stroke times.The press has both mechanical

    and electrical cam controllers. The precision is 0.1mm.

    JH21-100 Ton Press Machine in Punching Machines 11
    WORLD

    The press is equipped withSiemens main motor.Higher efficiency levelreduces

    energy consumption anddirectly saves costsfor users.

    JH21-100 Ton Press Machine in Punching Machines 12
    WORLD

    Japanese Toyooki or Taco brand safety solenoid valve

    APPLICATIONS

    WORLD

    JH21-125 C Frame Pneumatic Press Machine

    Adopt to sheet metal punching , cutting, bending, drawing,stamping,blanking and forging process

    JH21-100 Ton Press Machine in Punching Machines 13
    JH21-100 Ton Press Machine in Punching Machines 14
    Read More
    JH21-100 Ton Press Machine in Punching Machines 15
    JH21-100 Ton Press Machine in Punching Machines 16
    Household Appliance and Hardware
    Read More

    OUR CUSTOMERS

    WORLD

    JH21-100 Ton Press Machine in Punching Machines 17
    JH21-100 Ton Press Machine in Punching Machines 18
    JH21-100 Ton Press Machine in Punching Machines 19
    JH21-100 Ton Press Machine in Punching Machines 20
    JH21-100 Ton Press Machine in Punching Machines 21
    JH21-100 Ton Press Machine in Punching Machines 22
    JH21-100 Ton Press Machine in Punching Machines 23
    JH21-100 Ton Press Machine in Punching Machines 24
    JH21-100 Ton Press Machine in Punching Machines 25
    OUR FACTORY

    WORLD

    WORLD GROUP

    World group was established in 1988 as a private company in Danyang City, Jiangsu Province. World has 21 subsidiary companies totally. The main business is to produce and sell power press machines, agriculture machines,construction machines, auto parts and garden tools.

    For 30 years, World group has been making suitable progress possible and driving positive change on each industry. World has applied for 573 patents and obtained 122 authorized patents, 404 utility models patents, 36 invention patents and 47 design patents. World is also a registered well-known trademark by SAIC.

    With 2016 sales and revenues of $3.692 billion, World group is one of the TOP500 private companies in China and TOP100 companies in Jiangsu Province. Now, World is one of the leading power press manufacturers, the biggest combine harvester manufacturer, the biggest lawn mower manufacturer, and one of the main construction machines manufactures in China.
