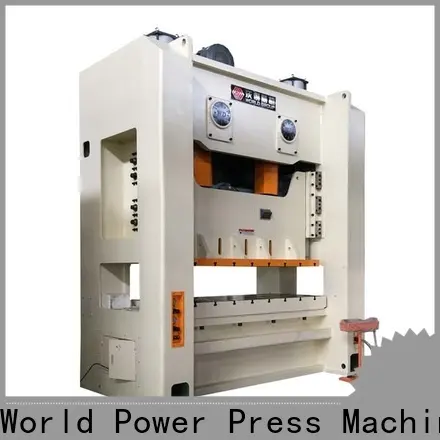

hot-sale mechanical power press machine for die stamping

Company Advantages
1. mechanical power press machine produced by Shanghai Yingxin World Machinery Co., Ltd. retain the existing structure yet integrated advantages of . The high-quality seals in the hydraulic system offer excellent sealing performance
2. Shanghai Yingxin World Machinery Co., Ltd. has developed a series of mechanical power press machine products with leading domestic level. Processed by sandblasting, it has enhanced fatigue resistance
3. As our QC experts strictly control the quality throughout the whole production process, the quality of the product can be fully guaranteed. The product will stop immediately once it is overload than 110% to protect both the press and the die

Item		Code	Unit	JW36-110	JW36-160	JW36-200	JW36-250
Nominal Capacity			kn	1100	1600	2000	2500
Slide Stroke Length		S	mm	180	200	250	280
Slide Stroke Speed	Fixed		spm	50	45	35	30
	Variable (Optional)		spm	35-55	35-55	25-40	20-35
Max. Die Shut Height		H2	mm	400	450	500	550
Die Shut Height Adjustment		t	mm	90	100	110	120
Side Window Size	F-B	E	mm	650	800	900	950
	Height	F	mm	350	400	450	460
Distance Between Uprights		G	mm	1750	1900	2290	2570
Table Size	F-B	D	mm	700	760	900	1000
	L-R	C	mm	1650	1800	2200	2500
	Thickness	H3	mm	140	150	170	180
Slide Bottom Size	F-B	b	mm	600	700	800	900
	L-R	a	mm	1350	1500	1900	2200
Table Surface Height		H1	mm	1035	1035	1135	1235
Overall Dimensions	F-B	A	mm	2050	2400	2650	2900
	L-R	B	mm	2400	2650	3150	3450
	Height	H	mm	3450	3950	4280	4800
Motor Power			kw	11	18.5	22	30
Weight (Approximate)			kg	18000	22000	33000	42000
