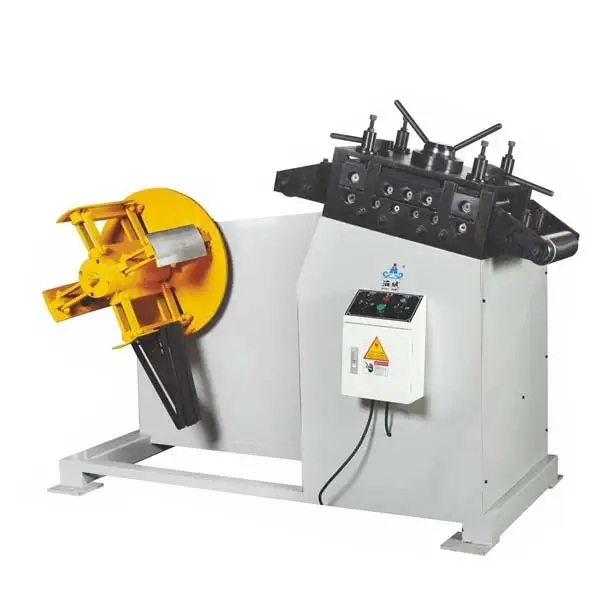

High Precision Metal Sheet NC Servo Feeder for Punching Machine

    oops...!

    no product data.

    Go to homepage
    High Precision Metal Sheet NC Servo Feeder for Punching Machine 7
    High Precision Metal Sheet NC Servo Feeder for Punching Machine 8
    High Precision Metal Sheet NC Servo Feeder for Punching Machine 9
    High Precision Metal Sheet NC Servo Feeder for Punching Machine 10

    PRODUCT SPECIFICATION

    WORLD

    High Precision Metal Sheet NC Servo Feeder for Punching Machine 11
    High Precision Metal Sheet NC Servo Feeder for Punching Machine 12

    TNCF4 Specifications:

    Item/Mode

    TNCF4-300

    TNCF4-400

    TNCF4-500TNCF4-600TNCF4-700NTCF4-800TNCF4-1000TNCF4-1300
    Width of Material(mm)75-30075-40075-40075-60075-70075-80075-100075-1300
    Thickness of Material(mm)0.5-4.5
    Max.coil Weight(kg)2T3T5T8T
    Coil L.D.(mm)508
    Max.Coil O.D.(mm)1500
    Feed Pitch Accuracy(mm)±0.15
    Feed ROLLUpper1 / Lower1
    Straighten  ROLLUpper4 / Lower3
    Voltage380VAc / 60Hz
    Air power supply5kg / CM²
    Uncoiler ExpansionHydraulic
    Servo Motor(kw)AC2.9

    AC4.5

    AC5.5
    Uncoiler  Motor(kw)1.5 KW2.2 KW3 KW
    Coil Car   1                                        optionalstandard
    Pass line±100 MM



    TNCF5 Specification :

    Item/ModelTNCF5-400TNCF5-500TNCF5-600TNCF5-700

    TNCF5-800

    TNCF5-1000TNCF5-1300TNCF5-1500
    Width of Material(mm)75-40075-50075-60075-70075-80075-100075-130075-1500
    Thickness of Material(mm)0.6-6
    Max.coil Weight(kg)3T 5T8T
    weight can be customized
    Coil L.D.(mm)508
    Max.Coil O.D.(mm)1500
    Max.Speed(m/min)16
    Feed Pitch Accuracy(mm)±0.15
    Feed ROLLUpper1 / Lower1
    Straighten  ROLLUpper4 / Lower3
    Voltage380VAc / 60Hz
    Air power supply380VAc / 60Hz
    Uncoiler ExpansionHydraulic
    Servo Motor(kw)AC2.9AC4.4   AC5.5AC7.5
    with servo reducer
    Uncoiler  Motor(kw)1.5 KW2.2 KW3 KW


    Why Choose Us ?

    More than 30 years experiences, professional R&D team and production team.

    3 years warranty for the self-produced wet type pneumatic clutch.

    Quick delivery: 10 days for standard machines and 30 days for customized order.

    About 80% parts are self-produced. Buyer can get the right parts in farther future.

    Bigger manufacturer can provide more assurance for quality and future service.

    APPLICATIONS

    WORLD

    Applicaion

    WORLD

    High Precision Metal Sheet NC Servo Feeder for Punching Machine 13
    High Precision Metal Sheet NC Servo Feeder for Punching Machine 14
    High Precision Metal Sheet NC Servo Feeder for Punching Machine 15

    OUR CUSTOMERS

    WORLD

    High Precision Metal Sheet NC Servo Feeder for Punching Machine 16
    High Precision Metal Sheet NC Servo Feeder for Punching Machine 17
    High Precision Metal Sheet NC Servo Feeder for Punching Machine 18
    High Precision Metal Sheet NC Servo Feeder for Punching Machine 19
    High Precision Metal Sheet NC Servo Feeder for Punching Machine 20
    High Precision Metal Sheet NC Servo Feeder for Punching Machine 21
    High Precision Metal Sheet NC Servo Feeder for Punching Machine 22
    High Precision Metal Sheet NC Servo Feeder for Punching Machine 23
    High Precision Metal Sheet NC Servo Feeder for Punching Machine 24
    OUR FACTORY

    WORLD

    WORLD GROUP

    World group was established in 1988 as a private company in Danyang City, Jiangsu Province. World has 21 subsidiary companies totally. The main business is to produce and sell power press machines, agriculture machines,construction machines, auto parts and garden tools.

    For 30 years, World group has been making suitable progress possible and driving positive change on each industry. World has applied for 573 patents and obtained 122 authorized patents, 404 utility models patents, 36 invention patents and 47 design patents. World is also a registered well-known trademark by SAIC.

    With 2016 sales and revenues of $3.692 billion, World group is one of the TOP500 private companies in China and TOP100 companies in Jiangsu Province. Now, World is one of the leading power press manufacturers, the biggest combine harvester manufacturer, the biggest lawn mower manufacturer, and one of the main construction machines manufactures in China.
