Four Column Hydraulic Workshop Press Price 400 Ton Press Machines

Place of Origin:

Jiangsu China

Payment:

L/C, D/P

MOQ:

Model:

YW32-315

Brand:

WORLD

Inquiry

Write a Review

Supply Ability

1000 Unit/Units per Year

Start Port

Shanghai China

Material

Metal

Delivery Time

45 days

Certification

CE, CCC

Availability

OEM

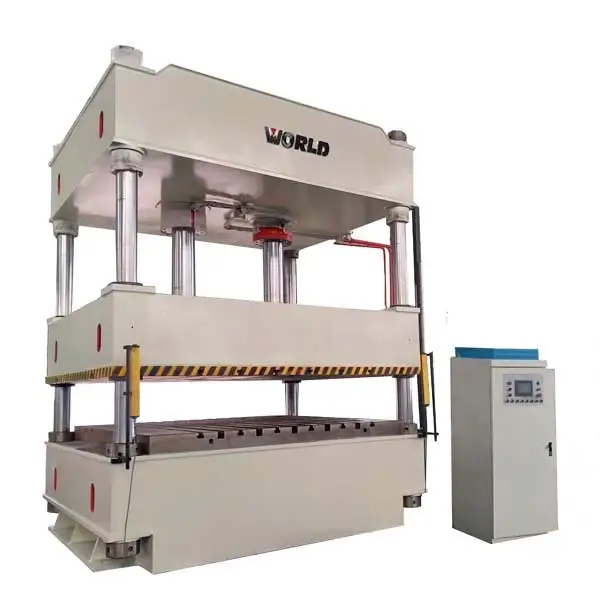

Four Column Hydraulic Workshop Press Price 400 Ton Press Machines

Four column hydraulic press is applicable for drawing, bending, flanging, cold extruding and blanking process for metal materials. It is also applicable for adjusting, press-in and forming process for powder and abrasive products, plastic and insulation materials. The hydraulic press adopts 3 beam and 4 column compact structure, simple, economic and practical. Adopting button common control with two operation modes: adjustment or two hand single cycle operation. Preset stroke forming or preset pressure forming process can be selected.

MODEL			YW27-200	YW27-315	YW27-400	YW27-400A	YW27-400B	YW27-500	YW27-630
Capacity		kN	2000	3150	2000	4000	4000	5000	6300
Hydraulic cushion capacity		kN	1200	1500	1500	2000	1000	1500	2000
Slide Stroke		mm	800	1000	1000	1200	500	1000	1500
Hydraulic cushion Stroke		mm	260	300	350	350	200	300	400
Max. Shut Height		mm	1200	1600	1500	2000	1100	1400	2000
Bolster movement distance		mm			2000	2400		1600	2700
Slide Speed	Idle Stroke	mm/s	220	200	200	250	180	220	200
	Pressing	mm/s	15-25	10-15	9-15	10-25	10-25	8-20	6-15
	Return	mm/s	160	150	150	150	120	160	150
Ejecting Speed	Eject	mm/s	60	60	60	60	60	80	80
Ejecting Speed	Return	mm/s	100	100	100	80	80	120	100
Bolster Size	LR	mm	1000	2500	2700	3000	1700	2000	4500
Bolster Size	FB	mm	1000	1600	1500	2000	1400	1400	2500
Main Motor Power		kW	15	22	44	44	44	44	67
