Bending Machine PLC 100 Ton Hydraulic NC Press Brake Machine

Place of Origin:

Jiangsu China

Payment:

L/C, T/T

MOQ:

Model:

WC67Y

Brand:

WORLD

Inquiry

Write a Review

Supply Ability

1000 Unit/Units per Year

Start Port

Shanghai China

Material

Metal

Delivery Time

30 days

Certification

CE, CCC

Availability

OEM

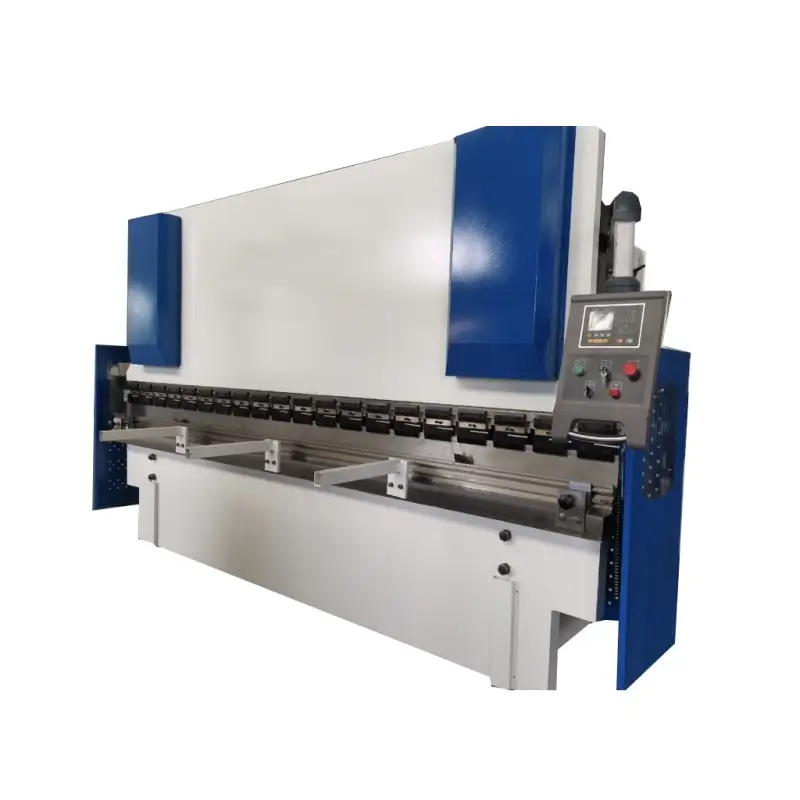

WC67Y Hydraulic Press Brake

WC67Y hydraulic press brake is a type of sheet metal bending machine, which is suitable for sheet metal plate bending process. The press brake capacity ranges from 40 ton to 400 ton and the table length from 2 meters to 6 meters.

The press brake is standard equipped with Siemens motor, Sunny pump, Rexroth valve, Estun E21 NC system and standard punch and die. Customized punch and die are optional. Delem DA41 CNC system with servo motor is available too.

Bending Machine PLC 100 Ton Hydraulic NC Press Brake Machine 6

SPECIFICATION

Items	unit	WC67Y-40/2500		WC67Y-63/3200	WC67Y-80/3200	WC67Y-125/3200
Nominal pressure	kN	400		630	800	1250
Length of table	mm	2500		3200	3200	3200
Distance between uprights	mm	1900		2300	2300	2600
Throat depth	mm	200		250	320	320
Ram stroke	mm	110		120	120	120
Daylight	mm	370		380	380	380
Approach speed	mm/s	120		100	110	110
Bend speed	mm/s	10		9	10	10
Return speed	mm/s	100		90	100	90
Main motor	kW	5.5		5.5	7.5	7.5
Length	mm	2600		3400	3400	3400
Width	mm	1350		1400	1400	1500
Height	mm	2100		2400	2300	2500
Weight (approximate)	kg	2800		4800	5500	6800
Items	unit	WC67Y-160/3200	WC67Y-200/3200		WC67Y-250/4000	WC67Y-300/3200
Nominal pressure	kN	1600	2000		2500	3000
Length of table	mm	3200	3200		4000	3200
Distance between uprights	mm	2400	2400		3000	2600
Throat depth	mm	320	320		400	400
Ram stroke	mm	160	200		250	250
Daylight	mm	450	450		450	500
Approach speed	mm/s	100	90		90	90
Bend speed	mm/s	10	9		8	8
Return speed	mm/s	90	90		90	80
Main motor	kW	11	15		18.5	18.5
Length	mm	3300	3400		4200	3400
Width	mm	1700	1900		2000	2200
Height	mm	2700	2700		3200	3200
Weight (approximate)	kg	11000	13500		20000	21000

CUSTOMER GROUPS

factories, manufacturing plants, such as auto parts manufacturers, household appliances such as air conditioners, refrigerators, washing machines, dishes, kitchen sinks, motorcycle parts manufacturers, chain manufacturers, computer electronics manufacturers, etc.

FEATURES

FULLY WELDED STEEL FRAME WITH FULL STRENGTH AND RIGIDITY.
