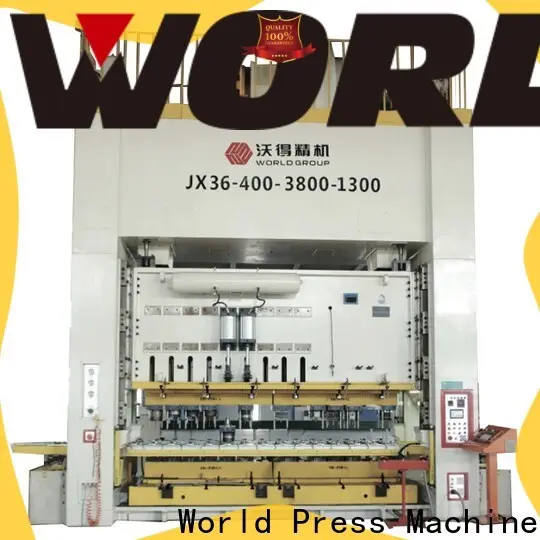

WORLD industrial power press for business for customization

Company Advantages
1. The unique material of industrial power press makes it a . It adopts pneumatic cylinder structure to avoid machine shaking caused by weight
2. Shanghai Yingxin World Machinery Co., Ltd. is strictly confident in the quality of industrial power press and free sample is no problem for testing. The product is equipped with Siemens main motor and Schneider electric components for further accuracy.
3. The product is corrosion resistant. Its metal parts have been treated with surface paint to guard against oxidization and rust. The high-quality friction discs ensure its long service life
4. The product is distinguished by earthquake resistance. Made of heavy-duty materials and designed with strong construction, it can resist any form of sharp vibrations. Its double-hand control buttons give a safety guarantee for the operator

Item		JX36-400	JX36-500	JX36-630	JX36-800	JX36-1000
Nominal Capacity	kn	400	5000	6300	8000	10000
Rated Tonnage Point	mm	9	12	12	12	12
Stoke Length	mm	300	300	350	350	400
Stroke Speed	spm	20-35	20-35	20-30	15-25	15-25
Max. Die Shut Height	mm	650	650	700	800	900
Die Shut Height Adjustment	mm	200	200	250	250	250
Table Size (FBxLR)	mm	1300×3000	1500×3000	1500×3600	2000×4000	2000×4000
Table Thickness	mm	220	220	250	250	250
Slide Bottom Size (FB-LR)	mm	1300×3000	1500×3000	1500×3600	2000×4000	2000×4000
Window Opening (FBxH)	mm	1000×650	1100×650	1200×700	1600×800	1600×900
Table Height	mm	710	710	710	710	710
Motor Power	kw	45	55	75	75	90
Overall Dimensions (LxWxH)	mm		3330x4650x 7250	3800x5400x 7700	4200x6150x 9200	4600x6150x 9900
Approximate Weight	t	80	90	120	150	190

Company Features
1. In order to become a more competitive company, the introduction of talent and the development of new technologies have become especially important for WORLD.
2. Our business touches the lives of millions of people and we understand that we can have a bigger impact by working collaboratively with partners. We amplify what we do internally and working collaboratively with our clients to support their corporate responsibility agendas. Get price!
