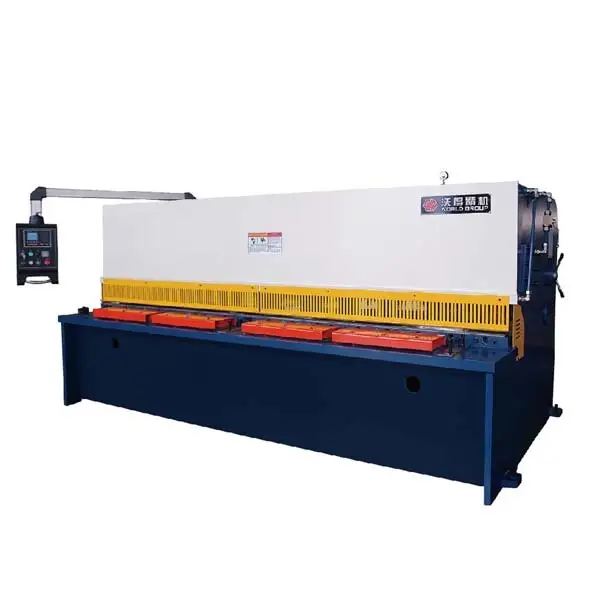

QC12Y-6x2500 Shearing Machine for Metal Hydraulic Shearing Machine
QC12Y Series Metal Hydraulic Swing Beam Shear
- World’s heaviest and most robust swing beam shear construction.
- Proven reliable design frame with rigid swing style upper beam.
- Fast-adjusting device for blade clearance.
- Optimized cutting angle for minimized distortion.
- Oversized roller bearing guides and box constructed swing beam for constant blade gap over full cutting length contribute to straight cuts.
- Easy and low maintenance operation.
SPECIFICATION
| Items | unit | QC12Y-4x3200 | QC12Y-6x2500 | QC12Y-8x2500 | QC12Y-8x3200 | QC12Y-10x3200 | QC12Y-12x3200 |
| Max. cutting thickness | mm | 4 | 6 | 8 | 8 | 10 | 12 |
| Max. cutting width | mm | 3200 | 2500 | 2500 | 3200 | 3200 | 3200 |
| Tensile strength of plate to be cut | N/mm2 | 450 | 450 | 450 | 450 | 450 | 450 |
| Cutting angle | deg | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2 |
| Travel distance of back gauge | mm | 20-600 | 20-600 | 20-600 | 20-600 | 20-600 | 20-800 |
| Throat depth | mm | 150 | 150 | 150 | 150 | 150 | 150 |
| Stroke speeds | spm | 14 | 15 | 14 | 12 | 10 | 10 |
| Main motor | kW | 5.5 | 7.5 | 7.5 | 7.5 | 15 | 15 |
| Voltage | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | |
| Overall dimension (LxWxH) | mm | 3840 | 3040 | 3040 | 3860 | 3860 | 4000 |
| 1500 | 1650 | 1700 | 1700 | 1700 | 1800 | ||
| 1600 | 1700 | 1700 | 1700 | 1700 | 1700 | ||
| Weight (approximate) | kg | 4600 | 4800 | 5600 | 6200 | 8000 | 10800 |
Details and standard configurations
Schneider electrics
Optional CNC systems prices and details
Yingxin World Machinery was established in Shanghai in 2009 authorized by World Group to act as an exporting center for all World brand machines including the power press machines, hydraulic shearing machines, hydraulic press brakes and automatic accessories.World Precise Machinery (China) is the biggest branch factory of World Group which is focusing on producing and technology researching of power press machines. The original factory was built in 1953 to produce small eccentric punching machines for new China industry.World Group bought this factory in 1998 and expanded the production capacity and the product ranges.
