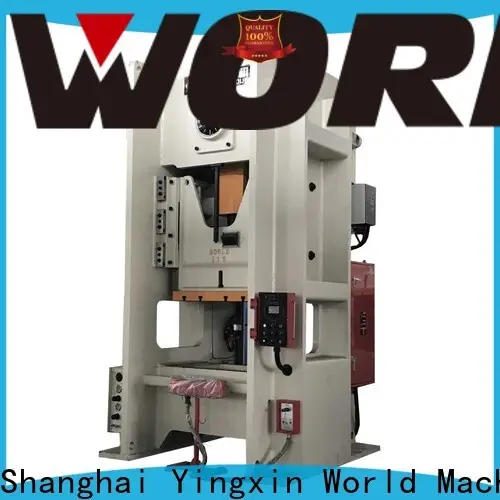

popular power press easy-operated for wholesale

Company Advantages
1. power press is made of high quality materials with perfect performance such as . Its PLC control system can be a Panasonic or Mitsubishi brand
2. Shanghai Yingxin World Machinery Co., Ltd. review and manage suppliers together with R&T and Procurement, ensure power press meet management requirement. Fabricated by heat treatment, its steel welded body has high rigidity
3. Advanced testing equipment and perfect quality assurance system ensure the product to be of great quality. Adopting the hydraulic system, it needs little maintenance

Item		Code	Unit	JW31-315	JW31-400	JW31-500
Nominal Capacity		Pe	kn	3150	4000	5000
Slide Stroke		s	mm	220	250	250
Slide Stroke Speed	Fixed	n	spm	30	25	20
	Variable (Optional)	n	spm	20-35	20-30	15-25
Max. Die Shut Height		H2	mm	550	600	650
Die Shut Height Adjustment		t	mm	120	120	120
Side Window Size	F-B	E	mm	850	900	1000
	Height	F	mm	480	520	650
Distance Between Uprights		G	mm	1350	1450	1650
Table Size	F-B	D	mm	850	900	1000
	L-R	C	mm	1250	1350	1500
	Thickness	H3	mm	190	200	220
Table Hole Diameter			mm	220	220	220
Slide Bottom Size	F-B	b	mm	800	850	950
	L-R	a	mm	1000	1100	1250
Table Surface Height		H1	mm	1215	1225	1225
Overall Dimensions	F-B	A	mm	2600	2700	3100
	L-R	B	mm	2200	2370	2600
	Height	H	mm	4550	4900	5400
Motor Power			kw	30	37	45
Weight (Approximate)			kg	30000	36500	47500

Company Features
1. We have built a first-class factory that has high manufacturing precision and trusted by customers of all type. It operates to international standards, offering the ultimate quality and efficiency.
2. Highly qualified employees are one of our key competitive factors. They relentlessly pursue performance excellence through shared goals, open communication, clear role expectations, and company operating rules.
