Company Advantages
· WORLD c power press is processed by specialized and highly efficient production lines.
· It is widely recognized with high performance and low cost.
· World Press Machine has been working hard to improve c power press and serve every customer with care.
WORLD
Navigating the future,
WORLD the first
Amazing!!!

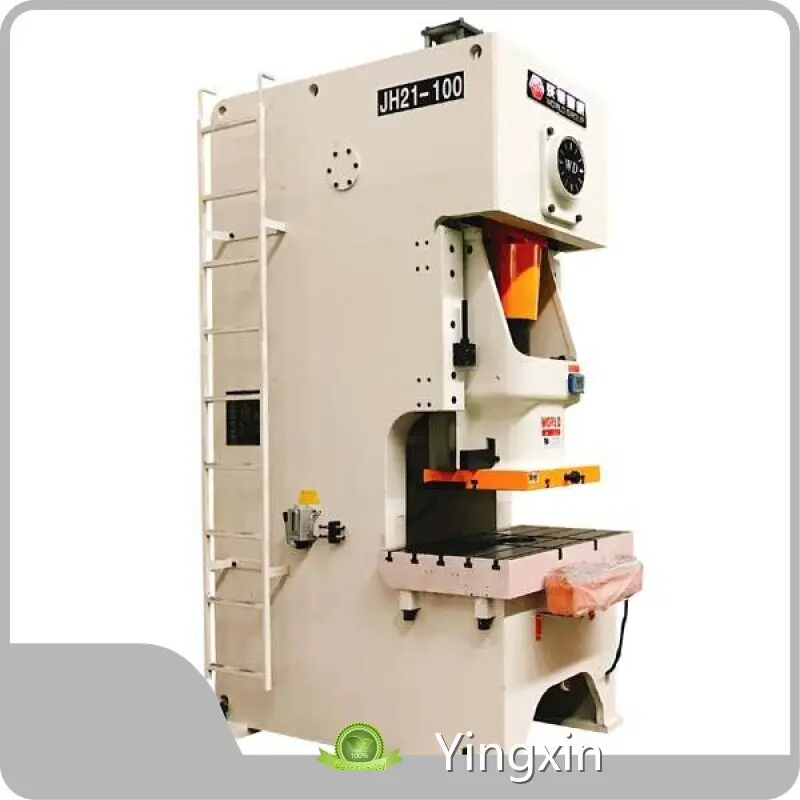

JH21 Model Presses
Most popular c type press machine for sheet metal parts stamping, punching, cutting, bending, trimming and blanking process. Press tonnages are from 25ton to 400ton. JH21 c frame press is standard equip with PLC, touch screen HMl, wet type pneumatic clutch and brake, safety solenoid valve. hydraulic overload pump,automatic grease lubricant pump and slide balance clinders, Safety light barriers, frequency inverter for adjustable stroke speeds, pistion type die cushion, die quick change clamps, tonnage monitor, safety die lock are all optional. This single crank press can work with coil sheet roller feeder to act as an automatic press. Several automatio presses with transfer system such as manipulators can work as full automatic press line.
World produce the flywheel, the drive shaft, the gear ring and assemble the clutch with imported friction discs and seals. The friction discs are oil bath which is better for lubrication and cooling. All clutches must pass temperature testing and weight balance testing. Wet clutch has the benefits such as longer service life, lower noise, cheaper maintenance cost and easier maintenance, comparing to dry type clutch. Especially for house hold appliance parts stamping due to more strict cleaness request.
Programmable logistic control system is standard equip to all world brand automatic power presses. Schneider. Omron, Panasonic are all available. Automatic grease lubrication pump is also controlled by the PLC and aperator can set the lubrication time and frequency through the HMI. The press can work as inches, single stroke and continuous strokes. There is an emergency stop button on the control panel for emergency using. Press working status could be checked through the HMl too.
World press uses hydraulic overload protection system instead of conventional mechanical shearing plate with higher reliability and more.sensitive action. If wrong operation or press overload, the high pressure hydraulic oil under the bowl will return to the overload pump oil tank. Meantime a signal will be sent to the press and the press will stop immediately to protect the die and the pneumatic power press.There is a reset switch on the control panel and the overload pump will pump the hydraulic oil back to the ram. Press will be ready again for operation.
Compact stucture of the C type press
- 1. Cross located crankshaf
- 2. Motor and clutch are on the back
- 3. Two slide balance cylinders
- 4. C frame steel welded body, annealing treatment
- 5. Overload pump, grease pump and pneumatic system are all in the back
Lenathened rectanqular type six faces ram slides with bronze plates fixed on the press body. Higher precision and longer surface life.Guide gaps could be adjusted by the bolts in the front. All the rams are casting in world factory and machining by cnc milling center.Automatic qrease lubrication system provides proper lubricant for the quides. Reliable, stable and lower noise.
ITEM | CODE | UNIT | JH21-25 | JH21-45 | JH21-60 | JH21-80 | JH21-100 | JH21-125 | JH21-160 | JH21-200 | JH21-250 | JH21-315 | JH21-400 | |
Nominal Capacity | Pe | KN | 250 | 450 | 600 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | |
Slide Stroke Length | S | mm | 80 | 120 | 140 | 160 | 160 | 180 | 200 | 220 | 220 | 220 | 250 | |
Slide Strokes | Fixed | spm | 100 | 80 | 70 | 60 | 55 | 50 | 45 | 45 | 30 | 30 | 30 | |
Variable(optional) | spm | 60-120 | 50-95 | 45-85 | 40-75 | 35-65 | 35-65 | 30-55 | 30-55 | 20-35 | 20-35 | 20-35 | ||
Max. Die Shut Height | H2 | mm | 250 | 270 | 300 | 320 | 335 | 350 | 400 | 450 | 500 | 500 | 550 | |
Die Shut Height Adjustment | t | mm | 50 | 60 | 70 | 80 | 90 | 90 | 100 | 110 | 120 | 120 | 120 | |
Throat Depth | C1 | mm | 210 | 225 | 270 | 310 | 330 | 350 | 400 | 430 | 450 | 450 | 490 | |
Distance Between Uprights | d1 | mm | 450 | 515 | 560 | 610 | 670 | 670 | 736 | 910 | 980 | 980 | 1050 | |
Slide Bottom Size | FB | b | mm | 250 | 340 | 400 | 460 | 520 | 520 | 580 | 650 | 700 | 700 | 750 |
LR | a | mm | 360 | 410 | 480 | 540 | 620 | 620 | 700 | 880 | 950 | 950 | 1020 | |
Shank Hole Size | Diameter | d | mm | 40 | 50 | 50 | 50 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
Depth | I | mm | 65 | 60 | 70 | 65 | 90 | 90 | 100 | 100 | 130 | 130 | 130 | |
Table Size | FB | D | mm | 400 | 440 | 520 | 600 | 640 | 680 | 760 | 840 | 880 | 880 | 950 |
LR | C | mm | 720 | 825 | 930 | 950 | 1060 | 1100 | 1175 | 1390 | 1500 | 1540 | 1700 | |
Thickness | H3 | mm | 80 | 110 | 130 | 140 | 145 | 155 | 165 | 180 | 190 | 190 | 210 | |
Table Hole Diameter | ¢ | mm | 150 | 150 | 150 | 180 | 180 | 200 | 220 | 240 | 260 | 260 | 280 | |
Overall Dimensions | FB | A | mm | 1500 | 1585 | 1540 | 1765 | 2000 | 2040 | 2305 | 2600 | 2660 | 2720 | 2850 |
LR | B | mm | 945 | 1075 | 1200 | 1200 | 1300 | 1320 | 1420 | 1540 | 1640 | 1680 | 1750 | |
Height | H | mm | 2120 | 2390 | 2570 | 2725 | 3010 | 3035 | 3215 | 3800 | 3850 | 3850 | 4140 | |
Motor Power | KW | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | ||
Weight(approximate) | kg | 2450 | 3550 | 5150 | 6450 | 8650 | 9550 | 13600 | 19200 | 23200 | 26600 | 29500 | ||
Company Features
· Through the years, Shanghai Yingxin World Machinery Co., Ltd. has been a qualified manufacturer and supplier of c power press. We are engaged in product design and production.
· The factory has established a total quality control system. We prevent errors or avoid inferior products by early detection and action by strictly complying with this system. The factory operates effectively under the guidelines of the production management system. This system enables us to detect the error by monitoring the production process and assists us in meeting clients' high standards.
· World Press Machine strives to become the excellent provider of the c power press solutions. Check now!
Product Details
In order to know c power press better, Yingxin will show you the specific details in the following section.
Application of the Product
The c power press produced by Yingxin has a wide range of applications.
Yingxin provides comprehensive and reasonable solutions based on customer's specific situations and needs.
